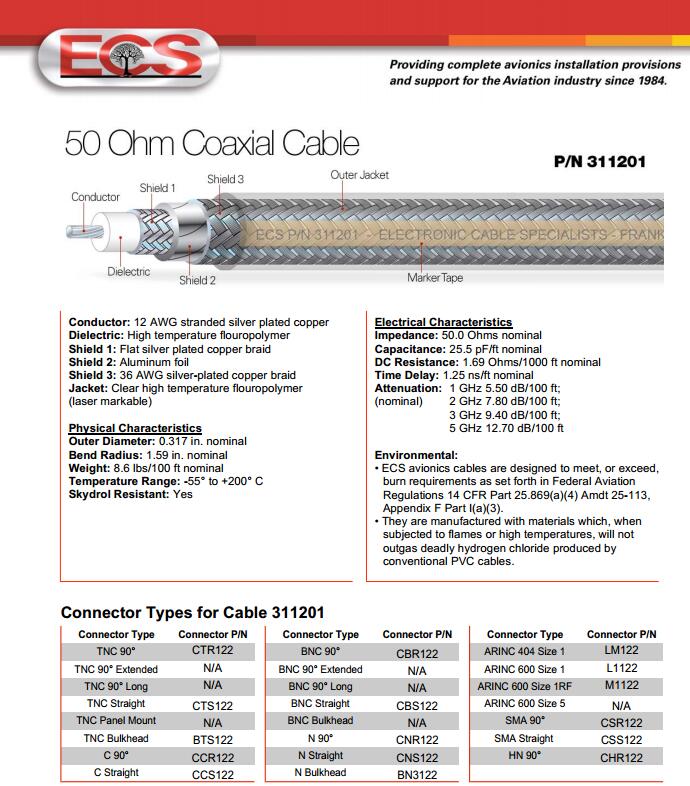

ECS-P/N 311201

Dielectric:High temperature flouropolymer

Shield 1:Flat silver plated copper braid

Shield 2:Aluminum foil

Shield 3:36 AWG silver-plated copper braid

Jacket:Clear high temperature flouropolymer

(laser markable)

Physical Characteristics

Outer Diameter:0.317 in. nominal

Bend Radius:1.59 in. nominal

Weight:8.6 lbs/100 ft nominal

Temperature Range:-55° to +200° C

Skydrol Resistant:Yes

Electrical Characteristics

Impedance:50.0 Ohms nominal

Capacitance:25.5 pF/ft nominal

DC Resistance:1.69 Ohms/1000 ft nominal

Time Delay:1.25 ns/ft nominal

Attenuation: 1 GHz 5.50 dB/100 ft;

(nominal)    2 GHz 7.80 dB/100 ft;

3 GHz 9.40 dB/100 ft;

5 GHz 12.70 dB/100 ft

Environmental:

• ECS avionics cables are designed to meet, or exceed,

 burn requirements as set forth in Federal Aviation

 Regulations 14 CFR Part 25.869(a)(4) Amdt 25-113,

 Appendix F Part I(a)(3).

• They are manufactured with materials which, when

 subjected to flames or high temperatures, will not

 outgas deadly hydrogen chloride produced by

 conventional PVC cables.

Connector Type Connector P/N Connector Type Connector P/N Connector Type Connector P/N
TNC 90° CTR122 BNC 90° CBR122 ARINC 404 Size 1 LM122
TNC 90° Extended N/A BNC 90° Extended N/A ARINC 600 Size 1 L1122
TNC 90° Long N/A BNC 90° Long N/A ARINC 600 Size 1RF M1122
TNC Straight CTS122 BNC Straight CBS122 ARINC 600 Size 5 N/A
TNC Panel Mount N/A BNC Bulkhead N/A SMA 90° CSR122
TNC Bulkhead BTS122 N 90° CNR122 SMA Straight  CSS122
C 90° CCR122 N Straight CNS122 HN 90° CHR122
C Straight CCS122 N Bulkhead BN3122
