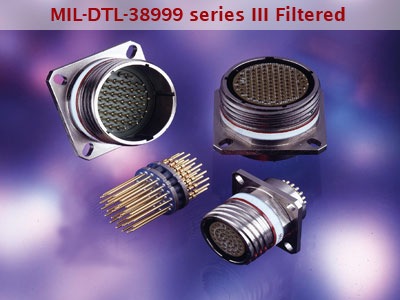

Standard Aerospace & Military Connectors MIL-DTL-38999 Series III / EN3645
Description
The 8D series is a highly reliable connector compliant to the main standards (MIL-DTL-38999 series III, EN3645, BACC63) and answer the most stringent requirements in harsh environments.
Available in 5 high end materials and 5 platings (8D aluminum, 8D composite, 8D titanium, 8D stainless steel and 8D bronze), the 8D series connectors fit all the corrosion, shock, endurance or firewall capability you will encounter.
A full range of contacts are also available with 8D connectors such as signal transmission, high speed data transmission (quadrax, twinax, coax, ELIO?). 54 QPL layouts are available in accordance with MIL-STD-1560.
The 8D series is compliant with the MIL standard connector design with unique self-locking mechanism (patented by SOURIAU), visual mating indication, scoop proof, quick screw coupling and 360° shielding. The patented self-locking system and the metallic contact retention clip technology make the product perfect for high vibration applications or rough handling in the field.
8D connectors offer concrete RoHS alternative to cadmium. Esterline Connection Technologies - SOURIAU has more than 10 years of experience in producing Zn Ni with continuous improvements to comply with military and aerospace harsh environment conditions. Our Zn Ni connectors are the first one to be qualified by US Defense standards organization (DLA Land and Maritime). It provides the most cost effective solution for a cadmium alternative finish.
Technical Data
Self-locking coupling mechanism
Contact protection
Quick coupling - 11/4 turn to mate
Visual mating indication
EMI shielding
D38999, EN3645 or BACC63 standard part numbering
8D part numbering for commercial cost effective solution
该系列圆形电连接器符合(MIL-DTL-D38999) Ⅲ系列的要求,在微小的圆形外壳内提供高密度的接点布置.采用三头螺纹快速连接,并带防松脱机构,具有体积小,重量轻,接触件密度高,电磁屏蔽功能,接触件压接可取卸,插针防斜插等特点。
D38999
D38999/20F
D38999/20W
D38999/24F
D38999/24W
D38999/26F
D38999/26W
D38999+Cable
本产品具有防火壳体(有铝合金壳体/海军铜/不锈钢三种壳体)和多种镀层,具有高温下的高强度振动特性,适合在恶劣的风沙和潮湿的场合下使用。这些圆形连接器最初设计满足军用和商业飞行器的高性能要求,现在理想用于要求极度可靠之互连的环境。
电气特性
接触件接触电阻及额定电流:
接触件规格 工作直径 (mm) 接触电阻 (mΩ) 额定电流 (A)
22D# Φ 0.76 ≤ 12.0 5.0
20# Φ 1.00 ≤ 5.0 7.5
16# Φ 1.60 ≤ 2.5 13.0
12# Φ 2.40 ≤ 1.5 23.0
10# Φ 3.15 ≤ 1.0 40.0
屏蔽性:
在 1GHz: 最低衰减 85dB (F and W) ;
在 10GHz: 最低衰减 65dB (F);
在 10GHz: 最低衰减 50dB (W)
J类和M类在100GHz下为90dB,1GHz下为85dB
耐电压 (V):
使用等级 M I II N
海平面 1300 1800 2300 1000
21000m 高度 800 1000 1000 600
绝缘电阻
正常条件≥5000 MΩ(500Vdc下), 高温高湿≥100 MΩ
壳体电电连续性:
W 类 ≤ 2.5 mΩ, F 类 ≤ 1.0 mΩ, K 类 ≤ 5.0 mΩ
J类:3mΩ M类:3mΩ
机械特性
外壳:铝合金、不锈钢或铜合金
壳体镀层:
W 类: 镀镉军绿色
K 类: 不锈钢钝化
F class: 化学镀镍
绝缘体: 热塑性材料或热固体材料
封线体和密封圈: 硅橡胶
接触件:铜合金镀金
机械寿命:插拔≥500次 插拔≥1500次(J类和M类)
振动:正弦振动:60g, 并带温度循环和模拟附件(36小时)
随机振动:在高温下为44.1grms
在环境温度下为49.5 grms
冲击:3ms 半正弦波 加速度峰值300g
接触件的保持性:
22D#, 45N 20#, 67N 16#, 111N 12#, 111N 10#, 111N 8#, 111N
使用环境条件
温度范围:
W 类: -65 ℃~ +175 ℃
J 类: -65 ℃ ~ +175 ℃
M 类: -65 ℃ ~ +200 ℃
K, F 类: -65 ℃ ~ +200 ℃
密封:插配连接器符合MIL-DTL-38999K低气压浸渍的要求
盐雾:参照MIL-DTL-38999中方法 2000 h
F 类 48h ;
W 类 500h ;
K 类 1000h .
湿热:按MIL-DTL-38999K 24 小时10次循环
耐液:耐多种燃料、冷却剂和溶剂
