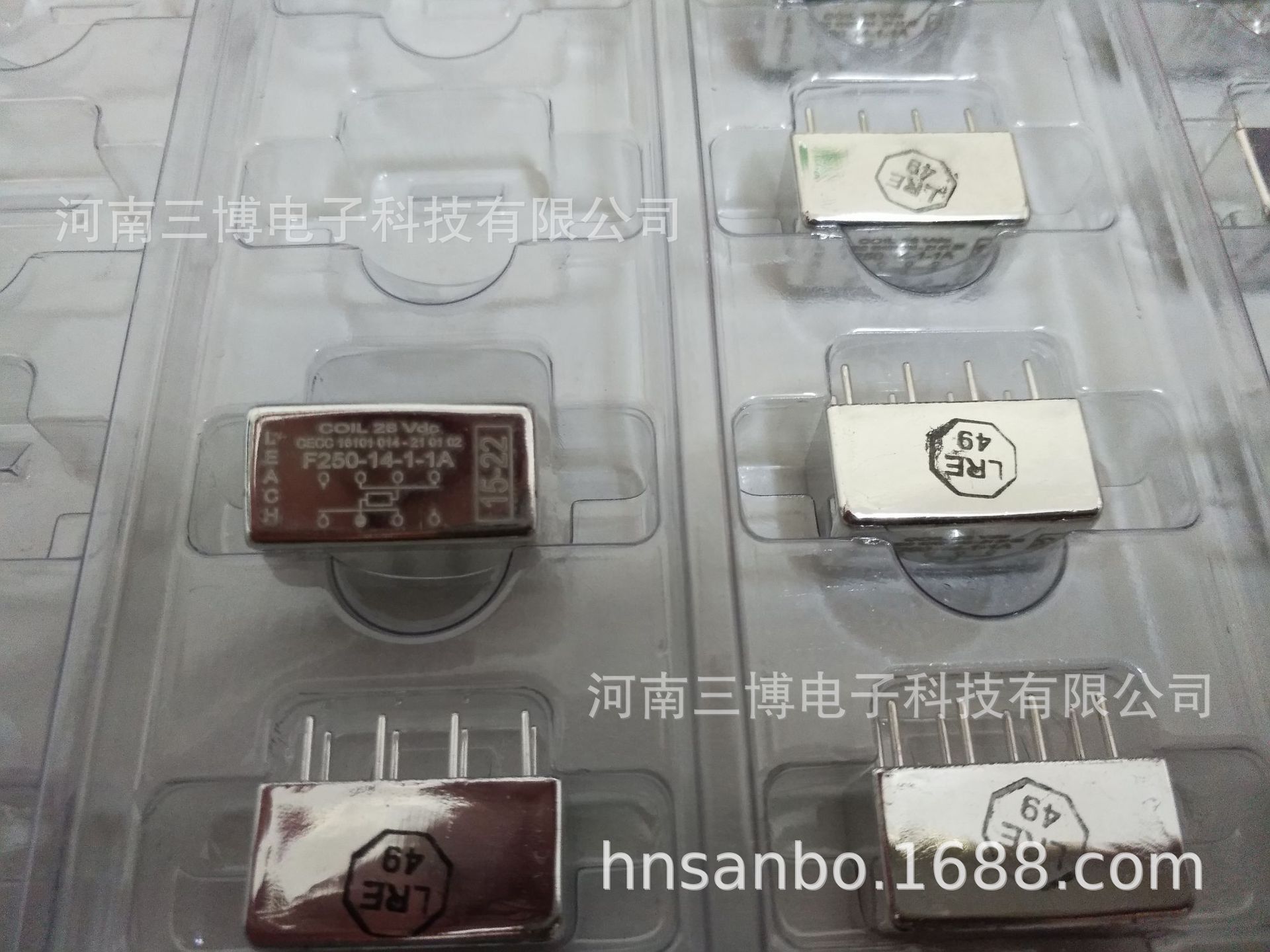

F250-14-1-1-A
Part #: F250-14-1-1-A
Part Category: Relays
Manufacturer: Esterline Technologies Corporation
Description: Power/Signal Relay, DPDT, Momentary, 0.03A (Coil), 28VDC (Coil), 840mW (Coil), 2A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount
SPECIFICATIONS
SPECIFICATIONS
Status Contact Mfr
Relay Type POWER/SIGNAL RELAY
Body Breadth 10.5 mm
Body Height 10.4 mm
Body Length or Diameter 20.6 mm
Coil Current(DC)-Max 0.03 A
Coil/Input Supply Type DC
Coil Operate Voltage(DC) 21.0 V
Coil Power (mW) 840
Coil Release Voltage(DC) 1.0 V
Coil Resistance 935.0 ohm
Coil Voltage(DC)-Max 28.0 V
Contact AC Max Rating R Load .3A@115VAC
Contact Current(AC)-Max 0.3 A
Contact Current(DC)-Max 2.0 A
Contact DC Max Rating R Load 2A@28VDC
Contact/Output Supply Type AC/DC
Contact Voltage(AC)-Max 115.0 V
Contact Voltage(DC)-Max 28.0 V
Electrical Life 100000.0 Cycle(s)
Mounting Feature SOCKET MOUNT
Operate Time 6.5 ms
Operating Temperature-Min -65.0 Cel
Operating Temperature-Max 125.0 Cel
Physical Dimension 20.6mm x 10.5mm x 10.4mm
Reference Standard MIL-R-39016/6
Relay Action MOMENTARY
Relay Function DPDT
Release Time 6.5 ms
Sealing HERMETICALLY SEALED
Termination Type SNAP-ON
