Nexans Space cables

信息来源：三博电子作者：三博电子时间：2018/11/23

Nexans Space cables

耐克森航空航天电缆

耐克森是电缆行业的全球领导者。在一系列先进的铜缆和光纤电缆解决方案方面，耐克森集团在全球范围你为社会带来了广泛的影响。nexans产品广泛适用于基础设施，工业。耐克森电缆和设备系统可以在人们生活的各个领域找到，电信和能源网络到航空，航天，汽车，建筑，石化，医疗应用等。耐克森在20多个国家开展业务，拥有19,000名员工，并有销售业务在2000年达到欧元48亿欧元。

ESCC Qualified Products英电气标准协调委员会认证产品点击此处查看产品技术文档
Nexans P/N耐克森料号	ESCC 电气标准协调委员会料号
1871 -871	3901/001
1872 -872	3901/002
MTV -BTV	3901/013
50 CIS	3902/001.01
50 CIS DTR	3902/001.02
50 CIS BLG	3902/001.03

CNES Project Approval法国国家太空研究中心项目批准料号
Nexans P/N	BEP
1995 -995	5691
1996	5685

Filotex®
SP 359
Type : 1871 -871
SPACE CABLES POLYIMIDE INSULATED

SP 359
型号：1871 -871
空间电缆聚酰亚胺绝缘
正常重量

LINE OF PRODUCTS

1871/871

1872/872

These cables are intended for space use and could be

manufactured with different control levels :

-AQ, AQR or AQS for Space use or

-P for standard use, out of space field

Electrical Characteristics

ßVoltage Rating : 600 V. RMS.

ßVoltage Test : 100 % Impulse test

Immersion test on sample

ß Insulation resistance (500 V = 1 mn)

> 750 MWx Km. at 20°C

ßInsulation resistance (25 mm between Electrodes)

> 125 MWx mm

ßSpiral shield with OFHC SPC -Coverage Factor : > 92%

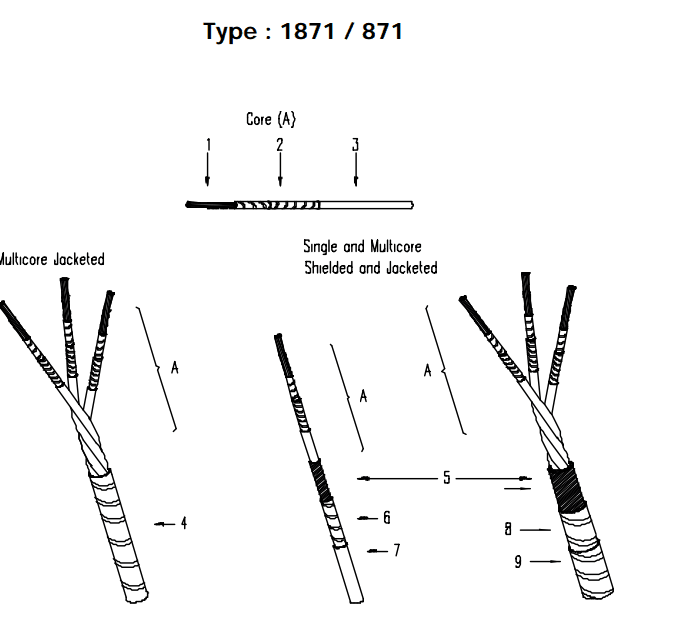

CONSTRUCTION
Cores :
1、 Stranded conductors OFHC
Silver Plated Copper or
Copper Alloy (28 to 24 AWG)
Silver thickness ≥2 μm.
2、 Wrapped polyimide insulation
3、 Mechanical polyimide coating
protection.
Above cores could be :
4、 Twisted with an overall polyimide
jacket.
Shielded and jacketed with one or more
cores :
5、 Spiral shield.
Overall jacket :
Single conductors :
6、 FEP coated polyimide tape.
7、 FEP colored topcoat.
Multiconductors :
8、 FEP coated polyimide tape.
9、 Sintered PTFE tape.
(See details on next page)
Type : 1871 / 871
LINE OF PRODUCTS
1871 / 871
1872 / 872

完整型号列表

1871-1-12- AQS

1871-1-12- AQR

1871-1-12- AQ

1871-1-12- P

1871-1-12-GAQS

1871-1-12-GAQR

1871-1-12-GAQ

1871-1-12-GP

1871-1-12-HAQS

1871-1-12-HAQR

1871-1-12-HAQ

1871-1-12-HP

1871-1-12-BIAQS

1871-1-12-BIAQR

1871-1-12-BIAQ

1871-1-12-BIP

1871-1-14- AQS

1871-1-14- AQR

1871-1-14- AQ

1871-1-14- P

1871-1-14-GAQS

1871-1-14-GAQR

1871-1-14-GAQ

1871-1-14-GP

1871-1-14-HAQS

1871-1-14-HAQR

1871-1-14-HAQ

1871-1-14-HP

1871-1-14-BIAQS

1871-1-14-BIAQR

1871-1-14-BIAQ

1871-1-14-BIP

1871-1-16- AQS

1871-1-16- AQR

1871-1-16- AQ

1871-1-16- P

1871-1-16-GAQS

1871-1-16-GAQR

1871-1-16-GAQ

1871-1-16-GP

1871-1-16-HAQS

1871-1-16-HAQR

1871-1-16-HAQ

1871-1-16-HP

1871-1-16-BIAQS

1871-1-16-BIAQR

1871-1-16-BIAQ

1871-1-16-BIP

1871-1-18- AQS

1871-1-18- AQR

1871-1-18- AQ

1871-1-18- P

1871-1-18-GAQS

1871-1-18-GAQR

1871-1-18-GAQ

1871-1-18-GP

1871-1-18-HAQS

1871-1-18-HAQR

1871-1-18-HAQ

1871-1-18-HP

1871-1-18-BIAQS

1871-1-18-BIAQR

1871-1-18-BIAQ

1871-1-18-BIP

1871-1-20- AQS

1871-1-20- AQR

1871-1-20- AQ

1871-1-20- P

1871-1-20-GAQS

1871-1-20-GAQR

1871-1-20-GAQ

1871-1-20-GP

1871-1-20-HAQS

1871-1-20-HAQR

1871-1-20-HAQ

1871-1-20-HP

1871-1-20-BIAQS

1871-1-20-BIAQR

1871-1-20-BIAQ

1871-1-20-BIP

1871-1-22- AQS

1871-1-22- AQR

1871-1-22- AQ

1871-1-22- P

1871-1-22-GAQS

1871-1-22-GAQR

1871-1-22-GAQ

1871-1-22-GP

1871-1-22-HAQS

1871-1-22-HAQR

1871-1-22-HAQ

1871-1-22-HP

1871-1-22-BIAQS

1871-1-22-BIAQR

1871-1-22-BIAQ

1871-1-22-BIP

1871-1-24- AQS

1871-1-24- AQR

1871-1-24- AQ

1871-1-24- P

1871-1-24-GAQS

1871-1-24-GAQR

1871-1-24-GAQ

1871-1-24-GP

1871-1-24-HAQS

1871-1-24-HAQR

1871-1-24-HAQ

1871-1-24-HP

1871-1-24-BIAQS

1871-1-24-BIAQR

1871-1-24-BIAQ

1871-1-24-BIP

1871-1-26- AQS

1871-1-26- AQR

1871-1-26- AQ

1871-1-26- P

1871-1-26-GAQS

1871-1-26-GAQR

1871-1-26-GAQ

1871-1-26-GP

1871-1-26-HAQS

1871-1-26-HAQR

1871-1-26-HAQ

1871-1-26-HP

1871-1-26-BIAQS

1871-1-26-BIAQR

1871-1-26-BIAQ

1871-1-26-BIP

1871-1-28- AQS

1871-1-28- AQR

1871-1-28- AQ

1871-1-28- P

1871-1-28-GAQS

1871-1-28-GAQR

1871-1-28-GAQ

1871-1-28-GP

1871-1-28-HAQS

1871-1-28-HAQR

1871-1-28-HAQ

1871-1-28-HP

1871-1-28-BIAQS

1871-1-28-BIAQR

1871-1-28-BIAQ

1871-1-28-BIP

1871-2-12- AQS

1871-2-12- AQR

1871-2-12- AQ

1871-2-12- P

1871-2-12-GAQS

1871-2-12-GAQR

1871-2-12-GAQ

1871-2-12-GP

1871-2-12-HAQS

1871-2-12-HAQR

1871-2-12-HAQ

1871-2-12-HP

1871-2-12-BIAQS

1871-2-12-BIAQR

1871-2-12-BIAQ

1871-2-12-BIP

1871-2-14- AQS

1871-2-14- AQR

1871-2-14- AQ

1871-2-14- P

1871-2-14-GAQS

1871-2-14-GAQR

1871-2-14-GAQ

1871-2-14-GP

1871-2-14-HAQS

1871-2-14-HAQR

1871-2-14-HAQ

1871-2-14-HP

1871-2-14-BIAQS

1871-2-14-BIAQR

1871-2-14-BIAQ

1871-2-14-BIP

1871-2-16- AQS

1871-2-16- AQR

1871-2-16- AQ

1871-2-16- P

1871-2-16-GAQS

1871-2-16-GAQR

1871-2-16-GAQ

1871-2-16-GP

1871-2-16-HAQS

1871-2-16-HAQR

1871-2-16-HAQ

1871-2-16-HP

1871-2-16-BIAQS

1871-2-16-BIAQR

1871-2-16-BIAQ

1871-2-16-BIP

1871-2-18- AQS

1871-2-18- AQR

1871-2-18- AQ

1871-2-18- P

1871-2-18-GAQS

1871-2-18-GAQR

1871-2-18-GAQ

1871-2-18-GP

1871-2-18-HAQS

1871-2-18-HAQR

1871-2-18-HAQ

1871-2-18-HP

1871-2-18-BIAQS

1871-2-18-BIAQR

1871-2-18-BIAQ

1871-2-18-BIP

1871-2-20- AQS

1871-2-20- AQR

1871-2-20- AQ

1871-2-20- P

1871-2-20-GAQS

1871-2-20-GAQR

1871-2-20-GAQ

1871-2-20-GP

1871-2-20-HAQS

1871-2-20-HAQR

1871-2-20-HAQ

1871-2-20-HP

1871-2-20-BIAQS

1871-2-20-BIAQR

1871-2-20-BIAQ

1871-2-20-BIP

1871-2-22- AQS

1871-2-22- AQR

1871-2-22- AQ

1871-2-22- P

1871-2-22-GAQS

1871-2-22-GAQR

1871-2-22-GAQ

1871-2-22-GP

1871-2-22-HAQS

1871-2-22-HAQR

1871-2-22-HAQ

1871-2-22-HP

1871-2-22-BIAQS

1871-2-22-BIAQR

1871-2-22-BIAQ

1871-2-22-BIP

1871-2-24- AQS

1871-2-24- AQR

1871-2-24- AQ

1871-2-24- P

1871-2-24-GAQS

1871-2-24-GAQR

1871-2-24-GAQ

1871-2-24-GP

1871-2-24-HAQS

1871-2-24-HAQR

1871-2-24-HAQ

1871-2-24-HP

1871-2-24-BIAQS

1871-2-24-BIAQR

1871-2-24-BIAQ

1871-2-24-BIP

1871-2-26- AQS

1871-2-26- AQR

1871-2-26- AQ

1871-2-26- P

1871-2-26-GAQS

1871-2-26-GAQR

1871-2-26-GAQ

1871-2-26-GP

1871-2-26-HAQS

1871-2-26-HAQR

1871-2-26-HAQ

1871-2-26-HP

1871-2-26-BIAQS

1871-2-26-BIAQR

1871-2-26-BIAQ

1871-2-26-BIP

1871-2-28- AQS

1871-2-28- AQR

1871-2-28- AQ

1871-2-28- P

1871-2-28-GAQS

1871-2-28-GAQR

1871-2-28-GAQ

1871-2-28-GP

1871-2-28-HAQS

1871-2-28-HAQR

1871-2-28-HAQ

1871-2-28-HP

1871-2-28-BIAQS

1871-2-28-BIAQR

1871-2-28-BIAQ

1871-2-28-BIP

1871-3-12- AQS

1871-3-12- AQR

1871-3-12- AQ

1871-3-12- P

1871-3-12-GAQS

1871-3-12-GAQR

1871-3-12-GAQ

1871-3-12-GP

1871-3-12-HAQS

1871-3-12-HAQR

1871-3-12-HAQ

1871-3-12-HP

1871-3-12-BIAQS

1871-3-12-BIAQR

1871-3-12-BIAQ

1871-3-12-BIP

1871-3-14- AQS

1871-3-14- AQR

1871-3-14- AQ

1871-3-14- P

1871-3-14-GAQS

1871-3-14-GAQR

1871-3-14-GAQ

1871-3-14-GP

1871-3-14-HAQS

1871-3-14-HAQR

1871-3-14-HAQ

1871-3-14-HP

1871-3-14-BIAQS

1871-3-14-BIAQR

1871-3-14-BIAQ

1871-3-14-BIP

1871-3-16- AQS

1871-3-16- AQR

1871-3-16- AQ

1871-3-16- P

1871-3-16-GAQS

1871-3-16-GAQR

1871-3-16-GAQ

1871-3-16-GP

1871-3-16-HAQS

1871-3-16-HAQR

1871-3-16-HAQ

1871-3-16-HP

1871-3-16-BIAQS

1871-3-16-BIAQR

1871-3-16-BIAQ

1871-3-16-BIP

1871-3-18- AQS

1871-3-18- AQR

1871-3-18- AQ

1871-3-18- P

1871-3-18-GAQS

1871-3-18-GAQR

1871-3-18-GAQ

1871-3-18-GP

1871-3-18-HAQS

1871-3-18-HAQR

1871-3-18-HAQ

1871-3-18-HP

1871-3-18-BIAQS

1871-3-18-BIAQR

1871-3-18-BIAQ

1871-3-18-BIP

1871-3-20- AQS

1871-3-20- AQR

1871-3-20- AQ

1871-3-20- P

1871-3-20-GAQS

1871-3-20-GAQR

1871-3-20-GAQ

1871-3-20-GP

1871-3-20-HAQS

1871-3-20-HAQR

1871-3-20-HAQ

1871-3-20-HP

1871-3-20-BIAQS

1871-3-20-BIAQR

1871-3-20-BIAQ

1871-3-20-BIP

1871-3-22- AQS

1871-3-22- AQR

1871-3-22- AQ

1871-3-22- P

1871-3-22-GAQS

1871-3-22-GAQR

1871-3-22-GAQ

1871-3-22-GP

1871-3-22-HAQS

1871-3-22-HAQR

1871-3-22-HAQ

1871-3-22-HP

1871-3-22-BIAQS

1871-3-22-BIAQR

1871-3-22-BIAQ

1871-3-22-BIP

1871-3-24- AQS

1871-3-24- AQR

1871-3-24- AQ

1871-3-24- P

1871-3-24-GAQS

1871-3-24-GAQR

1871-3-24-GAQ

1871-3-24-GP

1871-3-24-HAQS

1871-3-24-HAQR

1871-3-24-HAQ

1871-3-24-HP

1871-3-24-BIAQS

1871-3-24-BIAQR

1871-3-24-BIAQ

1871-3-24-BIP

1871-3-26- AQS

1871-3-26- AQR

1871-3-26- AQ

1871-3-26- P

1871-3-26-GAQS

1871-3-26-GAQR

1871-3-26-GAQ

1871-3-26-GP

1871-3-26-HAQS

1871-3-26-HAQR

1871-3-26-HAQ

1871-3-26-HP

1871-3-26-BIAQS

1871-3-26-BIAQR

1871-3-26-BIAQ

1871-3-26-BIP

1871-3-28- AQS

1871-3-28- AQR

1871-3-28- AQ

1871-3-28- P

1871-3-28-GAQS

1871-3-28-GAQR

1871-3-28-GAQ

1871-3-28-GP

1871-3-28-HAQS

1871-3-28-HAQR

1871-3-28-HAQ

1871-3-28-HP

1871-3-28-BIAQS

1871-3-28-BIAQR

1871-3-28-BIAQ

1871-3-28-BIP

871-1-12- AQS

871-1-12- AQR

871-1-12- AQ

871-1-12- P

871-1-12-GAQS

871-1-12-GAQR

871-1-12-GAQ

871-1-12-GP

871-1-12-HAQS

871-1-12-HAQR

871-1-12-HAQ

871-1-12-HP

871-1-12-BIAQS

871-1-12-BIAQR

871-1-12-BIAQ

871-1-12-BIP

871-1-14- AQS

871-1-14- AQR

871-1-14- AQ

871-1-14- P

871-1-14-GAQS

871-1-14-GAQR

871-1-14-GAQ

871-1-14-GP

871-1-14-HAQS

871-1-14-HAQR

871-1-14-HAQ

871-1-14-HP

871-1-14-BIAQS

871-1-14-BIAQR

871-1-14-BIAQ

871-1-14-BIP

871-1-16- AQS

871-1-16- AQR

871-1-16- AQ

871-1-16- P

871-1-16-GAQS

871-1-16-GAQR

871-1-16-GAQ

871-1-16-GP

871-1-16-HAQS

871-1-16-HAQR

871-1-16-HAQ

871-1-16-HP

871-1-16-BIAQS

871-1-16-BIAQR

871-1-16-BIAQ

871-1-16-BIP

871-1-18- AQS

871-1-18- AQR

871-1-18- AQ

871-1-18- P

871-1-18-GAQS

871-1-18-GAQR

871-1-18-GAQ

871-1-18-GP

871-1-18-HAQS

871-1-18-HAQR

871-1-18-HAQ

871-1-18-HP

871-1-18-BIAQS

871-1-18-BIAQR

871-1-18-BIAQ

871-1-18-BIP

871-1-20- AQS

871-1-20- AQR

871-1-20- AQ

871-1-20- P

871-1-20-GAQS

871-1-20-GAQR

871-1-20-GAQ

871-1-20-GP

871-1-20-HAQS

871-1-20-HAQR

871-1-20-HAQ

871-1-20-HP

871-1-20-BIAQS

871-1-20-BIAQR

871-1-20-BIAQ

871-1-20-BIP

871-1-22- AQS

871-1-22- AQR

871-1-22- AQ

871-1-22- P

871-1-22-GAQS

871-1-22-GAQR

871-1-22-GAQ

871-1-22-GP

871-1-22-HAQS

871-1-22-HAQR

871-1-22-HAQ

871-1-22-HP

871-1-22-BIAQS

871-1-22-BIAQR

871-1-22-BIAQ

871-1-22-BIP

871-1-24- AQS

871-1-24- AQR

871-1-24- AQ

871-1-24- P

871-1-24-GAQS

871-1-24-GAQR

871-1-24-GAQ

871-1-24-GP

871-1-24-HAQS

871-1-24-HAQR

871-1-24-HAQ

871-1-24-HP

871-1-24-BIAQS

871-1-24-BIAQR

871-1-24-BIAQ

871-1-24-BIP

871-1-26- AQS

871-1-26- AQR

871-1-26- AQ

871-1-26- P

871-1-26-GAQS

871-1-26-GAQR

871-1-26-GAQ

871-1-26-GP

871-1-26-HAQS

871-1-26-HAQR

871-1-26-HAQ

871-1-26-HP

871-1-26-BIAQS

871-1-26-BIAQR

871-1-26-BIAQ

871-1-26-BIP

871-1-28- AQS

871-1-28- AQR

871-1-28- AQ

871-1-28- P

871-1-28-GAQS

871-1-28-GAQR

871-1-28-GAQ

871-1-28-GP

871-1-28-HAQS

871-1-28-HAQR

871-1-28-HAQ

871-1-28-HP

871-1-28-BIAQS

871-1-28-BIAQR

871-1-28-BIAQ

871-1-28-BIP

871-2-12- AQS

871-2-12- AQR

871-2-12- AQ

871-2-12- P

871-2-12-GAQS

871-2-12-GAQR

871-2-12-GAQ

871-2-12-GP

871-2-12-HAQS

871-2-12-HAQR

871-2-12-HAQ

871-2-12-HP

871-2-12-BIAQS

871-2-12-BIAQR

871-2-12-BIAQ

871-2-12-BIP

871-2-14- AQS

871-2-14- AQR

871-2-14- AQ

871-2-14- P

871-2-14-GAQS

871-2-14-GAQR

871-2-14-GAQ

871-2-14-GP

871-2-14-HAQS

871-2-14-HAQR

871-2-14-HAQ

871-2-14-HP

871-2-14-BIAQS

871-2-14-BIAQR

871-2-14-BIAQ

871-2-14-BIP

871-2-16- AQS

871-2-16- AQR

871-2-16- AQ

871-2-16- P

871-2-16-GAQS

871-2-16-GAQR

871-2-16-GAQ

871-2-16-GP

871-2-16-HAQS

871-2-16-HAQR

871-2-16-HAQ

871-2-16-HP

871-2-16-BIAQS

871-2-16-BIAQR

871-2-16-BIAQ

871-2-16-BIP

871-2-18- AQS

871-2-18- AQR

871-2-18- AQ

871-2-18- P

871-2-18-GAQS

871-2-18-GAQR

871-2-18-GAQ

871-2-18-GP

871-2-18-HAQS

871-2-18-HAQR

871-2-18-HAQ

871-2-18-HP

871-2-18-BIAQS

871-2-18-BIAQR

871-2-18-BIAQ

871-2-18-BIP

871-2-20- AQS

871-2-20- AQR

871-2-20- AQ

871-2-20- P

871-2-20-GAQS

871-2-20-GAQR

871-2-20-GAQ

871-2-20-GP

871-2-20-HAQS

871-2-20-HAQR

871-2-20-HAQ

871-2-20-HP

871-2-20-BIAQS

871-2-20-BIAQR

871-2-20-BIAQ

871-2-20-BIP

871-2-22- AQS

871-2-22- AQR

871-2-22- AQ

871-2-22- P

871-2-22-GAQS

871-2-22-GAQR

871-2-22-GAQ

871-2-22-GP

871-2-22-HAQS

871-2-22-HAQR

871-2-22-HAQ

871-2-22-HP

871-2-22-BIAQS

871-2-22-BIAQR

871-2-22-BIAQ

871-2-22-BIP

871-2-24- AQS

871-2-24- AQR

871-2-24- AQ

871-2-24- P

871-2-24-GAQS

871-2-24-GAQR

871-2-24-GAQ

871-2-24-GP

871-2-24-HAQS

871-2-24-HAQR

871-2-24-HAQ

871-2-24-HP

871-2-24-BIAQS

871-2-24-BIAQR

871-2-24-BIAQ

871-2-24-BIP

871-2-26- AQS

871-2-26- AQR

871-2-26- AQ

871-2-26- P

871-2-26-GAQS

871-2-26-GAQR

871-2-26-GAQ

871-2-26-GP

871-2-26-HAQS

871-2-26-HAQR

871-2-26-HAQ

871-2-26-HP

871-2-26-BIAQS

871-2-26-BIAQR

871-2-26-BIAQ

871-2-26-BIP

871-2-28- AQS

871-2-28- AQR

871-2-28- AQ

871-2-28- P

871-2-28-GAQS

871-2-28-GAQR

871-2-28-GAQ

871-2-28-GP

871-2-28-HAQS

871-2-28-HAQR

871-2-28-HAQ

871-2-28-HP

871-2-28-BIAQS

871-2-28-BIAQR

871-2-28-BIAQ

871-2-28-BIP

871-3-12- AQS

871-3-12- AQR

871-3-12- AQ

871-3-12- P

871-3-12-GAQS

871-3-12-GAQR

871-3-12-GAQ

871-3-12-GP

871-3-12-HAQS

871-3-12-HAQR

871-3-12-HAQ

871-3-12-HP

871-3-12-BIAQS

871-3-12-BIAQR

871-3-12-BIAQ

871-3-12-BIP

871-3-14- AQS

871-3-14- AQR

871-3-14- AQ

871-3-14- P

871-3-14-GAQS

871-3-14-GAQR

871-3-14-GAQ

871-3-14-GP

871-3-14-HAQS

871-3-14-HAQR

871-3-14-HAQ

871-3-14-HP

871-3-14-BIAQS

871-3-14-BIAQR

871-3-14-BIAQ

871-3-14-BIP

871-3-16- AQS

871-3-16- AQR

871-3-16- AQ

871-3-16- P

871-3-16-GAQS

871-3-16-GAQR

871-3-16-GAQ

871-3-16-GP

871-3-16-HAQS

871-3-16-HAQR

871-3-16-HAQ

871-3-16-HP

871-3-16-BIAQS

871-3-16-BIAQR

871-3-16-BIAQ

871-3-16-BIP

871-3-18- AQS

871-3-18- AQR

871-3-18- AQ

871-3-18- P

871-3-18-GAQS

871-3-18-GAQR

871-3-18-GAQ

871-3-18-GP

871-3-18-HAQS

871-3-18-HAQR

871-3-18-HAQ

871-3-18-HP

871-3-18-BIAQS

871-3-18-BIAQR

871-3-18-BIAQ

871-3-18-BIP

871-3-20- AQS

871-3-20- AQR

871-3-20- AQ

871-3-20- P

871-3-20-GAQS

871-3-20-GAQR

871-3-20-GAQ

871-3-20-GP

871-3-20-HAQS

871-3-20-HAQR

871-3-20-HAQ

871-3-20-HP

871-3-20-BIAQS

871-3-20-BIAQR

871-3-20-BIAQ

871-3-20-BIP

871-3-22- AQS

871-3-22- AQR

871-3-22- AQ

871-3-22- P

871-3-22-GAQS

871-3-22-GAQR

871-3-22-GAQ

871-3-22-GP

871-3-22-HAQS

871-3-22-HAQR

871-3-22-HAQ

871-3-22-HP

871-3-22-BIAQS

871-3-22-BIAQR

871-3-22-BIAQ

871-3-22-BIP

871-3-24- AQS

871-3-24- AQR

871-3-24- AQ

871-3-24- P

871-3-24-GAQS

871-3-24-GAQR

871-3-24-GAQ

871-3-24-GP

871-3-24-HAQS

871-3-24-HAQR

871-3-24-HAQ

871-3-24-HP

871-3-24-BIAQS

871-3-24-BIAQR

871-3-24-BIAQ

871-3-24-BIP

871-3-26- AQS

871-3-26- AQR

871-3-26- AQ

871-3-26- P

871-3-26-GAQS

871-3-26-GAQR

871-3-26-GAQ

871-3-26-GP

871-3-26-HAQS

871-3-26-HAQR

871-3-26-HAQ

871-3-26-HP

871-3-26-BIAQS

871-3-26-BIAQR

871-3-26-BIAQ

871-3-26-BIP

871-3-28- AQS

871-3-28- AQR

871-3-28- AQ

871-3-28- P

871-3-28-GAQS

871-3-28-GAQR

871-3-28-GAQ

871-3-28-GP

871-3-28-HAQS

871-3-28-HAQR

871-3-28-HAQ

871-3-28-HP

871-3-28-BIAQS

871-3-28-BIAQR

871-3-28-BIAQ

871-3-28-BIP
