耐克森1872/872系列航空航天线缆

信息来源：三博电子作者：三博电子时间：2018/11/23

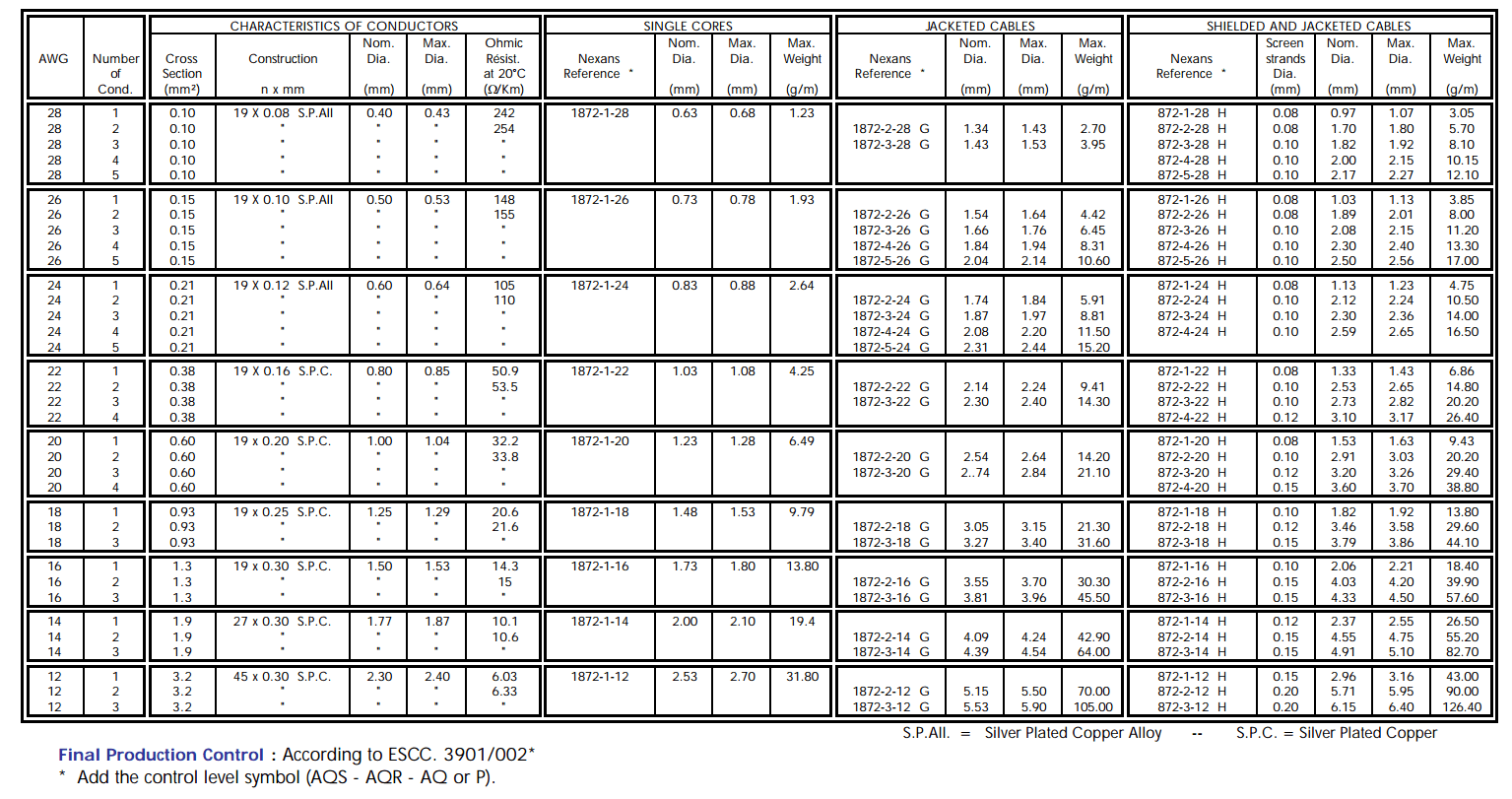

NEXANS and ESCC CROSS REFERENCES

耐克森产品和电气标准协调委员会组件\料号交叉引用对照表

NEXANSP/N耐克森料号	ESCC COMPONENT/NUMBER电气标准协调委员会组件/号码
1872-1-28*	3901.002.61*
1872-1-26*	3901.002.56*
1872-1-24*	3901.002.57*
1872-1-22*	3901.002.58*
1872-1-20*	3901.002.59*
1872-1-18*	3901.002.60*
1872-1-16*
1872-1-14*
1872-1-12*

1872-2-28G*	3901.002.62*
1872-2-26G*	3901.002.31*
1872-2-24G*	3901.002.32*
1872-2-22G*	3901.002.33*
1872-2-20G*	3901.002.34*
1872-2-18G*	3901.002.35*
1872-2-16G*
1872-2-14G*
1872-2-12G*

1872-3-28G*	3901.002.63*
1872-3-26G*	3901.002.36*
1872-3-24G*	3901.002.37*
1872-3-22G*	3901.002.38*
1872-3-20G*	3901.002.39*
1872-3-18G*	3901.002.40*
1872-3-16G*
1872-3-14G*
1872-3-12G*

1872-4-26G*
1872-4-24G*
1872-4-20G*
1872-5-26G*
1872-5-24G*

872-1-28H*	3901.002.64*
872-1-26H*	3901.002.41*
872-1-24H*	3901.002.42*
872-1-22H*	3901.002.43*
872-1-20H*	3901.002.44*
872-1-18H*	3901.002.45*
872-1-16H*
872-1-14H*
872-1-12H*

872-2-28H*	3901.002.65*
872-2-26H*	3901.002.46*
872-2-24H*	3901.002.47*
872-2-22H*	3901.002.48*
872-2-20H*	3901.002.49*
872-2-18H*	3901.002.50*
872-2-16H*
872-2-14H*
872-2-12H*

872-3-28H*	3901.002.66*
872-3-26H*	3901.002.51*
872-3-24H*	3901.002.52*
872-3-22H*	3901.002.53*
872-3-20H*	3901.002.54*
872-3-18H*	3901.002.55*
872-3-16H*
872-3-14H*
872-3-12H*

872-4-28H*	3901.002.67*
872-4-26H*	3901.002.68*
872-4-24H*	3901.002.69*
872-4-22H*	3901.002.70*
872-4-20H*	3901.002.71*

872-5-28H*	3901.002.72*
872-5-26H*	3901.002.73*
*=Thereferenceshallbecompletedwithaletteroragroupoflettersindicatingthecontrollevel	*=Thereferenceshallbecompletedwithaletteroragroupoflettersindicatingthecontrollevel
NEXANS	ESCC
AQS	B1
AQR	B2
AQ	B3
P	FororderswithoutanyreferencetoESCCspecification.
