MIL-W-25038/1 军用电缆
MIL-W-25038/1
Mil Spec Wire

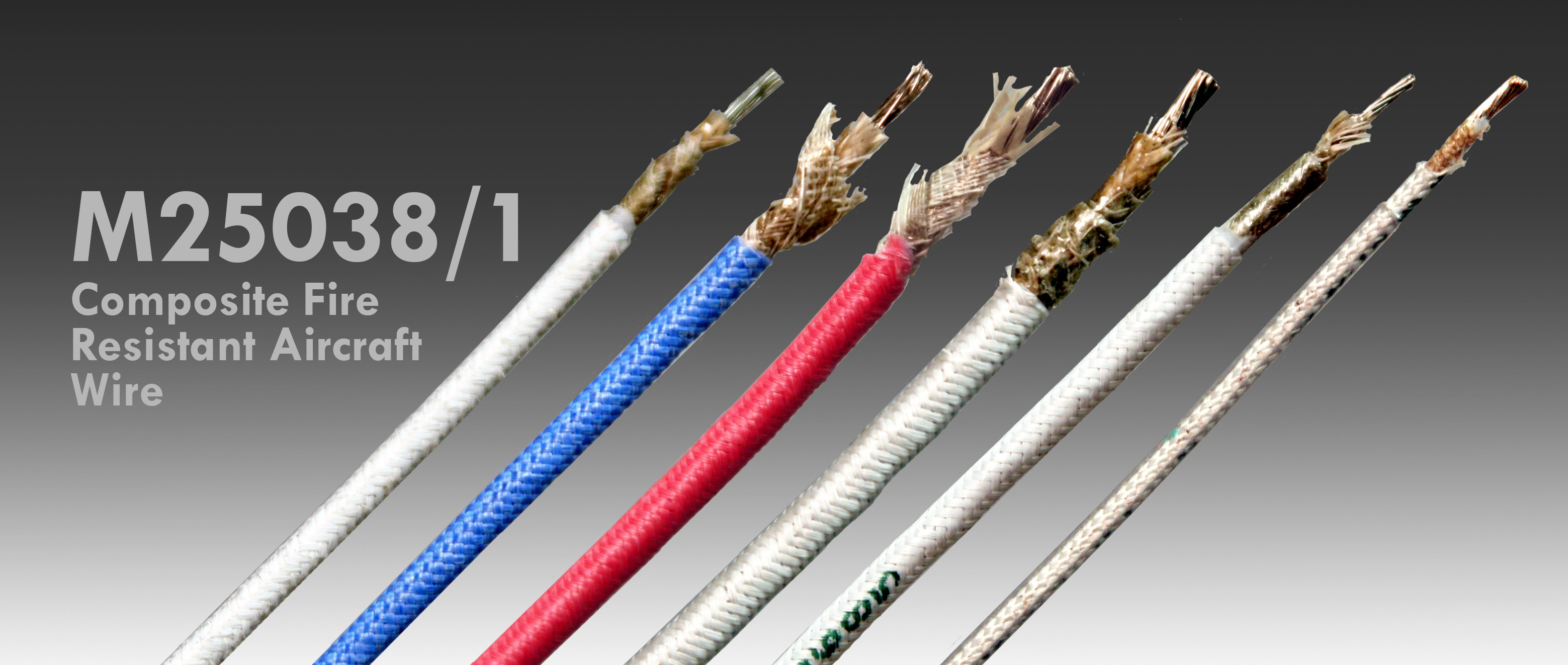

MIL-W-25038/1(Thermazone I)wire—high-temperature, abrasion resistant
M25038/1 Description:
MIL-W-25038/1 (Thermazone I) wires are designed for critical circuit applications where wires must operate in extremely harsh environments, under vibration, and with direct flame exposure. This heavy-duty, non-asbestos construction offers excellent mechanical performance and abrasion resistance.
M25038/1 Construction:
Conductor: 27% Nickel-Plated Copper
Jacket: PTFE-Coated Fiberglass Braid and Finisher
Insulation: Composite Inorganic Dielectric
Colors: Color coded to MIL-STD-104
Identification: Surface printed per MIL-W-25038
M25038/1 Ratings:
Voltage Rating: 600V
Temperature Rating: 260°C
应用与描述：
单芯复合无机介质绝缘，MIL-W-25038/1 电缆运行在极其恶劣的环境下，应用在振动，并且与火焰直接接触的的电路中，具有优良的机械性能及耐磨性能。

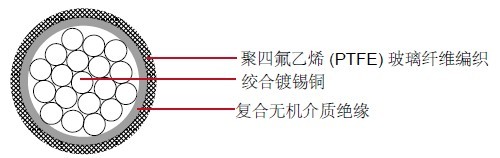

结构：
导体：27%的绞合镀锡铜
绝缘：复合无机介质绝缘
护套：聚四氟乙烯 (PTFE) 玻璃纤维编织
标识：表面印刷 MIL-W-25038
特性：
额定温度：
-55°C +260°C
额定电压：600 volts
颜色编码：MIL-STD-104
尺寸和重量：
|
Mil-Spec # |
AWG SIZE |
Conductor Stranding |
Min O.D. (in) |
Max O.D. (in) |
Max. Resistance @ 20°C OHMS/MFT |
Approx LBS/MFT |
|
军标订货号码 |
线规尺寸 |
导体绞合 |
最小成缆外径（英寸） |
最大成缆外径（英寸） |
最大电阻 @20°C OHMS/MFT |
重量（磅/千英尺） |
|
M25038/1-22 |
22 |
19/34 |
0.1 |
0.116 |
23.7 |
10 |
|
20 |
19/32 |
0.109 |
0.125 |
14.6 |
12 |
|
|
18 |
19/30 |
0.119 |
0.135 |
9.4 |
15 |
|
|
16 |
19/29 |
0.127 |
0.147 |
6.85 |
19 |
|
|
14 |
19/27 |
0.15 |
0.17 |
4.32 |
25 |
|
|
12 |
19/25 |
0.165 |
0.185 |
2.78 |
35 |
|
|
10 |
49/27 |
0.21 |
0.23 |
1.68 |
55 |
|
|
8 |
133/29 |
0.256 |
0.28 |
0.936 |
85 |
|
|
6 |
133/27 |
0.318 |
0.342 |
0.591 |
127 |
|
|
4 |
133/25 |
0.383 |
0.407 |
0.375 |
192 |
|
|
2 |
665/30 |
0.46 |
0.484 |
0.241 |
291 |
|
|
1 |
817/30 |
0.497 |
0.533 |
0.196 |
347 |
|
|
1/0 |
1035/30 |
0.537 |
0.573 |
0.153 |
415 |
|
|
2/0 |
1330/30 |
0.595 |
0.635 |
0.12 |
520 |
|
|
3/0 |
1672/30 |
0.66 |
0.7 |
0.096 |
648 |
|
|
4/0 |
2109/30 |
0.73 |
0.77 |
0.077 |
793 |
