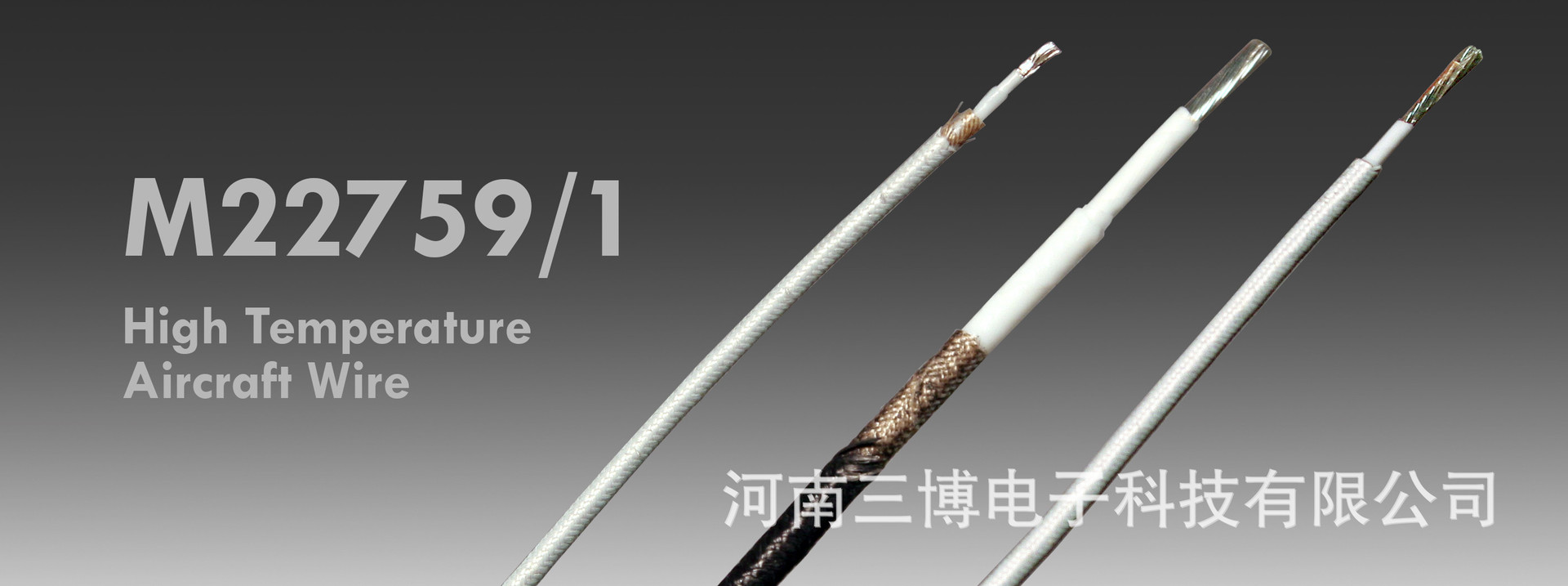

MIL-W-22759/1 | SAE AS22759/1

APPLICATIONS:
High temperature applications such as aircraft engines and where increased abrasion resistance is required。

(应用:高温耐磨损应用,例如必须增加耐磨损性的飞机发动机应用)

CHARACTERISTICS:(产品特性)


SAE AS22759/1 Wire
MIL Spec WireMIL-W-22759/1

Wire (M22759/1 Wire)


M22759/1 Wire Construction:(m22759/1线缆结构)

Conductor: Silver Plated Copper(导体:镀银铜)

Insulation: PTFE, FEP, and Glass(绝缘材料:聚四氟乙烯(PTFE)聚全氟乙丙烯(FEP)玻璃纤维)

M22759/1 Wire Ratings:(m22759/1线缆等级)

Voltage: 600 Volts(额度电压:600伏特)

Temperature: 200°C(最高温度:200摄氏度)

线规范围22-04

M27500: Component  EA (m27500代码 EA)

Mil-Spec: M22759/1(军标代码:M22759/1)

SAE Spec:AS22759/1(SAE 代码:AS22759/1)

Insulation Material: Fluorinated Ethylene Propylene (FEP)  (绝缘体材质:聚全氟乙炳烯(FEP)
Jacket Material: Polytetrafluoroethylene (PTFE) (护套材料聚四氟乙烯(PTFE)

Shield Impregnated Glass Braid (屏蔽:浸渍玻璃编织屏蔽

Shield Material Polytetrafluoroethylene (PTFE) Coated Fiberglass (屏蔽材料聚四氟乙烯(PTFE)涂层的玻璃纤维



part number AWG Conductor Stranding Approx LBS/MFT Min O.D. (in) Max O.D. (in) Mil-Spec SAE Spec Cond. Material Insul. Material Jacket Material Max. Temp Voltage
M22759/1-22-0 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-22-1 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-22-2 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-22-3 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-22-4 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-22-5 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-22-6 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-22-7 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-22-8 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-22-9 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-20-0 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-20-1 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-20-2 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-20-3 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-20-4 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-20-5 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-20-6 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-20-7 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-20-8 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-20-9 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-18-0 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-18-1 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-18-2 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-18-3 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-18-4 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-18-5 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-18-6 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-18-7 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-18-8 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-18-9 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-16-0 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-16-1 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-16-2 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-16-3 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-16-4 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-16-5 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-16-6 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-16-7 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-16-8 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-16-9 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-14-0 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-14-1 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-14-2 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-14-3 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-14-4 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-14-5 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-14-6 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-14-7 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-14-8 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-14-9 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-12-0 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-12-1 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-12-2 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-12-3 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-12-4 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-12-5 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-12-6 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-12-7 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-12-8 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-12-9 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-10-0 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-10-1 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-10-2 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-10-3 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-10-4 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-10-5 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-10-6 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-10-7 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-10-8 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-10-9 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-8-0 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-8-1 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-8-2 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-8-3 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-8-4 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-8-5 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-8-6 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-8-7 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-8-8 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-8-9 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-6-0 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-6-1 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-6-2 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-6-3 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-6-4 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-6-5 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-6-6 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-6-7 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-6-8 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-6-9 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-4-0 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-4-1 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-4-2 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-4-3 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-4-4 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-4-5 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-4-6 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-4-7 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-4-8 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-4-9 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-2-0 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-2-1 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-2-2 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-2-3 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-2-4 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-2-5 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-2-6 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-2-7 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-2-8 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-2-9 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-1-0 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-1-1 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-1-2 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-1-3 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-1-4 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-1-5 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-1-6 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-1-7 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-1-8 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-1-9 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-01-0 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-01-1 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-01-2 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-01-3 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-01-4 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-01-5 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-01-6 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-01-7 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-01-8 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-01-9 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-02-0 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-02-1 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-02-2 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-02-3 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-02-4 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-02-5 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-02-6 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-02-7 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-02-8 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-02-9 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-03-0 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-03-1 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-03-2 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-03-3 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-03-4 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-03-5 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-03-6 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-03-7 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-03-8 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-03-9 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-04-0 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-04-1 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-04-2 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-04-3 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-04-4 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-04-5 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-04-6 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-04-7 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-04-8 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
M22759/1-04-9 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C 600
The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.
0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White
Example: Size 20, white - M22759/1-20-9; white with orange stripe -
M22759/1-20-93.

分享:
热线电话:0371-55365505
正版授权 全球直送 低价保证 全国领先 客户信赖 技术支持 金牌客服
Coryright 三博电子 版权所有 All Right Reseved 豫ICP备15011473号
公司地址:郑州市中原区航海西路25号民安西上7号楼1单元605 网址:http://www.hnsanbo.cn
热线电话: 0371-55365505  传真:0371-86257077 邮箱:hnsanbo@163.com sales@hnsanbo.cn yunpeng.wu@hnsanbo.cn

豫公网安备 41010202002363号
