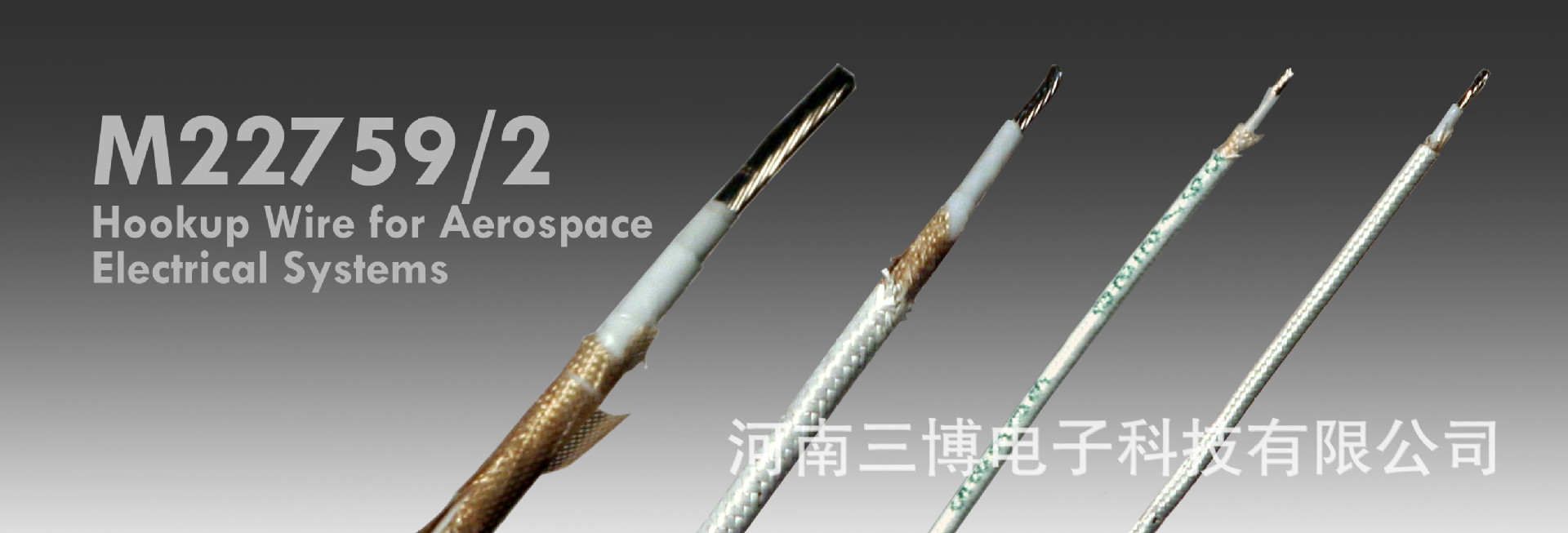

MIL-W-22759/2 | SAE AS22759/2

APPLICATIONS:

High temperature applications such as aircraft engines and where increased abrasion resistance is required。 （应用：高温耐磨损应用，例如必须增加耐磨损性的飞机发动机应用）

M22759/2 wire may be used in aircraft engines and in other military, government, or civilian applications where abrasion will be encountered.（M22759/2线缆可应用于飞机发动机项目以及其他可能遇到的军用民用政府机关领域的耐磨应用）

CHARACTERISTICS:（产品特性）

SAE AS22759/2 Wire
MIL Spec Wire  MIL-W-22759/2 Wire  (M22759/2 Wire)

M22759/2 Wire Construction:（m22759/2线缆结构）
Conductor: NICKEL Plated Copper（导体：镀镍铜）

Insulation: PTFE, FEP, and Glass（绝缘材料：聚四氟乙烯（PTFE）聚全氟乙丙烯（FEP）玻璃纤维）
M22759/2 Wire Ratings:（m22759/2线缆等级）
Voltage: 600 Volts（额度电压：600伏特）
Temperature: 200°C（最高温度：200摄氏度）

Low weight and low Flame propogation （低重量和低火焰传播）

线规范围22-04
M27500: Component  E （m27500代码 E )
Mil-Spec: M22759/2(军标代码：M22759/2）
SAE Spec：AS22759/2（SAE 代码：AS22759/2）

Insulation Material：Polytetrafluoroethylene (PTFE)   （绝缘体材质：护套材料聚四氟乙烯（PTFE）
Jacket Material： Polytetrafluoroethylene (PTFE) (护套材料聚四氟乙烯（PTFE）
Shield Impregnated Glass Braid (屏蔽：浸渍玻璃编织屏蔽）
Shield Material Polytetrafluoroethylene (PTFE) Coated Fiberglass （屏蔽材料聚四氟乙烯（PTFE）涂层的玻璃纤维）




part number AWG ConductorStranding Approx LBS/MFT Min O.D. (in) Max O.D. (in) Mil-Spec SAE Spec Cond. Material Insul. Material Jacket Material Max. Temp Voltage
M22759/2-22-0 22 19/34 7.5 0.08 0.088 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-22-1 22 19/34 7.5 0.08 0.088 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-22-2 22 19/34 7.5 0.08 0.088 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-22-3 22 19/34 7.5 0.08 0.088 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-22-4 22 19/34 7.5 0.08 0.088 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-22-5 22 19/34 7.5 0.08 0.088 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-22-6 22 19/34 7.5 0.08 0.088 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-22-7 22 19/34 7.5 0.08 0.088 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-22-8 22 19/34 7.5 0.08 0.088 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-22-9 22 19/34 7.5 0.08 0.088 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-20-0 20 19/32 9.5 0.09 0.098 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-20-1 20 19/32 9.5 0.09 0.098 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-20-2 20 19/32 9.5 0.09 0.098 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-20-3 20 19/32 9.5 0.09 0.098 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-20-4 20 19/32 9.5 0.09 0.098 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-20-5 20 19/32 9.5 0.09 0.098 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-20-6 20 19/32 9.5 0.09 0.098 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-20-7 20 19/32 9.5 0.09 0.098 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-20-8 20 19/32 9.5 0.09 0.098 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-20-9 20 19/32 9.5 0.09 0.098 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-18-0 18 19/30 13 0.1 0.11 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-18-1 18 19/30 13 0.1 0.11 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-18-2 18 19/30 13 0.1 0.11 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-18-3 18 19/30 13 0.1 0.11 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-18-4 18 19/30 13 0.1 0.11 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-18-5 18 19/30 13 0.1 0.11 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-18-6 18 19/30 13 0.1 0.11 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-18-7 18 19/30 13 0.1 0.11 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-18-8 18 19/30 13 0.1 0.11 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-18-9 18 19/30 13 0.1 0.11 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-16-0 16 19/29 16.5 0.115 0.125 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-16-1 16 19/29 16.5 0.115 0.125 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-16-2 16 19/29 16.5 0.115 0.125 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-16-3 16 19/29 16.5 0.115 0.125 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-16-4 16 19/29 16.5 0.115 0.125 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-16-5 16 19/29 16.5 0.115 0.125 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-16-6 16 19/29 16.5 0.115 0.125 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-16-7 16 19/29 16.5 0.115 0.125 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-16-8 16 19/29 16.5 0.115 0.125 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-16-9 16 19/29 16.5 0.115 0.125 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-14-0 14 19/27 23 0.133 0.143 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-14-1 14 19/27 23 0.133 0.143 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-14-2 14 19/27 23 0.133 0.143 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-14-3 14 19/27 23 0.133 0.143 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-14-4 14 19/27 23 0.133 0.143 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-14-5 14 19/27 23 0.133 0.143 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-14-6 14 19/27 23 0.133 0.143 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-14-7 14 19/27 23 0.133 0.143 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-14-8 14 19/27 23 0.133 0.143 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-14-9 14 19/27 23 0.133 0.143 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-12-0 12 37/28 32.1 0.152 0.162 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-12-1 12 37/28 32.1 0.152 0.162 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-12-2 12 37/28 32.1 0.152 0.162 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-12-3 12 37/28 32.1 0.152 0.162 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-12-4 12 37/28 32.1 0.152 0.162 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-12-5 12 37/28 32.1 0.152 0.162 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-12-6 12 37/28 32.1 0.152 0.162 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-12-7 12 37/28 32.1 0.152 0.162 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-12-8 12 37/28 32.1 0.152 0.162 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-12-9 12 37/28 32.1 0.152 0.162 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-10-0 10 37/16 47 0.174 0.188 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-10-1 10 37/16 47 0.174 0.188 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-10-2 10 37/16 47 0.174 0.188 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-10-3 10 37/16 47 0.174 0.188 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-10-4 10 37/16 47 0.174 0.188 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-10-5 10 37/16 47 0.174 0.188 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-10-6 10 37/16 47 0.174 0.188 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-10-7 10 37/16 47 0.174 0.188 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-10-8 10 37/16 47 0.174 0.188 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-10-9 10 37/16 47 0.174 0.188 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-8-0 8 133/29 82 0.241 0.255 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-8-1 8 133/29 82 0.241 0.255 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-8-2 8 133/29 82 0.241 0.255 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-8-3 8 133/29 82 0.241 0.255 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-8-4 8 133/29 82 0.241 0.255 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-8-5 8 133/29 82 0.241 0.255 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-8-6 8 133/29 82 0.241 0.255 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-8-7 8 133/29 82 0.241 0.255 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-8-8 8 133/29 82 0.241 0.255 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-8-9 8 133/29 82 0.241 0.255 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-6-0 6 133/27 122 0.283 0.303 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-6-1 6 133/27 122 0.283 0.303 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-6-2 6 133/27 122 0.283 0.303 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-6-3 6 133/27 122 0.283 0.303 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-6-4 6 133/27 122 0.283 0.303 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-6-5 6 133/27 122 0.283 0.303 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-6-6 6 133/27 122 0.283 0.303 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-6-7 6 133/27 122 0.283 0.303 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-6-8 6 133/27 122 0.283 0.303 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-6-9 6 133/27 122 0.283 0.303 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-4-0 4 133/25 180 0.4 0.43 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-4-1 4 133/25 180 0.4 0.43 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-4-2 4 133/25 180 0.4 0.43 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-4-3 4 133/25 180 0.4 0.43 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-4-4 4 133/25 180 0.4 0.43 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-4-5 4 133/25 180 0.4 0.43 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-4-6 4 133/25 180 0.4 0.43 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-4-7 4 133/25 180 0.4 0.43 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-4-8 4 133/25 180 0.4 0.43 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-4-9 4 133/25 180 0.4 0.43 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-2-0 2 665/30 275 0.405 0.435 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-2-1 2 665/30 275 0.405 0.435 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-2-2 2 665/30 275 0.405 0.435 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-2-3 2 665/30 275 0.405 0.435 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-2-4 2 665/30 275 0.405 0.435 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-2-5 2 665/30 275 0.405 0.435 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-2-6 2 665/30 275 0.405 0.435 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-2-7 2 665/30 275 0.405 0.435 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-2-8 2 665/30 275 0.405 0.435 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-2-9 2 665/30 275 0.405 0.435 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-1-0 1 817/30 348 0.455 0.485 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-1-1 1 817/30 348 0.455 0.485 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-1-2 1 817/30 348 0.455 0.485 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-1-3 1 817/30 348 0.455 0.485 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-1-4 1 817/30 348 0.455 0.485 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-1-5 1 817/30 348 0.455 0.485 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-1-6 1 817/30 348 0.455 0.485 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-1-7 1 817/30 348 0.455 0.485 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-1-8 1 817/30 348 0.455 0.485 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-1-9 1 817/30 348 0.455 0.485 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-01-0 1/0 1045/30 429 0.495 0.535 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-01-1 1/0 1045/30 429 0.495 0.535 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-01-2 1/0 1045/30 429 0.495 0.535 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-01-3 1/0 1045/30 429 0.495 0.535 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-01-4 1/0 1045/30 429 0.495 0.535 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-01-5 1/0 1045/30 429 0.495 0.535 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-01-6 1/0 1045/30 429 0.495 0.535 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-01-7 1/0 1045/30 429 0.495 0.535 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-01-8 1/0 1045/30 429 0.495 0.535 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-01-9 1/0 1045/30 429 0.495 0.535 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-02-0 2/0 1330/30 542 0.555 0.595 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-02-1 2/0 1330/30 542 0.555 0.595 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-02-2 2/0 1330/30 542 0.555 0.595 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-02-3 2/0 1330/30 542 0.555 0.595 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-02-4 2/0 1330/30 542 0.555 0.595 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-02-5 2/0 1330/30 542 0.555 0.595 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-02-6 2/0 1330/30 542 0.555 0.595 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-02-7 2/0 1330/30 542 0.555 0.595 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-02-8 2/0 1330/30 542 0.555 0.595 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-02-9 2/0 1330/30 542 0.555 0.595 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-03-0 3/0 1665/30 668 0.62 0.66 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-03-1 3/0 1665/30 668 0.62 0.66 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-03-2 3/0 1665/30 668 0.62 0.66 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-03-3 3/0 1665/30 668 0.62 0.66 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-03-4 3/0 1665/30 668 0.62 0.66 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-03-5 3/0 1665/30 668 0.62 0.66 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-03-6 3/0 1665/30 668 0.62 0.66 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-03-7 3/0 1665/30 668 0.62 0.66 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-03-8 3/0 1665/30 668 0.62 0.66 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-03-9 3/0 1665/30 668 0.62 0.66 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-04-0 4/0 2109/30 835 0.69 0.73 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-04-1 4/0 2109/30 835 0.69 0.73 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-04-2 4/0 2109/30 835 0.69 0.73 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-04-3 4/0 2109/30 835 0.69 0.73 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-04-4 4/0 2109/30 835 0.69 0.73 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-04-5 4/0 2109/30 835 0.69 0.73 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-04-6 4/0 2109/30 835 0.69 0.73 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-04-7 4/0 2109/30 835 0.69 0.73 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-04-8 4/0 2109/30 835 0.69 0.73 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
M22759/2-04-9 4/0 2109/30 835 0.69 0.73 M22759/2 AS22759/2 Nickel-Plated Copper FEP PTFE 200°C 600伏
The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.
0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White
Example: Size 20, white - M22759/2-20-9; white with orange stripe -M22759/2-20-93.


分享：
点击在线咨询
热线电话：0371-55365505
上一条：MIL-W-22759/1 | SAE AS22759/1

下一条：MIL-DTL-22759/17 | SAE AS22759/17
正版授权 全球直送 低价保证 全国领先 客户信赖 技术支持 金牌客服
Coryright 三博电子 版权所有 All Right Reseved 豫ICP备15011473号
公司地址：郑州市中原区航海西路25号民安西上7号楼1单元605 网址：http://www.hnsanbo.cn
热线电话： 0371-55365505  传真：0371-86257077 邮箱：hnsanbo@163.com sales@hnsanbo.cn yunpeng.wu@hnsanbo.cn

豫公网安备 41010202002363号
