APPLICATIONS:
High temperature applications such as aircraft engines and where increased abrasion resistance is required。 （应用：高温耐磨损应用，例如必须增加耐磨损性的飞机发动机应用）
M22759/3wire may be used in aircraft engines and in other military, government, or civilian applications where abrasion is present.（M22759/3线缆可应用于飞机发动机项目以及其他可能遇到的军用民用政府机关领域的耐磨存在应用）
CHARACTERISTICS:（产品特性）

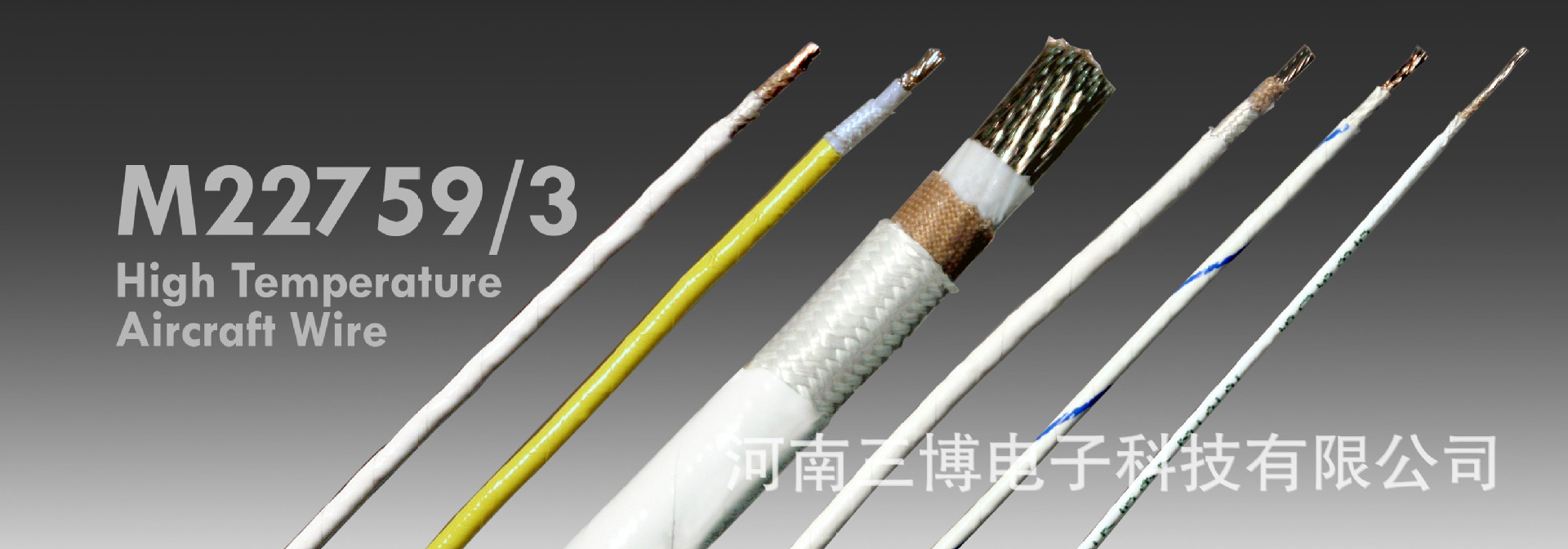

SAE AS22759/3 Wire
MIL Spec Wire
MIL-W-22759/3 Wire
(M22759/3Wire)
M22759/3 Wire Construction:（m22759/3线缆结构）
Conductor: Stranded Nickel Plated Copper（导体：绞合镀镍铜）
Insulation: PTFE, FEP, and Glass（绝缘材料：聚四氟乙烯（PTFE）聚全氟乙丙烯（FEP）玻璃纤维）
M22759/3 Wire Ratings:（m22759/3线缆等级）
Voltage: 600 Volts（额度电压：600伏特）
Temperature: 260°C（最高温度：260摄氏度）
线规范围22-02
M27500 Component RA （m27500代码 RA)
Mil-Spec: M22759/3(军标代码：M22759/3）
SAE Spec：AS22759/3（SAE 代码：AS22759/3）
Insulation Material： Fluorinated Ethylene Propylene (FEP) （绝缘体材质：聚全氟乙炳烯（FEP)
Jacket Material： Polytetrafluoroethylene (PTFE) (护套材料聚四氟乙烯（PTFE）
Shield Impregnated Glass Braid (屏蔽：浸渍玻璃编织屏蔽）
Shield Material Polytetrafluoroethylene (PTFE) Coated Fiberglass （屏蔽材料聚四氟乙烯（PTFE）涂层的玻璃纤维）
|
Part Number |
AWG |
ConductorStranding |
Approx LBS/MFT |
Min O.D. (in) |
Max O.D. (in) |
Cond. Material |
Max. Temp |
Voltage |
Insul. Material |
Jacket Material |
Shield |
Shield Material |
|
M22759/3-22-0 |
22 |
19/34 |
5.9 |
0.08 |
0.088 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-22-1 |
22 |
19/34 |
5.9 |
0.08 |
0.088 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-22-2 |
22 |
19/34 |
5.9 |
0.08 |
0.088 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-22-3 |
22 |
19/34 |
5.9 |
0.08 |
0.088 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-22-4 |
22 |
19/34 |
5.9 |
0.08 |
0.088 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-22-5 |
22 |
19/34 |
5.9 |
0.08 |
0.088 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-22-6 |
22 |
19/34 |
5.9 |
0.08 |
0.088 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-22-7 |
22 |
19/34 |
5.9 |
0.08 |
0.088 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-22-8 |
22 |
19/34 |
5.9 |
0.08 |
0.088 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-22-9 |
22 |
19/34 |
5.9 |
0.08 |
0.088 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-20-0 |
20 |
19/32 |
7.9 |
0.09 |
0.098 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-20-1 |
20 |
19/32 |
7.9 |
0.09 |
0.098 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-20-2 |
20 |
19/32 |
7.9 |
0.09 |
0.098 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-20-3 |
20 |
19/32 |
7.9 |
0.09 |
0.098 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-20-4 |
20 |
19/32 |
7.9 |
0.09 |
0.098 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-20-5 |
20 |
19/32 |
7.9 |
0.09 |
0.098 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-20-6 |
20 |
19/32 |
7.9 |
0.09 |
0.098 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-20-7 |
20 |
19/32 |
7.9 |
0.09 |
0.098 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-20-8 |
20 |
19/32 |
7.9 |
0.09 |
0.098 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-20-9 |
20 |
19/32 |
7.9 |
0.09 |
0.098 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-18-0 |
18 |
19/30 |
11 |
0.1 |
0.11 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-18-1 |
18 |
19/30 |
11 |
0.1 |
0.11 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-18-2 |
18 |
19/30 |
11 |
0.1 |
0.11 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-18-3 |
18 |
19/30 |
11 |
0.1 |
0.11 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-18-4 |
18 |
19/30 |
11 |
0.1 |
0.11 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-18-5 |
18 |
19/30 |
11 |
0.1 |
0.11 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-18-6 |
18 |
19/30 |
11 |
0.1 |
0.11 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-18-7 |
18 |
19/30 |
11 |
0.1 |
0.11 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-18-8 |
18 |
19/30 |
11 |
0.1 |
0.11 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-18-9 |
18 |
19/30 |
11 |
0.1 |
0.11 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-16-0 |
16 |
19/29 |
13.6 |
0.115 |
0.125 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-16-1 |
16 |
19/29 |
13.6 |
0.115 |
0.125 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-16-2 |
16 |
19/29 |
13.6 |
0.115 |
0.125 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-16-3 |
16 |
19/29 |
13.6 |
0.115 |
0.125 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-16-4 |
16 |
19/29 |
13.6 |
0.115 |
0.125 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-16-5 |
16 |
19/29 |
13.6 |
0.115 |
0.125 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-16-6 |
16 |
19/29 |
13.6 |
0.115 |
0.125 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-16-7 |
16 |
19/29 |
13.6 |
0.115 |
0.125 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-16-8 |
16 |
19/29 |
13.6 |
0.115 |
0.125 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-16-9 |
16 |
19/29 |
13.6 |
0.115 |
0.125 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-14-0 |
14 |
19/27 |
18.5 |
0.133 |
0.143 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-14-1 |
14 |
19/27 |
18.5 |
0.133 |
0.143 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-14-2 |
14 |
19/27 |
18.5 |
0.133 |
0.143 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-14-3 |
14 |
19/27 |
18.5 |
0.133 |
0.143 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-14-4 |
14 |
19/27 |
18.5 |
0.133 |
0.143 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-14-5 |
14 |
19/27 |
18.5 |
0.133 |
0.143 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-14-6 |
14 |
19/27 |
18.5 |
0.133 |
0.143 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-14-7 |
14 |
19/27 |
18.5 |
0.133 |
0.143 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-14-8 |
14 |
19/27 |
18.5 |
0.133 |
0.143 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-14-9 |
14 |
19/27 |
18.5 |
0.133 |
0.143 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-12-0 |
12 |
37/28 |
26.6 |
0.152 |
0.162 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-12-1 |
12 |
37/28 |
26.6 |
0.152 |
0.162 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-12-2 |
12 |
37/28 |
26.6 |
0.152 |
0.162 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-12-3 |
12 |
37/28 |
26.6 |
0.152 |
0.162 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-12-4 |
12 |
37/28 |
26.6 |
0.152 |
0.162 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-12-5 |
12 |
37/28 |
26.6 |
0.152 |
0.162 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-12-6 |
12 |
37/28 |
26.6 |
0.152 |
0.162 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-12-7 |
12 |
37/28 |
26.6 |
0.152 |
0.162 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-12-8 |
12 |
37/28 |
26.6 |
0.152 |
0.162 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-12-9 |
12 |
37/28 |
26.6 |
0.152 |
0.162 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-10-0 |
10 |
37/16 |
41.5 |
0.174 |
0.188 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-10-1 |
10 |
37/16 |
41.5 |
0.174 |
0.188 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-10-2 |
10 |
37/16 |
41.5 |
0.174 |
0.188 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-10-3 |
10 |
37/16 |
41.5 |
0.174 |
0.188 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-10-4 |
10 |
37/16 |
41.5 |
0.174 |
0.188 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-10-5 |
10 |
37/16 |
41.5 |
0.174 |
0.188 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-10-6 |
10 |
37/16 |
41.5 |
0.174 |
0.188 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-10-7 |
10 |
37/16 |
41.5 |
0.174 |
0.188 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-10-8 |
10 |
37/16 |
41.5 |
0.174 |
0.188 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-10-9 |
10 |
37/16 |
41.5 |
0.174 |
0.188 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-8-0 |
8 |
133/29 |
77.4 |
0.241 |
0.255 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-8-1 |
8 |
133/29 |
77.4 |
0.241 |
0.255 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-8-2 |
8 |
133/29 |
77.4 |
0.241 |
0.255 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-8-3 |
8 |
133/29 |
77.4 |
0.241 |
0.255 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-8-4 |
8 |
133/29 |
77.4 |
0.241 |
0.255 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-8-5 |
8 |
133/29 |
77.4 |
0.241 |
0.255 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-8-6 |
8 |
133/29 |
77.4 |
0.241 |
0.255 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-8-7 |
8 |
133/29 |
77.4 |
0.241 |
0.255 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-8-8 |
8 |
133/29 |
77.4 |
0.241 |
0.255 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-8-9 |
8 |
133/29 |
77.4 |
0.241 |
0.255 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-6-0 |
6 |
133/27 |
115 |
0.283 |
0.303 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-6-1 |
6 |
133/27 |
115 |
0.283 |
0.303 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-6-2 |
6 |
133/27 |
115 |
0.283 |
0.303 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-6-3 |
6 |
133/27 |
115 |
0.283 |
0.303 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-6-4 |
6 |
133/27 |
115 |
0.283 |
0.303 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-6-5 |
6 |
133/27 |
115 |
0.283 |
0.303 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-6-6 |
6 |
133/27 |
115 |
0.283 |
0.303 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-6-7 |
6 |
133/27 |
115 |
0.283 |
0.303 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-6-8 |
6 |
133/27 |
115 |
0.283 |
0.303 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-6-9 |
6 |
133/27 |
115 |
0.283 |
0.303 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-4-0 |
4 |
133/25 |
184 |
0.4 |
0.43 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-4-1 |
4 |
133/25 |
184 |
0.4 |
0.43 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-4-2 |
4 |
133/25 |
184 |
0.4 |
0.43 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-4-3 |
4 |
133/25 |
184 |
0.4 |
0.43 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-4-4 |
4 |
133/25 |
184 |
0.4 |
0.43 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-4-5 |
4 |
133/25 |
184 |
0.4 |
0.43 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-4-6 |
4 |
133/25 |
184 |
0.4 |
0.43 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-4-7 |
4 |
133/25 |
184 |
0.4 |
0.43 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-4-8 |
4 |
133/25 |
184 |
0.4 |
0.43 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-4-9 |
4 |
133/25 |
184 |
0.4 |
0.43 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-2-0 |
2 |
665/30 |
281 |
0.405 |
0.435 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-2-1 |
2 |
665/30 |
281 |
0.405 |
0.435 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-2-2 |
2 |
665/30 |
281 |
0.405 |
0.435 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-2-3 |
2 |
665/30 |
281 |
0.405 |
0.435 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-2-4 |
2 |
665/30 |
281 |
0.405 |
0.435 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-2-5 |
2 |
665/30 |
281 |
0.405 |
0.435 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-2-6 |
2 |
665/30 |
281 |
0.405 |
0.435 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-2-7 |
2 |
665/30 |
281 |
0.405 |
0.435 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-2-8 |
2 |
665/30 |
281 |
0.405 |
0.435 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-2-9 |
2 |
665/30 |
281 |
0.405 |
0.435 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-1-0 |
1 |
817/30 |
358 |
0.455 |
0.485 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-1-1 |
1 |
817/30 |
358 |
0.455 |
0.485 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-1-2 |
1 |
817/30 |
358 |
0.455 |
0.485 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-1-3 |
1 |
817/30 |
358 |
0.455 |
0.485 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-1-4 |
1 |
817/30 |
358 |
0.455 |
0.485 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-1-5 |
1 |
817/30 |
358 |
0.455 |
0.485 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-1-6 |
1 |
817/30 |
358 |
0.455 |
0.485 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-1-7 |
1 |
817/30 |
358 |
0.455 |
0.485 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-1-8 |
1 |
817/30 |
358 |
0.455 |
0.485 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-1-9 |
1 |
817/30 |
358 |
0.455 |
0.485 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-01-0 |
1/0 |
1045/30 |
436 |
0.495 |
0.535 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-01-1 |
1/0 |
1045/30 |
436 |
0.495 |
0.535 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-01-2 |
1/0 |
1045/30 |
436 |
0.495 |
0.535 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-01-3 |
1/0 |
1045/30 |
436 |
0.495 |
0.535 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-01-4 |
1/0 |
1045/30 |
436 |
0.495 |
0.535 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-01-5 |
1/0 |
1045/30 |
436 |
0.495 |
0.535 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-01-6 |
1/0 |
1045/30 |
436 |
0.495 |
0.535 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-01-7 |
1/0 |
1045/30 |
436 |
0.495 |
0.535 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-01-8 |
1/0 |
1045/30 |
436 |
0.495 |
0.535 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-01-9 |
1/0 |
1045/30 |
436 |
0.495 |
0.535 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-02-0 |
2/0 |
1330/30 |
554 |
0.555 |
0.595 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-02-1 |
2/0 |
1330/30 |
554 |
0.555 |
0.595 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-02-2 |
2/0 |
1330/30 |
554 |
0.555 |
0.595 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-02-3 |
2/0 |
1330/30 |
554 |
0.555 |
0.595 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-02-4 |
2/0 |
1330/30 |
554 |
0.555 |
0.595 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-02-5 |
2/0 |
1330/30 |
554 |
0.555 |
0.595 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-02-6 |
2/0 |
1330/30 |
554 |
0.555 |
0.595 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-02-7 |
2/0 |
1330/30 |
554 |
0.555 |
0.595 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-02-8 |
2/0 |
1330/30 |
554 |
0.555 |
0.595 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
M22759/3-02-9 |
2/0 |
1330/30 |
554 |
0.555 |
0.595 |
Nickel-Plated Copper |
260°C |
600伏 |
FEP |
PTFE |
Impregnated Glass Braid |
(PTFE) Coated Fiberglass |
|
The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681. |
||||||||||||
|
0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White |
||||||||||||
|
Example: Size 20, white - M22759/3-20-9; white with orange stripe -M22759/3-20-93. |
||||||||||||
正版授权
全球直送
低价保证
全国领先
客户信赖
技术支持
金牌客服
Coryright 三博电子 版权所有 All Right Reseved 豫ICP备15011473号
