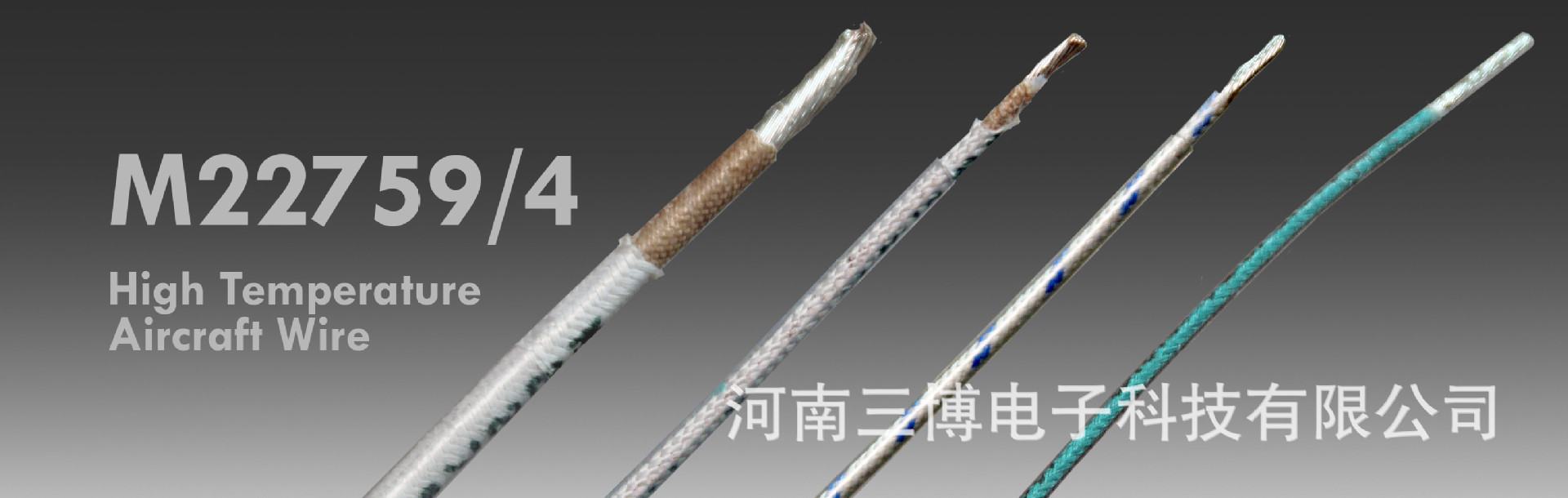

MIL-W-22759/4 | SAE AS22759/4

APPLICATIONS:
High temperature applications such as aircraft engines and where increased abrasion resistance is required。（应用：高温耐磨损应用，例如必须增加耐磨损性的飞机发动机应用）

Durable M22759/4wire may be used in aircraft engines and in other military, government, or civilian applications where abrasion is present.（耐用的M22759/4线缆可应用于飞机发动机项目以及其他军用民用政府机关领域的耐磨现实应用）
CHARACTERISTICS:（产品特性）
SAE AS22759/4 Wire
MIL Spec WireMIL-W-22759/4
Wire (M22759/4 Wire)
M22759/4 Wire Construction:（m22759/4线缆结构）
Conductor: Stranded Silver Plated Copper（导体：绞合镀银铜）
Insulation: PTFE, FEP, and Glass（绝缘材料：聚四氟乙烯（PTFE）聚全氟乙丙烯（FEP）玻璃纤维）
M22759/4 Wire Ratings:（m22759/4线缆等级）
Voltage: 600 Volts（额度电压：600伏特）
Temperature: 200°C（最高温度：200摄氏度）
线规范围22-02
M27500 Component RB （m27500代码 RB)
Mil-Spec: M22759/4(军标代码：M22759/4）
SAE Spec：AS22759/4（SAE 代码：AS22759/4）
Insulation Material： Fluorinated Ethylene Propylene (FEP) （绝缘体材质：聚全氟乙炳烯（FEP)
Jacket Material： Polytetrafluoroethylene (PTFE) (护套材料聚四氟乙烯（PTFE）
Shield Impregnated Glass Braid (屏蔽：浸渍玻璃编织屏蔽）
Shield Material Polytetrafluoroethylene (PTFE) Coated Fiberglass （屏蔽材料聚四氟乙烯（PTFE）涂层的玻璃纤维）

PART NUMBER	AWG	Conductor Stranding	Approx LBS/MFT	Min O.D. (in)	Max O.D. (in)	Cond. Material	Max. Temp	Voltage
M22759/4-22-0	22	19/34	5.9	0.071	0.077	Silver-Coated Copper	200°C	600伏
M22759/4-22-1	22	19/34	5.9	0.071	0.077	Silver-Coated Copper	200°C	600伏
M22759/4-22-2	22	19/34	5.9	0.071	0.077	Silver-Coated Copper	200°C	600伏
M22759/4-22-3	22	19/34	5.9	0.071	0.077	Silver-Coated Copper	200°C	600伏
M22759/4-22-4	22	19/34	5.9	0.071	0.077	Silver-Coated Copper	200°C	600伏
M22759/4-22-5	22	19/34	5.9	0.071	0.077	Silver-Coated Copper	200°C	600伏
M22759/4-22-6	22	19/34	5.9	0.071	0.077	Silver-Coated Copper	200°C	600伏
M22759/4-22-7	22	19/34	5.9	0.071	0.077	Silver-Coated Copper	200°C	600伏
M22759/4-22-8	22	19/34	5.9	0.071	0.077	Silver-Coated Copper	200°C	600伏
M22759/4-22-9	22	19/34	5.9	0.071	0.077	Silver-Coated Copper	200°C	600伏
M22759/4-20-0	20	19/32	7.9	0.079	0.085	Silver-Coated Copper	200°C	600伏
M22759/4-20-1	20	19/32	7.9	0.079	0.085	Silver-Coated Copper	200°C	600伏
M22759/4-20-2	20	19/32	7.9	0.079	0.085	Silver-Coated Copper	200°C	600伏
M22759/4-20-3	20	19/32	7.9	0.079	0.085	Silver-Coated Copper	200°C	600伏
M22759/4-20-4	20	19/32	7.9	0.079	0.085	Silver-Coated Copper	200°C	600伏
M22759/4-20-5	20	19/32	7.9	0.079	0.085	Silver-Coated Copper	200°C	600伏
M22759/4-20-6	20	19/32	7.9	0.079	0.085	Silver-Coated Copper	200°C	600伏
M22759/4-20-7	20	19/32	7.9	0.079	0.085	Silver-Coated Copper	200°C	600伏
M22759/4-20-8	20	19/32	7.9	0.079	0.085	Silver-Coated Copper	200°C	600伏
M22759/4-20-9	20	19/32	7.9	0.079	0.085	Silver-Coated Copper	200°C	600伏
M22759/4-18-0	18	19/30	11	0.092	0.098	Silver-Coated Copper	200°C	600伏
M22759/4-18-1	18	19/30	11	0.092	0.098	Silver-Coated Copper	200°C	600伏
M22759/4-18-2	18	19/30	11	0.092	0.098	Silver-Coated Copper	200°C	600伏
M22759/4-18-3	18	19/30	11	0.092	0.098	Silver-Coated Copper	200°C	600伏
M22759/4-18-4	18	19/30	11	0.092	0.098	Silver-Coated Copper	200°C	600伏
M22759/4-18-5	18	19/30	11	0.092	0.098	Silver-Coated Copper	200°C	600伏
M22759/4-18-6	18	19/30	11	0.092	0.098	Silver-Coated Copper	200°C	600伏
M22759/4-18-7	18	19/30	11	0.092	0.098	Silver-Coated Copper	200°C	600伏
M22759/4-18-8	18	19/30	11	0.092	0.098	Silver-Coated Copper	200°C	600伏
M22759/4-18-9	18	19/30	11	0.092	0.098	Silver-Coated Copper	200°C	600伏
M22759/4-16-0	16	19/29	13.6	0.99	0.998	Silver-Coated Copper	200°C	600伏
M22759/4-16-1	16	19/29	13.6	0.99	0.998	Silver-Coated Copper	200°C	600伏
M22759/4-16-2	16	19/29	13.6	0.99	0.998	Silver-Coated Copper	200°C	600伏
M22759/4-16-3	16	19/29	13.6	0.99	0.998	Silver-Coated Copper	200°C	600伏
M22759/4-16-4	16	19/29	13.6	0.99	0.998	Silver-Coated Copper	200°C	600伏
M22759/4-16-5	16	19/29	13.6	0.99	0.998	Silver-Coated Copper	200°C	600伏
M22759/4-16-6	16	19/29	13.6	0.99	0.998	Silver-Coated Copper	200°C	600伏
M22759/4-16-7	16	19/29	13.6	0.99	0.998	Silver-Coated Copper	200°C	600伏
M22759/4-16-8	16	19/29	13.6	0.99	0.998	Silver-Coated Copper	200°C	600伏
M22759/4-16-9	16	19/29	13.6	0.99	0.998	Silver-Coated Copper	200°C	600伏
M22759/4-14-0	14	19/27	18.5	0.112	0.12	Silver-Coated Copper	200°C	600伏
M22759/4-14-1	14	19/27	18.5	0.112	0.12	Silver-Coated Copper	200°C	600伏
M22759/4-14-2	14	19/27	18.5	0.112	0.12	Silver-Coated Copper	200°C	600伏
M22759/4-14-3	14	19/27	18.5	0.112	0.12	Silver-Coated Copper	200°C	600伏
M22759/4-14-4	14	19/27	18.5	0.112	0.12	Silver-Coated Copper	200°C	600伏
M22759/4-14-5	14	19/27	18.5	0.112	0.12	Silver-Coated Copper	200°C	600伏
M22759/4-14-6	14	19/27	18.5	0.112	0.12	Silver-Coated Copper	200°C	600伏
M22759/4-14-7	14	19/27	18.5	0.112	0.12	Silver-Coated Copper	200°C	600伏
M22759/4-14-8	14	19/27	18.5	0.112	0.12	Silver-Coated Copper	200°C	600伏
M22759/4-14-9	14	19/27	18.5	0.112	0.12	Silver-Coated Copper	200°C	600伏
M22759/4-12-0	12	37/28	26.6	0.129	0.137	Silver-Coated Copper	200°C	600伏
M22759/4-12-1	12	37/28	26.6	0.129	0.137	Silver-Coated Copper	200°C	600伏
M22759/4-12-2	12	37/28	26.6	0.129	0.137	Silver-Coated Copper	200°C	600伏
M22759/4-12-3	12	37/28	26.6	0.129	0.137	Silver-Coated Copper	200°C	600伏
M22759/4-12-4	12	37/28	26.6	0.129	0.137	Silver-Coated Copper	200°C	600伏
M22759/4-12-5	12	37/28	26.6	0.129	0.137	Silver-Coated Copper	200°C	600伏
M22759/4-12-6	12	37/28	26.6	0.129	0.137	Silver-Coated Copper	200°C	600伏
M22759/4-12-7	12	37/28	26.6	0.129	0.137	Silver-Coated Copper	200°C	600伏
M22759/4-12-8	12	37/28	26.6	0.129	0.137	Silver-Coated Copper	200°C	600伏
M22759/4-12-9	12	37/28	26.6	0.129	0.137	Silver-Coated Copper	200°C	600伏
M22759/4-10-0	10	37/16	41.5	0.159	0.171	Silver-Coated Copper	200°C	600伏
M22759/4-10-1	10	37/16	41.5	0.159	0.171	Silver-Coated Copper	200°C	600伏
M22759/4-10-2	10	37/16	41.5	0.159	0.171	Silver-Coated Copper	200°C	600伏
M22759/4-10-3	10	37/16	41.5	0.159	0.171	Silver-Coated Copper	200°C	600伏
M22759/4-10-4	10	37/16	41.5	0.159	0.171	Silver-Coated Copper	200°C	600伏
M22759/4-10-5	10	37/16	41.5	0.159	0.171	Silver-Coated Copper	200°C	600伏
M22759/4-10-6	10	37/16	41.5	0.159	0.171	Silver-Coated Copper	200°C	600伏
M22759/4-10-7	10	37/16	41.5	0.159	0.171	Silver-Coated Copper	200°C	600伏
M22759/4-10-8	10	37/16	41.5	0.159	0.171	Silver-Coated Copper	200°C	600伏
M22759/4-10-9	10	37/16	41.5	0.159	0.171	Silver-Coated Copper	200°C	600伏
M22759/4-8-0	8	133/29	77.4	0.228	0.242	Silver-Coated Copper	200°C	600伏
M22759/4-8-1	8	133/29	77.4	0.228	0.242	Silver-Coated Copper	200°C	600伏
M22759/4-8-2	8	133/29	77.4	0.228	0.242	Silver-Coated Copper	200°C	600伏
M22759/4-8-3	8	133/29	77.4	0.228	0.242	Silver-Coated Copper	200°C	600伏
M22759/4-8-4	8	133/29	77.4	0.228	0.242	Silver-Coated Copper	200°C	600伏
M22759/4-8-5	8	133/29	77.4	0.228	0.242	Silver-Coated Copper	200°C	600伏
M22759/4-8-6	8	133/29	77.4	0.228	0.242	Silver-Coated Copper	200°C	600伏
M22759/4-8-7	8	133/29	77.4	0.228	0.242	Silver-Coated Copper	200°C	600伏
M22759/4-8-8	8	133/29	77.4	0.228	0.242	Silver-Coated Copper	200°C	600伏
M22759/4-8-9	8	133/29	77.4	0.228	0.242	Silver-Coated Copper	200°C	600伏
M22759/4-6-0	6	133/27	115	0.272	0.292	Silver-Coated Copper	200°C	600伏
M22759/4-6-1	6	133/27	115	0.272	0.292	Silver-Coated Copper	200°C	600伏
M22759/4-6-2	6	133/27	115	0.272	0.292	Silver-Coated Copper	200°C	600伏
M22759/4-6-3	6	133/27	115	0.272	0.292	Silver-Coated Copper	200°C	600伏
M22759/4-6-4	6	133/27	115	0.272	0.292	Silver-Coated Copper	200°C	600伏
M22759/4-6-5	6	133/27	115	0.272	0.292	Silver-Coated Copper	200°C	600伏
M22759/4-6-6	6	133/27	115	0.272	0.292	Silver-Coated Copper	200°C	600伏
M22759/4-6-7	6	133/27	115	0.272	0.292	Silver-Coated Copper	200°C	600伏
M22759/4-6-8	6	133/27	115	0.272	0.292	Silver-Coated Copper	200°C	600伏
M22759/4-6-9	6	133/27	115	0.272	0.292	Silver-Coated Copper	200°C	600伏
M22759/4-4-0	4	133/25	184	0.336	0.366	Silver-Coated Copper	200°C	600伏
M22759/4-4-1	4	133/25	184	0.336	0.366	Silver-Coated Copper	200°C	600伏
M22759/4-4-2	4	133/25	184	0.336	0.366	Silver-Coated Copper	200°C	600伏
M22759/4-4-3	4	133/25	184	0.336	0.366	Silver-Coated Copper	200°C	600伏
M22759/4-4-4	4	133/25	184	0.336	0.366	Silver-Coated Copper	200°C	600伏
M22759/4-4-5	4	133/25	184	0.336	0.366	Silver-Coated Copper	200°C	600伏
M22759/4-4-6	4	133/25	184	0.336	0.366	Silver-Coated Copper	200°C	600伏
M22759/4-4-7	4	133/25	184	0.336	0.366	Silver-Coated Copper	200°C	600伏
M22759/4-4-8	4	133/25	184	0.336	0.366	Silver-Coated Copper	200°C	600伏
M22759/4-4-9	4	133/25	184	0.336	0.366	Silver-Coated Copper	200°C	600伏
M22759/4-2-0	2	665/30	281	0.415	0.445	Silver-Coated Copper	200°C	600伏
M22759/4-2-1	2	665/30	281	0.415	0.445	Silver-Coated Copper	200°C	600伏
M22759/4-2-2	2	665/30	281	0.415	0.445	Silver-Coated Copper	200°C	600伏
M22759/4-2-3	2	665/30	281	0.415	0.445	Silver-Coated Copper	200°C	600伏
M22759/4-2-4	2	665/30	281	0.415	0.445	Silver-Coated Copper	200°C	600伏
M22759/4-2-5	2	665/30	281	0.415	0.445	Silver-Coated Copper	200°C	600伏
M22759/4-2-6	2	665/30	281	0.415	0.445	Silver-Coated Copper	200°C	600伏
M22759/4-2-7	2	665/30	281	0.415	0.445	Silver-Coated Copper	200°C	600伏
M22759/4-2-8	2	665/30	281	0.415	0.445	Silver-Coated Copper	200°C	600伏
M22759/4-2-9	2	665/30	281	0.415	0.445	Silver-Coated Copper	200°C	600伏
M22759/4-1-0	1	817/30	358	0.465	0.495	Silver-Coated Copper	200°C	600伏
M22759/4-1-1	1	817/30	358	0.465	0.495	Silver-Coated Copper	200°C	600伏
M22759/4-1-2	1	817/30	358	0.465	0.495	Silver-Coated Copper	200°C	600伏
M22759/4-1-3	1	817/30	358	0.465	0.495	Silver-Coated Copper	200°C	600伏
M22759/4-1-4	1	817/30	358	0.465	0.495	Silver-Coated Copper	200°C	600伏
M22759/4-1-5	1	817/30	358	0.465	0.495	Silver-Coated Copper	200°C	600伏
M22759/4-1-6	1	817/30	358	0.465	0.495	Silver-Coated Copper	200°C	600伏
M22759/4-1-7	1	817/30	358	0.465	0.495	Silver-Coated Copper	200°C	600伏
M22759/4-1-8	1	817/30	358	0.465	0.495	Silver-Coated Copper	200°C	600伏
M22759/4-1-9	1	817/30	358	0.465	0.495	Silver-Coated Copper	200°C	600伏
M22759/4-01-0	1/0	1045/30	436	0.5	0.55	Silver-Coated Copper	200°C	600伏
M22759/4-01-1	1/0	1045/30	436	0.5	0.55	Silver-Coated Copper	200°C	600伏
M22759/4-01-2	1/0	1045/30	436	0.5	0.55	Silver-Coated Copper	200°C	600伏
M22759/4-01-3	1/0	1045/30	436	0.5	0.55	Silver-Coated Copper	200°C	600伏
M22759/4-01-4	1/0	1045/30	436	0.5	0.55	Silver-Coated Copper	200°C	600伏
M22759/4-01-5	1/0	1045/30	436	0.5	0.55	Silver-Coated Copper	200°C	600伏
M22759/4-01-6	1/0	1045/30	436	0.5	0.55	Silver-Coated Copper	200°C	600伏
M22759/4-01-7	1/0	1045/30	436	0.5	0.55	Silver-Coated Copper	200°C	600伏
M22759/4-01-8	1/0	1045/30	436	0.5	0.55	Silver-Coated Copper	200°C	600伏
M22759/4-01-9	1/0	1045/30	436	0.5	0.55	Silver-Coated Copper	200°C	600伏
M22759/4-02-0	2/0	1330/30	554	0.56	0.61	Silver-Coated Copper	200°C	600伏
M22759/4-02-1	2/0	1330/30	554	0.56	0.61	Silver-Coated Copper	200°C	600伏
M22759/4-02-2	2/0	1330/30	554	0.56	0.61	Silver-Coated Copper	200°C	600伏
M22759/4-02-3	2/0	1330/30	554	0.56	0.61	Silver-Coated Copper	200°C	600伏
M22759/4-02-4	2/0	1330/30	554	0.56	0.61	Silver-Coated Copper	200°C	600伏
M22759/4-02-5	2/0	1330/30	554	0.56	0.61	Silver-Coated Copper	200°C	600伏
M22759/4-02-6	2/0	1330/30	554	0.56	0.61	Silver-Coated Copper	200°C	600伏
M22759/4-02-7	2/0	1330/30	554	0.56	0.61	Silver-Coated Copper	200°C	600伏
M22759/4-02-8	2/0	1330/30	554	0.56	0.61	Silver-Coated Copper	200°C	600伏
M22759/4-02-9	2/0	1330/30	554	0.56	0.61	Silver-Coated Copper	200°C	600伏
The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.
0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White
Example: Size 20, white - M22759/4-20-9; white with orange stripe -M22759/4-20-93.
