MIL-W-22759/7 | SAE AS22759/7

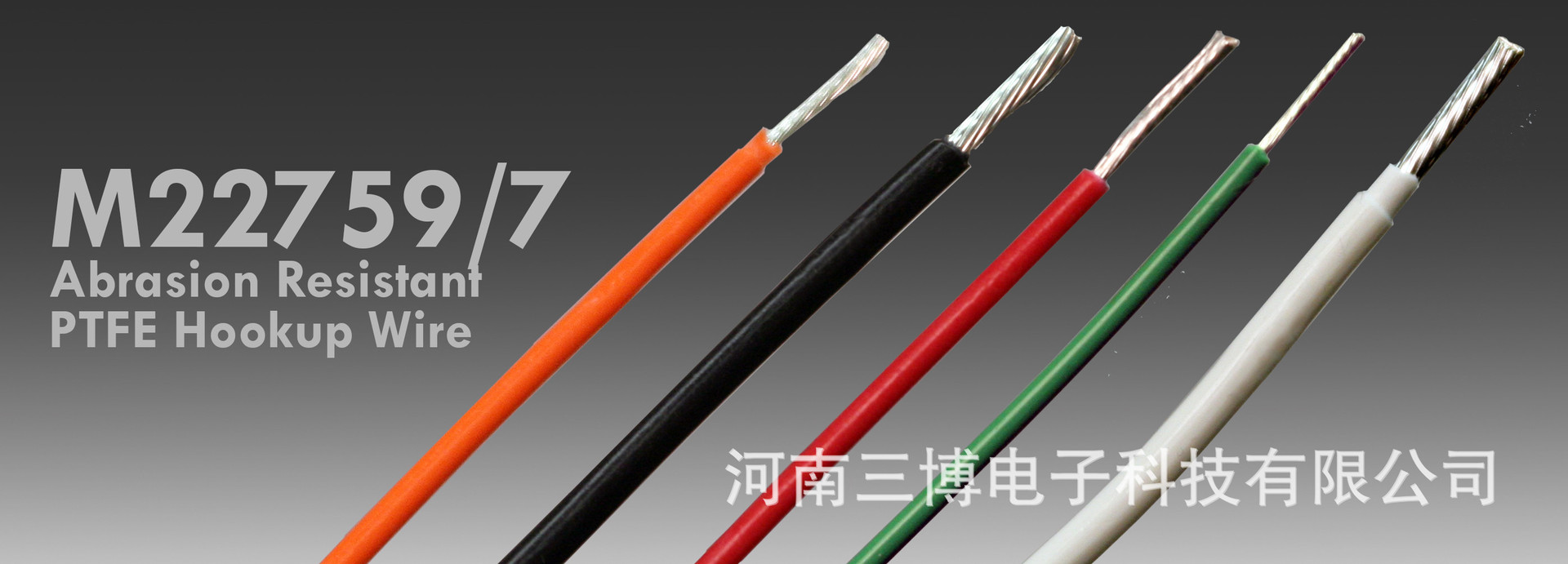

MIL-W-22759/7 (M22759/7)| SAE AS22759/7线缆
APPLICATIONS:High temperature applications such as aircraft engines and where increased abrasion resistance is required。 （应用：高温耐磨损应用，例如必须增加耐磨损性的飞机发动机应用）
Mineral filled PTFE provides excellent mechanical strength(矿物填充聚四氟乙烯提供了优异的机械强度)

M22759/7 wire may be used in several applications, including aircraft engines and wherever abrasion is present.

（M22759/7线缆可应用于飞机发动机项目以及其他军用民用政府机关领域的耐磨现实应用）
SAE AS22759/7 Wire
MIL Spec Wire
MIL-W-22759/7 Wire
M22759/7 Wire

CHARACTERISTICS:（产品特性）

M22759/7 Wire Construction:（m22759/7 线缆结构）

PRODUCT DESCRIPTION:（产品描述：）
Conductor: Stranded Silver Plated Copper（导体：绞合镀银铜）
Insulation: Mineral filled extruded PTFE insulation(绝缘体材质：矿物填充聚四氟乙烯）

medium weight（中等重量）
M22759/7 Wire Ratings:（m22759/7线缆等级）
Voltage: 600 Volts（额度电压：600伏特）
Temperature Range：-55°C to 200°C（温度范围：-55摄氏度到200摄氏度）
线规范围24-4
M27500 Component：  SA （m27500代码： SA)
Mil-Spec: M22759/7(军标代码：M22759/7）
SAE Spec：AS22759/7（SAE 代码：AS22759/7）
Insulation Material： Mineral filled extruded PTFE insulation(绝缘体材质：矿物填充聚四氟乙烯）



PART NUMBER AWG SIZE

Conductor Stranding

Approx LBS/MFT

Nom. Dia. of Cond.

min O.D.(in)

Max O.D. (in)

Cond. Material

Min.Temp

Max.Temp

Voltage

M22759/7-24-0

24

19/36

4.3

0.024

0.06

0.064

Silver Plated Copper

-55°C

200°C

600V

M22759/7-24-1

24

19/36

4.3

0.024

0.06

0.064

Silver Plated Copper

-55°C

200°C

600V

M22759/7-24-2

24

19/36

4.3

0.024

0.06

0.064

Silver Plated Copper

-55°C

200°C

600V

M22759/7-24-3

24

19/36

4.3

0.024

0.06

0.064

Silver Plated Copper

-55°C

200°C

600V

M22759/7-24-4

24

19/36

4.3

0.024

0.06

0.064

Silver Plated Copper

-55°C

200°C

600V

M22759/7-24-5

24

19/36

4.3

0.024

0.06

0.064

Silver Plated Copper

-55°C

200°C

600V

M22759/7-24-6

24

19/36

4.3

0.024

0.06

0.064

Silver Plated Copper

-55°C

200°C

600V

M22759/7-24-7

24

19/36

4.3

0.024

0.06

0.064

Silver Plated Copper

-55°C

200°C

600V

M22759/7-24-8

24

19/36

4.3

0.024

0.06

0.064

Silver Plated Copper

-55°C

200°C

600V

M22759/7-24-9

24

19/36

4.3

0.024

0.06

0.064

Silver Plated Copper

-55°C

200°C

600V

M22759/7-22-0

22

19/34

6

0.03

0.071

0.075

Silver Plated Copper

-55°C

200°C

600V

M22759/7-22-1

22

19/34

6

0.03

0.071

0.075

Silver Plated Copper

-55°C

200°C

600V

M22759/7-22-2

22

19/34

6

0.03

0.071

0.075

Silver Plated Copper

-55°C

200°C

600V

M22759/7-22-3

22

19/34

6

0.03

0.071

0.075

Silver Plated Copper

-55°C

200°C

600V

M22759/7-22-4

22

19/34

6

0.03

0.071

0.075

Silver Plated Copper

-55°C

200°C

600V

M22759/7-22-5

22

19/34

6

0.03

0.071

0.075

Silver Plated Copper

-55°C

200°C

600V

M22759/7-22-6

22

19/34

6

0.03

0.071

0.075

Silver Plated Copper

-55°C

200°C

600V

M22759/7-22-7

22

19/34

6

0.03

0.071

0.075

Silver Plated Copper

-55°C

200°C

600V

M22759/7-22-8

22

19/34

6

0.03

0.071

0.075

Silver Plated Copper

-55°C

200°C

600V

M22759/7-22-9

22

19/34

6

0.03

0.071

0.075

Silver Plated Copper

-55°C

200°C

600V

M22759/7-20-0

20

19/32

8.1

0.036

0.08

0.084

Silver Plated Copper

-55°C

200°C

600V

M22759/7-20-1

20

19/32

8.1

0.036

0.08

0.084

Silver Plated Copper

-55°C

200°C

600V

M22759/7-20-2

20

19/32

8.1

0.036

0.08

0.084

Silver Plated Copper

-55°C

200°C

600V

M22759/7-20-3

20

19/32

8.1

0.036

0.08

0.084

Silver Plated Copper

-55°C

200°C

600V

M22759/7-20-4

20

19/32

8.1

0.036

0.08

0.084

Silver Plated Copper

-55°C

200°C

600V

M22759/7-20-5

20

19/32

8.1

0.036

0.08

0.084

Silver Plated Copper

-55°C

200°C

600V

M22759/7-20-6

20

19/32

8.1

0.036

0.08

0.084

Silver Plated Copper

-55°C

200°C

600V

M22759/7-20-7

20

19/32

8.1

0.036

0.08

0.084

Silver Plated Copper

-55°C

200°C

600V

M22759/7-20-8

20

19/32

8.1

0.036

0.08

0.084

Silver Plated Copper

-55°C

200°C

600V

M22759/7-20-9

20

19/32

8.1

0.036

0.08

0.084

Silver Plated Copper

-55°C

200°C

600V

M22759/7-18-0

18

19/30

11

0.047

0.09

0.094

Silver Plated Copper

-55°C

200°C

600V

M22759/7-18-1

18

19/30

11

0.047

0.09

0.094

Silver Plated Copper

-55°C

200°C

600V

M22759/7-18-2

18

19/30

11

0.047

0.09

0.094

Silver Plated Copper

-55°C

200°C

600V

M22759/7-18-3

18

19/30

11

0.047

0.09

0.094

Silver Plated Copper

-55°C

200°C

600V

M22759/7-18-4

18

19/30

11

0.047

0.09

0.094

Silver Plated Copper

-55°C

200°C

600V

M22759/7-18-5

18

19/30

11

0.047

0.09

0.094

Silver Plated Copper

-55°C

200°C

600V

M22759/7-18-6

18

19/30

11

0.047

0.09

0.094

Silver Plated Copper

-55°C

200°C

600V

M22759/7-18-7

18

19/30

11

0.047

0.09

0.094

Silver Plated Copper

-55°C

200°C

600V

M22759/7-18-8

18

19/30

11

0.047

0.09

0.094

Silver Plated Copper

-55°C

200°C

600V

M22759/7-18-9

18

19/30

11

0.047

0.09

0.094

Silver Plated Copper

-55°C

200°C

600V

M22759/7-16-0

16

19/29

13.8

0.053

0.099

0.105

Silver Plated Copper

-55°C

200°C

600V

M22759/7-16-1

16

19/29

13.8

0.053

0.099

0.105

Silver Plated Copper

-55°C

200°C

600V

M22759/7-16-2

16

19/29

13.8

0.053

0.099

0.105

Silver Plated Copper

-55°C

200°C

600V

M22759/7-16-3

16

19/29

13.8

0.053

0.099

0.105

Silver Plated Copper

-55°C

200°C

600V

M22759/7-16-4

16

19/29

13.8

0.053

0.099

0.105

Silver Plated Copper

-55°C

200°C

600V

M22759/7-16-5

16

19/29

13.8

0.053

0.099

0.105

Silver Plated Copper

-55°C

200°C

600V

M22759/7-16-6

16

19/29

13.8

0.053

0.099

0.105

Silver Plated Copper

-55°C

200°C

600V

M22759/7-16-7

16

19/29

13.8

0.053

0.099

0.105

Silver Plated Copper

-55°C

200°C

600V

M22759/7-16-8

16

19/29

13.8

0.053

0.099

0.105

Silver Plated Copper

-55°C

200°C

600V

M22759/7-16-9

16

19/29

13.8

0.053

0.099

0.105

Silver Plated Copper

-55°C

200°C

600V

M22759/7-14-0

14

19/27

18.6

0.067

0.112

0.118

Silver Plated Copper

-55°C

200°C

600V

M22759/7-14-1

14

19/27

18.6

0.067

0.112

0.118

Silver Plated Copper

-55°C

200°C

600V

M22759/7-14-2

14

19/27

18.6

0.067

0.112

0.118

Silver Plated Copper

-55°C

200°C

600V

M22759/7-14-3

14

19/27

18.6

0.067

0.112

0.118

Silver Plated Copper

-55°C

200°C

600V

M22759/7-14-4

14

19/27

18.6

0.067

0.112

0.118

Silver Plated Copper

-55°C

200°C

600V

M22759/7-14-5

14

19/27

18.6

0.067

0.112

0.118

Silver Plated Copper

-55°C

200°C

600V

M22759/7-14-6

14

19/27

18.6

0.067

0.112

0.118

Silver Plated Copper

-55°C

200°C

600V

M22759/7-14-7

14

19/27

18.6

0.067

0.112

0.118

Silver Plated Copper

-55°C

200°C

600V

M22759/7-14-8

14

19/27

18.6

0.067

0.112

0.118

Silver Plated Copper

-55°C

200°C

600V

M22759/7-14-9

14

19/27

18.6

0.067

0.112

0.118

Silver Plated Copper

-55°C

200°C

600V

M22759/7-12-0

12

19/25

28.5

0.086

0.131

0.137

Silver Plated Copper

-55°C

200°C

600V

M22759/7-12-1

12

19/25

28.5

0.086

0.131

0.137

Silver Plated Copper

-55°C

200°C

600V

M22759/7-12-2

12

19/25

28.5

0.086

0.131

0.137

Silver Plated Copper

-55°C

200°C

600V

M22759/7-12-3

12

19/25

28.5

0.086

0.131

0.137

Silver Plated Copper

-55°C

200°C

600V

M22759/7-12-4

12

19/25

28.5

0.086

0.131

0.137

Silver Plated Copper

-55°C

200°C

600V

M22759/7-12-5

12

19/25

28.5

0.086

0.131

0.137

Silver Plated Copper

-55°C

200°C

600V

M22759/7-12-6

12

19/25

28.5

0.086

0.131

0.137

Silver Plated Copper

-55°C

200°C

600V

M22759/7-12-7

12

19/25

28.5

0.086

0.131

0.137

Silver Plated Copper

-55°C

200°C

600V

M22759/7-12-8

12

19/25

28.5

0.086

0.131

0.137

Silver Plated Copper

-55°C

200°C

600V

M22759/7-12-9

12

19/25

28.5

0.086

0.131

0.137

Silver Plated Copper

-55°C

200°C

600V

M22759/7-10-0

10

37/26

41.8

0.108

0.154

0.162

Silver Plated Copper

-55°C

200°C

600V

M22759/7-10-1

10

37/26

41.8

0.108

0.154

0.162

Silver Plated Copper

-55°C

200°C

600V

M22759/7-10-2

10

37/26

41.8

0.108

0.154

0.162

Silver Plated Copper

-55°C

200°C

600V

M22759/7-10-3

10

37/26

41.8

0.108

0.154

0.162

Silver Plated Copper

-55°C

200°C

600V

M22759/7-10-4

10

37/26

41.8

0.108

0.154

0.162

Silver Plated Copper

-55°C

200°C

600V

M22759/7-10-5

10

37/26

41.8

0.108

0.154

0.162

Silver Plated Copper

-55°C

200°C

600V

M22759/7-10-6

10

37/26

41.8

0.108

0.154

0.162

Silver Plated Copper

-55°C

200°C

600V

M22759/7-10-7

10

37/26

41.8

0.108

0.154

0.162

Silver Plated Copper

-55°C

200°C

600V

M22759/7-10-8

10

37/26

41.8

0.108

0.154

0.162

Silver Plated Copper

-55°C

200°C

600V

M22759/7-10-9

10

37/26

41.8

0.108

0.154

0.162

Silver Plated Copper

-55°C

200°C

600V

M22759/7-8-0

8

133/29

73.1

0.162

0.215

0.225

Silver Plated Copper

-55°C

200°C

600V

M22759/7-8-1

8

133/29

73.1

0.162

0.215

0.225

Silver Plated Copper

-55°C

200°C

600V

M22759/7-8-2

8

133/29

73.1

0.162

0.215

0.225

Silver Plated Copper

-55°C

200°C

600V

M22759/7-8-3

8

133/29

73.1

0.162

0.215

0.225

Silver Plated Copper

-55°C

200°C

600V

M22759/7-8-4

8

133/29

73.1

0.162

0.215

0.225

Silver Plated Copper

-55°C

200°C

600V

M22759/7-8-5

8

133/29

73.1

0.162

0.215

0.225

Silver Plated Copper

-55°C

200°C

600V

M22759/7-8-6

8

133/29

73.1

0.162

0.215

0.225

Silver Plated Copper

-55°C

200°C

600V

M22759/7-8-7

8

133/29

73.1

0.162

0.215

0.225

Silver Plated Copper

-55°C

200°C

600V

M22759/7-8-8

8

133/29

73.1

0.162

0.215

0.225

Silver Plated Copper

-55°C

200°C

600V

M22759/7-8-9

8

133/29

73.1

0.162

0.215

0.225

Silver Plated Copper

-55°C

200°C

600V

M22759/7-6-0

6

133/27

111

0.21

0.264

0.276

Silver Plated Copper

-55°C

200°C

600V

M22759/7-6-1

6

133/27

111

0.21

0.264

0.276

Silver Plated Copper

-55°C

200°C

600V

M22759/7-6-2

6

133/27

111

0.21

0.264

0.276

Silver Plated Copper

-55°C

200°C

600V

M22759/7-6-3

6

133/27

111

0.21

0.264

0.276

Silver Plated Copper

-55°C

200°C

600V

M22759/7-6-4

6

133/27

111

0.21

0.264

0.276

Silver Plated Copper

-55°C

200°C

600V

M22759/7-6-5

6

133/27

111

0.21

0.264

0.276

Silver Plated Copper

-55°C

200°C

600V

M22759/7-6-6

6

133/27

111

0.21

0.264

0.276

Silver Plated Copper

-55°C

200°C

600V

M22759/7-6-7

6

133/27

111

0.21

0.264

0.276

Silver Plated Copper

-55°C

200°C

600V

M22759/7-6-8

6

133/27

111

0.21

0.264

0.276

Silver Plated Copper

-55°C

200°C

600V

M22759/7-6-9

6

133/27

111

0.21

0.264

0.276

Silver Plated Copper

-55°C

200°C

600V

M22759/7-4-0

4

133/25

169

0.26

0.321

0.335

Silver Plated Copper

-55°C

200°C

600V

M22759/7-4-1

4

133/25

169

0.26

0.321

0.335

Silver Plated Copper

-55°C

200°C

600V

M22759/7-4-2

4

133/25

169

0.26

0.321

0.335

Silver Plated Copper

-55°C

200°C

600V

M22759/7-4-3

4

133/25

169

0.26

0.321

0.335

Silver Plated Copper

-55°C

200°C

600V

M22759/7-4-4

4

133/25

169

0.26

0.321

0.335

Silver Plated Copper

-55°C

200°C

600V

M22759/7-4-5

4

133/25

169

0.26

0.321

0.335

Silver Plated Copper

-55°C

200°C

600V

M22759/7-4-6

4

133/25

169

0.26

0.321

0.335

Silver Plated Copper

-55°C

200°C

600V

M22759/7-4-7

4

133/25

169

0.26

0.321

0.335

Silver Plated Copper

-55°C

200°C

600V

M22759/7-4-8

4

133/25

169

0.26

0.321

0.335

Silver Plated Copper

-55°C

200°C

600V

M22759/7-4-9

4

133/25

169

0.26

0.321

0.335

Silver Plated Copper

-55°C

200°C

600V

The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.

0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White

Example: Size 20, white - M22759/7-20-9; white with orange stripe -M22759/7-20-93.


分享：
点击在线咨询
热线电话：0371-55365505
上一条：MIL-W-22759/6 | SAE AS22759/6

下一条：MIL-DTL-22759/17 | SAE AS22759/17
正版授权 全球直送 低价保证 全国领先 客户信赖 技术支持 金牌客服
Coryright 三博电子 版权所有 All Right Reseved 豫ICP备15011473号
公司地址：郑州市中原区航海西路25号民安西上7号楼1单元605 网址：http://www.hnsanbo.cn
热线电话： 0371-55365505  传真：0371-86257077 邮箱：hnsanbo@163.com sales@hnsanbo.cn yunpeng.wu@hnsanbo.cn

豫公网安备 41010202002363号
