MIL-W-22759/9 | SAE AS22759/9

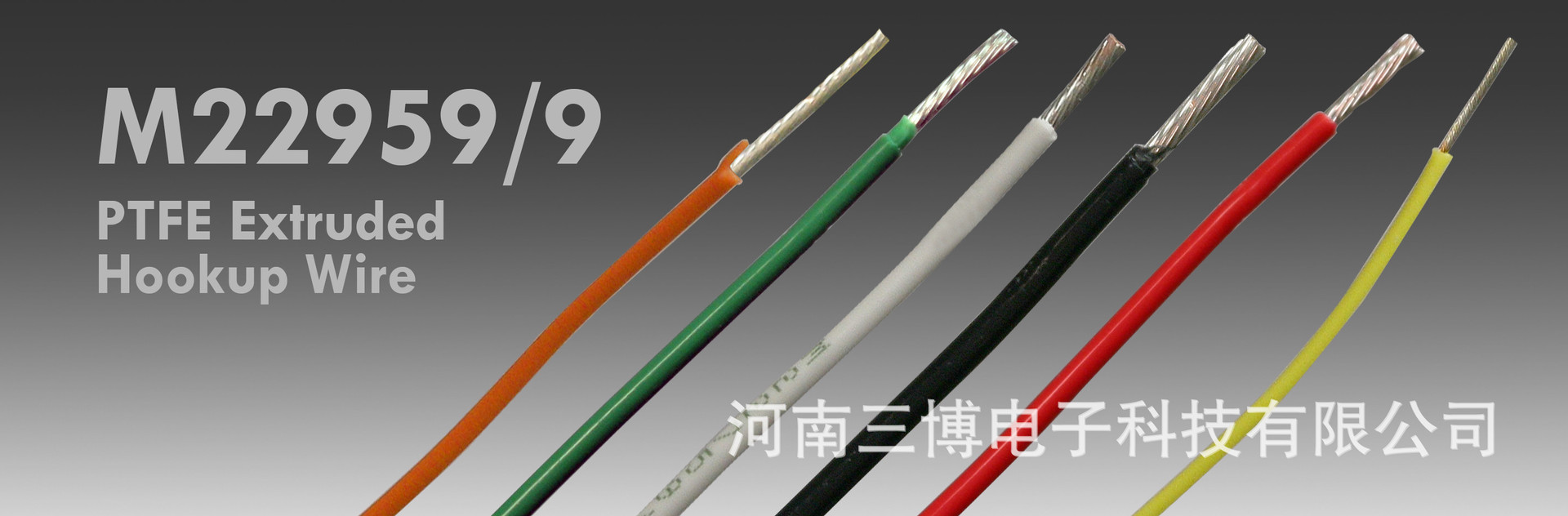

 MIL-W-22759/9 (M22759/9)| SAE AS22759/9线缆
APPLICATIONS:High temperature applications such as aircraft engines and where increased abrasion resistance is required。 （应用：高温耐磨损应用，例如飞机发动机应用及其他需要增加耐磨损性的方面）

The M22759/9 MIL Spec Wire may be used in aerospace applications or where high temperatures, smoke emission and flammability are a concern.（该M22759/9 MIL规格导线可以在航空航天应用或高温，烟尘排放和可燃性关注中。）

SAE AS22759/9 Wire  MIL Spec Wire
MIL-W-22759/9 Wire
M22759/9 Wire

Medium Wall（中壁厚）
 CHARACTERISTICS:（产品特性）
M22759/9 Wire Construction:（m22759/9 线缆结构）
PRODUCT DESCRIPTION:（产品描述：）
Conductor: Stranded Silver Plated Copper（导体：绞合镀银铜）
Insulation: Extruded Polytetrafluoroethylene (PTFE) insulation，.010 Nominal Wall Thickness(绝缘体材质：膨化聚四氟乙烯，0.1公称壁厚）

M22759/9 Wire Ratings:（m22759/9线缆等级）
Voltage: 1000 Volts（额度电压：1000伏特）
Temperature Range：-55°C to 200°C（温度范围：-55摄氏度到200摄氏度）
线规范围24-4
M27500 Component：  LE （m27500代码：LE)
Mil-Spec: M22759/9(军标代码：M22759/9）
SAE Spec：AS22759/9（SAE 代码：AS22759/9）
Insulation Material： extruded PTFE insulation(绝缘体材质：挤出聚四氟乙烯）

MIL-W-22759/9 Wire Identification:（MIL-W-22759/9线缆识别方法）

Green or white print on the insulation（绝缘体上有绿色货白色的印刷）
Military part number including AWG  （军标代码包括线规号）


PART NUMBER

AWG

Conductor Stranding

Approx LBS/MFT

Nom. Dia. of Cond.

min O.D. (in)

Max O.D. (in)

Cond. Material

Min. Temp

Max. Temp

Voltage

M22759/9-28-0

28

7/36

2

0.015

0.041

0.045

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-28-1

28

7/36

2

0.015

0.041

0.045

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-28-2

28

7/36

2

0.015

0.041

0.045

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-28-3

28

7/36

2

0.015

0.041

0.045

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-28-4

28

7/36

2

0.015

0.041

0.045

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-28-5

28

7/36

2

0.015

0.041

0.045

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-28-6

28

7/36

2

0.015

0.041

0.045

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-28-7

28

7/36

2

0.015

0.041

0.045

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-28-8

28

7/36

2

0.015

0.041

0.045

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-28-9

28

7/36

2

0.015

0.041

0.045

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-26-0

26

19/36

3

0.019

0.046

0.05

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-26-1

26

19/36

3

0.019

0.046

0.05

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-26-2

26

19/36

3

0.019

0.046

0.05

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-26-3

26

19/36

3

0.019

0.046

0.05

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-26-4

26

19/36

3

0.019

0.046

0.05

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-26-5

26

19/36

3

0.019

0.046

0.05

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-26-6

26

19/36

3

0.019

0.046

0.05

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-26-7

26

19/36

3

0.019

0.046

0.05

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-26-8

26

19/36

3

0.019

0.046

0.05

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-26-9

26

19/36

3

0.019

0.046

0.05

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-24-0

24

19/38

4

0.024

0.051

0.055

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-24-1

24

19/38

4

0.024

0.051

0.055

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-24-2

24

19/38

4

0.024

0.051

0.055

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-24-3

24

19/38

4

0.024

0.051

0.055

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-24-4

24

19/38

4

0.024

0.051

0.055

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-24-5

24

19/38

4

0.024

0.051

0.055

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-24-6

24

19/38

4

0.024

0.051

0.055

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-24-7

24

19/38

4

0.024

0.051

0.055

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-24-8

24

19/38

4

0.024

0.051

0.055

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-24-9

24

19/38

4

0.024

0.051

0.055

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-22-0

22

19/34

5

0.03

0.058

0.062

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-22-1

22

19/34

5

0.03

0.058

0.062

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-22-2

22

19/34

5

0.03

0.058

0.062

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-22-3

22

19/34

5

0.03

0.058

0.062

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-22-4

22

19/34

5

0.03

0.058

0.062

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-22-5

22

19/34

5

0.03

0.058

0.062

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-22-6

22

19/34

5

0.03

0.058

0.062

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-22-7

22

19/34

5

0.03

0.058

0.062

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-22-8

22

19/34

5

0.03

0.058

0.062

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-22-9

22

19/34

5

0.03

0.058

0.062

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-20-0

20

19/32

7

0.038

0.066

0.07

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-20-1

20

19/32

7

0.038

0.066

0.07

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-20-2

20

19/32

7

0.038

0.066

0.07

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-20-3

20

19/32

7

0.038

0.066

0.07

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-20-4

20

19/32

7

0.038

0.066

0.07

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-20-5

20

19/32

7

0.038

0.066

0.07

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-20-6

20

19/32

7

0.038

0.066

0.07

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-20-7

20

19/32

7

0.038

0.066

0.07

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-20-8

20

19/32

7

0.038

0.066

0.07

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-20-9

20

19/32

7

0.038

0.066

0.07

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-18-0

18

19/30

9

0.047

0.076

0.08

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-18-1

18

19/30

9

0.047

0.076

0.08

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-18-2

18

19/30

9

0.047

0.076

0.08

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-18-3

18

19/30

9

0.047

0.076

0.08

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-18-4

18

19/30

9

0.047

0.076

0.08

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-18-5

18

19/30

9

0.047

0.076

0.08

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-18-6

18

19/30

9

0.047

0.076

0.08

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-18-7

18

19/30

9

0.047

0.076

0.08

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-18-8

18

19/30

9

0.047

0.076

0.08

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-18-9

18

19/30

9

0.047

0.076

0.08

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-16-0

16

19/29

11

0.053

0.083

0.087

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-16-1

16

19/29

11

0.053

0.083

0.087

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-16-2

16

19/29

11

0.053

0.083

0.087

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-16-3

16

19/29

11

0.053

0.083

0.087

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-16-4

16

19/29

11

0.053

0.083

0.087

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-16-5

16

19/29

11

0.053

0.083

0.087

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-16-6

16

19/29

11

0.053

0.083

0.087

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-16-7

16

19/29

11

0.053

0.083

0.087

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-16-8

16

19/29

11

0.053

0.083

0.087

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-16-9

16

19/29

11

0.053

0.083

0.087

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-14-0

14

19/27

17

0.067

0.097

0.103

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-14-1

14

19/27

17

0.067

0.097

0.103

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-14-2

14

19/27

17

0.067

0.097

0.103

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-14-3

14

19/27

17

0.067

0.097

0.103

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-14-4

14

19/27

17

0.067

0.097

0.103

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-14-5

14

19/27

17

0.067

0.097

0.103

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-14-6

14

19/27

17

0.067

0.097

0.103

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-14-7

14

19/27

17

0.067

0.097

0.103

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-14-8

14

19/27

17

0.067

0.097

0.103

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-14-9

14

19/27

17

0.067

0.097

0.103

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-12-0

12

19/25

24

0.084

0.116

0.124

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-12-1

12

19/25

24

0.084

0.116

0.124

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-12-2

12

19/25

24

0.084

0.116

0.124

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-12-3

12

19/25

24

0.084

0.116

0.124

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-12-4

12

19/25

24

0.084

0.116

0.124

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-12-5

12

19/25

24

0.084

0.116

0.124

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-12-6

12

19/25

24

0.084

0.116

0.124

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-12-7

12

19/25

24

0.084

0.116

0.124

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-12-8

12

19/25

24

0.084

0.116

0.124

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-12-9

12

19/25

24

0.084

0.116

0.124

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-10-0

10

37/26

38

0.108

0.137

0.145

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-10-1

10

37/26

38

0.108

0.137

0.145

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-10-2

10

37/26

38

0.108

0.137

0.145

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-10-3

10

37/26

38

0.108

0.137

0.145

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-10-4

10

37/26

38

0.108

0.137

0.145

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-10-5

10

37/26

38

0.108

0.137

0.145

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-10-6

10

37/26

38

0.108

0.137

0.145

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-10-7

10

37/26

38

0.108

0.137

0.145

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-10-8

10

37/26

38

0.108

0.137

0.145

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-10-9

10

37/26

38

0.108

0.137

0.145

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-8-0

8

133/29

69

0.162

0.202

0.212

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-8-1

8

133/29

69

0.162

0.202

0.212

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-8-2

8

133/29

69

0.162

0.202

0.212

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-8-3

8

133/29

69

0.162

0.202

0.212

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-8-4

8

133/29

69

0.162

0.202

0.212

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-8-5

8

133/29

69

0.162

0.202

0.212

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-8-6

8

133/29

69

0.162

0.202

0.212

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-8-7

8

133/29

69

0.162

0.202

0.212

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-8-8

8

133/29

69

0.162

0.202

0.212

Silver Plated Copper

-55°C

200°C

1000V

M22759/9-8-9

8

133/29

69

0.162

0.202

0.212

Silver Plated Copper

-55°C

200°C

1000V

The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.

0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White

Example: Size 20, white - M22759/4-20-9; white with orange stripe -M22759/4-20-93.

分享：
点击在线咨询
热线电话：0371-55365505
上一条：MIL-W-22759/8 | SAE AS22759/8

下一条：MIL-DTL-22759/17 | SAE AS22759/17
正版授权 全球直送 低价保证 全国领先 客户信赖 技术支持 金牌客服
Coryright 三博电子 版权所有 All Right Reseved 豫ICP备15011473号
公司地址：郑州市中原区航海西路25号民安西上7号楼1单元605 网址：http://www.hnsanbo.cn
热线电话： 0371-55365505  传真：0371-86257077 邮箱：hnsanbo@163.com sales@hnsanbo.cn yunpeng.wu@hnsanbo.cn

豫公网安备 41010202002363号
