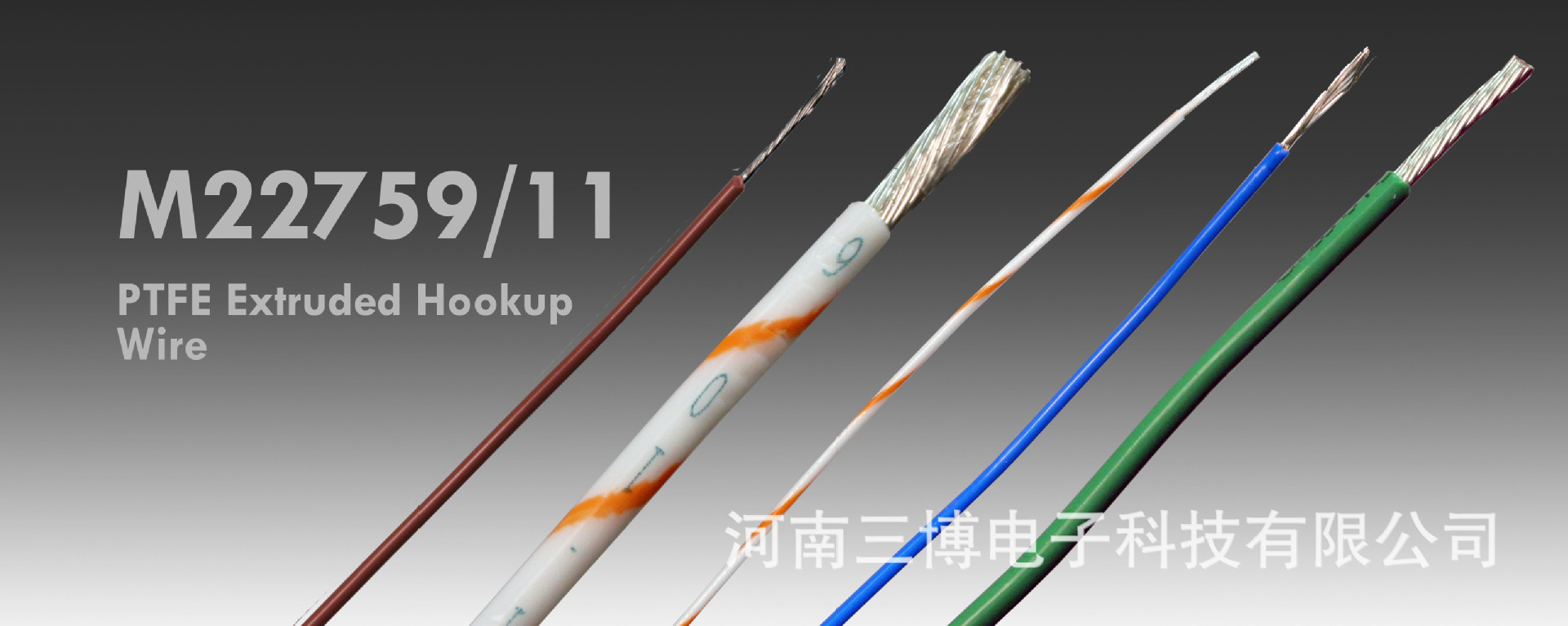

MIL-W-22759/11 (M22759/11)| SAE AS22759/11线缆
APPLICATIONS:High temperature applications such as aircraft engines and where increased abrasion resistance is required。 （应用：高温耐磨损应用，例如飞机发动机应用及其他需要增加耐磨损性的方面）

SAE AS22759/11 Wire  MIL Spec Wire
MIL-W-22759/11 Wire
M22759/11 Wire

standard wall

 CHARACTERISTICS:（产品特性）
M22759/11 Wire Construction:（m22759/11 线缆结构）
PRODUCT DESCRIPTION:（产品描述：）
Conductor: Stranded Silver Plated Copper（导体：绞合镀银铜）

M22759/11 Wire Ratings:（m22759/11线缆等级）
Voltage: 600 Volts（额度电压：600伏特）
Temperature Range：-55°C to 200°C（温度范围：-55摄氏度到200摄氏度）
线规范围28-8
M27500 Component：  RC （m27500代码：RC)
Mil-Spec: M22759/11(军标代码：M22759/11）
SAE Spec：AS22759/11（SAE 代码：AS22759/11）
Insulation Material： extruded PTFE insulation(绝缘体材质：挤出聚四氟乙烯）

Insulation：PTFE non-stick coating with .010 nominal wall thickness（绝缘：聚四氟乙烯不粘涂层与0.010公称壁厚）

MIL-W-22759/11 Wire Identification:（MIL-W-22759/11线缆识别方法）
Green or white print on the insulation（绝缘体上有绿色货白色的印刷）
Military part number including AWG  （军标代码包括线规号）

PART NUMBER

AWG SIZE

Conductor Stranding

Approx LBS/MFT

Nom. Dia. of Cond.(in)

min O.D. (in)

Max O.D. (in)

Cond. Material

Min. Temp

Max. Temp

Voltage

M22759/11-28-0

28

7/36

2

0.015

0.031

0.035

Silver Plated Copper

-55°C

200°C

600V

M22759/11-28-1

28

7/36

2

0.015

0.031

0.035

Silver Plated Copper

-55°C

200°C

600V

M22759/11-28-2

28

7/36

2

0.015

0.031

0.035

Silver Plated Copper

-55°C

200°C

600V

M22759/11-28-3

28

7/36

2

0.015

0.031

0.035

Silver Plated Copper

-55°C

200°C

600V

M22759/11-28-4

28

7/36

2

0.015

0.031

0.035

Silver Plated Copper

-55°C

200°C

600V

M22759/11-28-5

28

7/36

2

0.015

0.031

0.035

Silver Plated Copper

-55°C

200°C

600V

M22759/11-28-6

28

7/36

2

0.015

0.031

0.035

Silver Plated Copper

-55°C

200°C

600V

M22759/11-28-7

28

7/36

2

0.015

0.031

0.035

Silver Plated Copper

-55°C

200°C

600V

M22759/11-28-8

28

7/36

2

0.015

0.031

0.035

Silver Plated Copper

-55°C

200°C

600V

M22759/11-28-9

28

7/36

2

0.015

0.031

0.035

Silver Plated Copper

-55°C

200°C

600V

M22759/11-26-0

26

19/38

2

0.019

0.036

0.04

Silver Plated Copper

-55°C

200°C

600V

M22759/11-26-1

26

19/38

2

0.019

0.036

0.04

Silver Plated Copper

-55°C

200°C

600V

M22759/11-26-2

26

19/38

2

0.019

0.036

0.04

Silver Plated Copper

-55°C

200°C

600V

M22759/11-26-3

26

19/38

2

0.019

0.036

0.04

Silver Plated Copper

-55°C

200°C

600V

M22759/11-26-4

26

19/38

2

0.019

0.036

0.04

Silver Plated Copper

-55°C

200°C

600V

M22759/11-26-5

26

19/38

2

0.019

0.036

0.04

Silver Plated Copper

-55°C

200°C

600V

M22759/11-26-6

26

19/38

2

0.019

0.036

0.04

Silver Plated Copper

-55°C

200°C

600V

M22759/11-26-7

26

19/38

2

0.019

0.036

0.04

Silver Plated Copper

-55°C

200°C

600V

M22759/11-26-8

26

19/38

2

0.019

0.036

0.04

Silver Plated Copper

-55°C

200°C

600V

M22759/11-26-9

26

19/38

2

0.019

0.036

0.04

Silver Plated Copper

-55°C

200°C

600V

M22759/11-24-0

24

19/36

3

0.024

0.041

0.045

Silver Plated Copper

-55°C

200°C

600V

M22759/11-24-1

24

19/36

3

0.024

0.041

0.045

Silver Plated Copper

-55°C

200°C

600V

M22759/11-24-2

24

19/36

3

0.024

0.041

0.045

Silver Plated Copper

-55°C

200°C

600V

M22759/11-24-3

24

19/36

3

0.024

0.041

0.045

Silver Plated Copper

-55°C

200°C

600V

M22759/11-24-4

24

19/36

3

0.024

0.041

0.045

Silver Plated Copper

-55°C

200°C

600V

M22759/11-24-5

24

19/36

3

0.024

0.041

0.045

Silver Plated Copper

-55°C

200°C

600V

M22759/11-24-6

24

19/36

3

0.024

0.041

0.045

Silver Plated Copper

-55°C

200°C

600V

M22759/11-24-7

24

19/36

3

0.024

0.041

0.045

Silver Plated Copper

-55°C

200°C

600V

M22759/11-24-8

24

19/36

3

0.024

0.041

0.045

Silver Plated Copper

-55°C

200°C

600V

M22759/11-24-9

24

19/36

3

0.024

0.041

0.045

Silver Plated Copper

-55°C

200°C

600V

M22759/11-22-0

22

19/34

4

0.03

0.047

0.051

Silver Plated Copper

-55°C

200°C

600V

M22759/11-22-1

22

19/34

4

0.03

0.047

0.051

Silver Plated Copper

-55°C

200°C

600V

M22759/11-22-2

22

19/34

4

0.03

0.047

0.051

Silver Plated Copper

-55°C

200°C

600V

M22759/11-22-3

22

19/34

4

0.03

0.047

0.051

Silver Plated Copper

-55°C

200°C

600V

M22759/11-22-4

22

19/34

4

0.03

0.047

0.051

Silver Plated Copper

-55°C

200°C

600V

M22759/11-22-5

22

19/34

4

0.03

0.047

0.051

Silver Plated Copper

-55°C

200°C

600V

M22759/11-22-6

22

19/34

4

0.03

0.047

0.051

Silver Plated Copper

-55°C

200°C

600V

M22759/11-22-7

22

19/34

4

0.03

0.047

0.051

Silver Plated Copper

-55°C

200°C

600V

M22759/11-22-8

22

19/34

4

0.03

0.047

0.051

Silver Plated Copper

-55°C

200°C

600V

M22759/11-22-9

22

19/34

4

0.03

0.047

0.051

Silver Plated Copper

-55°C

200°C

600V

M22759/11-20-0

20

19/32

6

0.038

0.056

0.06

Silver Plated Copper

-55°C

200°C

600V

M22759/11-20-1

20

19/32

6

0.038

0.056

0.06

Silver Plated Copper

-55°C

200°C

600V

M22759/11-20-2

20

19/32

6

0.038

0.056

0.06

Silver Plated Copper

-55°C

200°C

600V

M22759/11-20-3

20

19/32

6

0.038

0.056

0.06

Silver Plated Copper

-55°C

200°C

600V

M22759/11-20-4

20

19/32

6

0.038

0.056

0.06

Silver Plated Copper

-55°C

200°C

600V

M22759/11-20-5

20

19/32

6

0.038

0.056

0.06

Silver Plated Copper

-55°C

200°C

600V

M22759/11-20-6

20

19/32

6

0.038

0.056

0.06

Silver Plated Copper

-55°C

200°C

600V

M22759/11-20-7

20

19/32

6

0.038

0.056

0.06

Silver Plated Copper

-55°C

200°C

600V

M22759/11-20-8

20

19/32

6

0.038

0.056

0.06

Silver Plated Copper

-55°C

200°C

600V

M22759/11-20-9

20

19/32

6

0.038

0.056

0.06

Silver Plated Copper

-55°C

200°C

600V

M22759/11-18-0

18

19/30

8

0.047

0.066

0.07

Silver Plated Copper

-55°C

200°C

600V

M22759/11-18-1

18

19/30

8

0.047

0.066

0.07

Silver Plated Copper

-55°C

200°C

600V

M22759/11-18-2

18

19/30

8

0.047

0.066

0.07

Silver Plated Copper

-55°C

200°C

600V

M22759/11-18-3

18

19/30

8

0.047

0.066

0.07

Silver Plated Copper

-55°C

200°C

600V

M22759/11-18-4

18

19/30

8

0.047

0.066

0.07

Silver Plated Copper

-55°C

200°C

600V

M22759/11-18-5

18

19/30

8

0.047

0.066

0.07

Silver Plated Copper

-55°C

200°C

600V

M22759/11-18-6

18

19/30

8

0.047

0.066

0.07

Silver Plated Copper

-55°C

200°C

600V

M22759/11-18-7

18

19/30

8

0.047

0.066

0.07

Silver Plated Copper

-55°C

200°C

600V

M22759/11-18-8

18

19/30

8

0.047

0.066

0.07

Silver Plated Copper

-55°C

200°C

600V

M22759/11-18-9

18

19/30

8

0.047

0.066

0.07

Silver Plated Copper

-55°C

200°C

600V

M22759/11-16-0

16

19/29

10

0.053

0.073

0.077

Silver Plated Copper

-55°C

200°C

600V

M22759/11-16-1

16

19/29

10

0.053

0.073

0.077

Silver Plated Copper

-55°C

200°C

600V

M22759/11-16-2

16

19/29

10

0.053

0.073

0.077

Silver Plated Copper

-55°C

200°C

600V

M22759/11-16-3

16

19/29

10

0.053

0.073

0.077

Silver Plated Copper

-55°C

200°C

600V

M22759/11-16-4

16

19/29

10

0.053

0.073

0.077

Silver Plated Copper

-55°C

200°C

600V

M22759/11-16-5

16

19/29

10

0.053

0.073

0.077

Silver Plated Copper

-55°C

200°C

600V

M22759/11-16-6

16

19/29

10

0.053

0.073

0.077

Silver Plated Copper

-55°C

200°C

600V

M22759/11-16-7

16

19/29

10

0.053

0.073

0.077

Silver Plated Copper

-55°C

200°C

600V

M22759/11-16-8

16

19/29

10

0.053

0.073

0.077

Silver Plated Copper

-55°C

200°C

600V

M22759/11-16-9

16

19/29

10

0.053

0.073

0.077

Silver Plated Copper

-55°C

200°C

600V

M22759/11-14-0

14

19/27

15

0.067

0.088

0.092

Silver Plated Copper

-55°C

200°C

600V

M22759/11-14-1

14

19/27

15

0.067

0.088

0.092

Silver Plated Copper

-55°C

200°C

600V

M22759/11-14-2

14

19/27

15

0.067

0.088

0.092

Silver Plated Copper

-55°C

200°C

600V

M22759/11-14-3

14

19/27

15

0.067

0.088

0.092

Silver Plated Copper

-55°C

200°C

600V

M22759/11-14-4

14

19/27

15

0.067

0.088

0.092

Silver Plated Copper

-55°C

200°C

600V

M22759/11-14-5

14

19/27

15

0.067

0.088

0.092

Silver Plated Copper

-55°C

200°C

600V

M22759/11-14-6

14

19/27

15

0.067

0.088

0.092

Silver Plated Copper

-55°C

200°C

600V

M22759/11-14-7

14

19/27

15

0.067

0.088

0.092

Silver Plated Copper

-55°C

200°C

600V

M22759/11-14-8

14

19/27

15

0.067

0.088

0.092

Silver Plated Copper

-55°C

200°C

600V

M22759/11-14-9

14

19/27

15

0.067

0.088

0.092

Silver Plated Copper

-55°C

200°C

600V

M22759/11-12-0

12

19/25

23

0.086

0.108

0.114

Silver Plated Copper

-55°C

200°C

600V

M22759/11-12-1

12

19/25

23

0.086

0.108

0.114

Silver Plated Copper

-55°C

200°C

600V

M22759/11-12-2

12

19/25

23

0.086

0.108

0.114

Silver Plated Copper

-55°C

200°C

600V

M22759/11-12-3

12

19/25

23

0.086

0.108

0.114

Silver Plated Copper

-55°C

200°C

600V

M22759/11-12-4

12

19/25

23

0.086

0.108

0.114

Silver Plated Copper

-55°C

200°C

600V

M22759/11-12-5

12

19/25

23

0.086

0.108

0.114

Silver Plated Copper

-55°C

200°C

600V

M22759/11-12-6

12

19/25

23

0.086

0.108

0.114

Silver Plated Copper

-55°C

200°C

600V

M22759/11-12-7

12

19/25

23

0.086

0.108

0.114

Silver Plated Copper

-55°C

200°C

600V

M22759/11-12-8

12

19/25

23

0.086

0.108

0.114

Silver Plated Copper

-55°C

200°C

600V

M22759/11-12-9

12

19/25

23

0.086

0.108

0.114

Silver Plated Copper

-55°C

200°C

600V

M22759/11-10-0

10

37/26

35

0.109

0.106

0.112

Silver Plated Copper

-55°C

200°C

600V

M22759/11-10-1

10

37/26

35

0.109

0.106

0.112

Silver Plated Copper

-55°C

200°C

600V

M22759/11-10-2

10

37/26

35

0.109

0.106

0.112

Silver Plated Copper

-55°C

200°C

600V

M22759/11-10-3

10

37/26

35

0.109

0.106

0.112

Silver Plated Copper

-55°C

200°C

600V

M22759/11-10-4

10

37/26

35

0.109

0.106

0.112

Silver Plated Copper

-55°C

200°C

600V

M22759/11-10-5

10

37/26

35

0.109

0.106

0.112

Silver Plated Copper

-55°C

200°C

600V

M22759/11-10-6

10

37/26

35

0.109

0.106

0.112

Silver Plated Copper

-55°C

200°C

600V

M22759/11-10-7

10

37/26

35

0.109

0.106

0.112

Silver Plated Copper

-55°C

200°C

600V

M22759/11-10-8

10

37/26

35

0.109

0.106

0.112

Silver Plated Copper

-55°C

200°C

600V

M22759/11-10-9

10

37/26

35

0.109

0.106

0.112

Silver Plated Copper

-55°C

200°C

600V

M22759/11-8-0

8

133/29

66

0.163

0.158

0.169

Silver Plated Copper

-55°C

200°C

600V

M22759/11-8-1

8

133/29

66

0.163

0.158

0.169

Silver Plated Copper

-55°C

200°C

600V

M22759/11-8-2

8

133/29

66

0.163

0.158

0.169

Silver Plated Copper

-55°C

200°C

600V

M22759/11-8-3

8

133/29

66

0.163

0.158

0.169

Silver Plated Copper

-55°C

200°C

600V

M22759/11-8-4

8

133/29

66

0.163

0.158

0.169

Silver Plated Copper

-55°C

200°C

600V

M22759/11-8-5

8

133/29

66

0.163

0.158

0.169

Silver Plated Copper

-55°C

200°C

600V

M22759/11-8-6

8

133/29

66

0.163

0.158

0.169

Silver Plated Copper

-55°C

200°C

600V

M22759/11-8-7

8

133/29

66

0.163

0.158

0.169

Silver Plated Copper

-55°C

200°C

600V

M22759/11-8-8

8

133/29

66

0.163

0.158

0.169

Silver Plated Copper

-55°C

200°C

600V

M22759/11-8-9

8

133/29

66

0.163

0.158

0.169

Silver Plated Copper

-55°C

200°C

600V

The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.

0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White

Example: Size 20, white - M22759/11-20-9; white with orange stripe -M22759/11-20-93.

分享：
点击在线咨询
热线电话：0371-55365505
上一条：MIL-W-22759/10 | SAE AS22759/10

下一条：MIL-DTL-22759/17 | SAE AS22759/17
正版授权 全球直送 低价保证 全国领先 客户信赖 技术支持 金牌客服
Coryright 三博电子 版权所有 All Right Reseved 豫ICP备15011473号
公司地址：郑州市中原区航海西路25号民安西上7号楼1单元605 网址：http://www.hnsanbo.cn
热线电话： 0371-55365505  传真：0371-86257077 邮箱：hnsanbo@163.com sales@hnsanbo.cn yunpeng.wu@hnsanbo.cn

豫公网安备 41010202002363号
