MIL-W-22759/14 | SAE AS22759/14

MIL-W-22759/14（m22759/14）| SAE AS22759/14
MIL-W-22759/14
SAE AS22729
MIL-Spec Wire

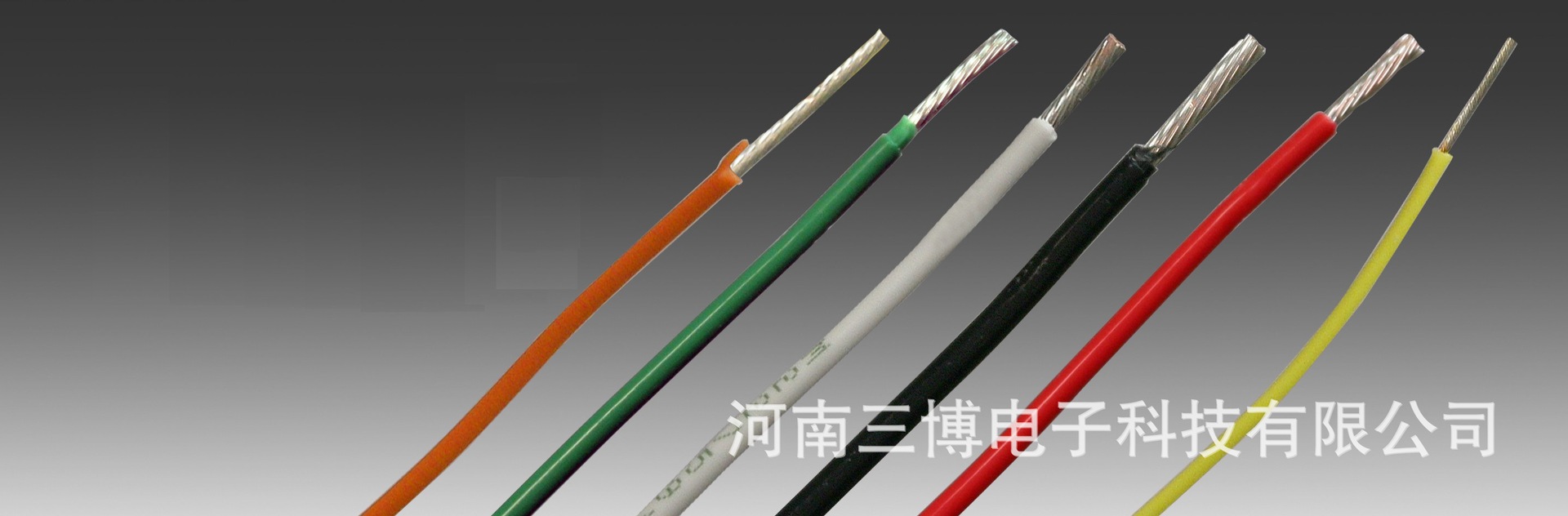

M22759/14 Cable Construction:(m22759/14 线缆结构)
Conductor: Tin Coated Copper(镀锡铜导体）
Insulation: Extruded FEP（绝缘：聚全氟乙丙烯（FEP）
Jacket:  PVDF（护套：聚偏氟乙烯（PVDF）
M22759/14 Cable Ratings:（m22759线缆等级）
Voltage Rating: 600 Volts（额定电压：600伏）
M22759/14Temperature Rating: 135°C（m22759/14额定温度：135摄氏度）
M27500 Component：  CB （m27500代码：CB)
线规范围26-12





PART NUMBER

AWG

Conductor Stranding

Approx LBS/MFT

Nom. Dia. of Cond.

min O.D. (in)

Max O.D. (in)

Cond. Material

Min. Temp

Max. Temp

Voltage

m22759/14-26-0

26

19/38

1.8

0.019

0.035

0.039

Tin Coated Copper

-55°C

135°C

600V

m22759/14-26-1

26

19/38

1.8

0.019

0.035

0.039

Tin Coated Copper

-55°C

135°C

600V

m22759/14-26-2

26

19/38

1.8

0.019

0.035

0.039

Tin Coated Copper

-55°C

135°C

600V

m22759/14-26-3

26

19/38

1.8

0.019

0.035

0.039

Tin Coated Copper

-55°C

135°C

600V

m22759/14-26-4

26

19/38

1.8

0.019

0.035

0.039

Tin Coated Copper

-55°C

135°C

600V

m22759/14-26-5

26

19/38

1.8

0.019

0.035

0.039

Tin Coated Copper

-55°C

135°C

600V

m22759/14-26-6

26

19/38

1.8

0.019

0.035

0.039

Tin Coated Copper

-55°C

135°C

600V

m22759/14-26-7

26

19/38

1.8

0.019

0.035

0.039

Tin Coated Copper

-55°C

135°C

600V

m22759/14-26-8

26

19/38

1.8

0.019

0.035

0.039

Tin Coated Copper

-55°C

135°C

600V

m22759/14-26-9

26

19/38

1.8

0.019

0.035

0.039

Tin Coated Copper

-55°C

135°C

600V

m22759/14-24-0

24

19/36

2.47

0.024

0.04

0.044

Tin Coated Copper

-55°C

135°C

600V

m22759/14-24-1

24

19/36

2.47

0.024

0.04

0.044

Tin Coated Copper

-55°C

135°C

600V

m22759/14-24-2

24

19/36

2.47

0.024

0.04

0.044

Tin Coated Copper

-55°C

135°C

600V

m22759/14-24-3

24

19/36

2.47

0.024

0.04

0.044

Tin Coated Copper

-55°C

135°C

600V

m22759/14-24-4

24

19/36

2.47

0.024

0.04

0.044

Tin Coated Copper

-55°C

135°C

600V

m22759/14-24-5

24

19/36

2.47

0.024

0.04

0.044

Tin Coated Copper

-55°C

135°C

600V

m22759/14-24-6

24

19/36

2.47

0.024

0.04

0.044

Tin Coated Copper

-55°C

135°C

600V

m22759/14-24-7

24

19/36

2.47

0.024

0.04

0.044

Tin Coated Copper

-55°C

135°C

600V

m22759/14-24-8

24

19/36

2.47

0.024

0.04

0.044

Tin Coated Copper

-55°C

135°C

600V

m22759/14-24-9

24

19/36

2.47

0.024

0.04

0.044

Tin Coated Copper

-55°C

135°C

600V

m22759/14-22-0

22

19/34

3.53

0.03

0.045

0.051

Tin Coated Copper

-55°C

135°C

600V

m22759/14-22-1

22

19/34

3.53

0.03

0.045

0.051

Tin Coated Copper

-55°C

135°C

600V

m22759/14-22-2

22

19/34

3.53

0.03

0.045

0.051

Tin Coated Copper

-55°C

135°C

600V

m22759/14-22-3

22

19/34

3.53

0.03

0.045

0.051

Tin Coated Copper

-55°C

135°C

600V

m22759/14-22-4

22

19/34

3.53

0.03

0.045

0.051

Tin Coated Copper

-55°C

135°C

600V

m22759/14-22-5

22

19/34

3.53

0.03

0.045

0.051

Tin Coated Copper

-55°C

135°C

600V

m22759/14-22-6

22

19/34

3.53

0.03

0.045

0.051

Tin Coated Copper

-55°C

135°C

600V

m22759/14-22-7

22

19/34

3.53

0.03

0.045

0.051

Tin Coated Copper

-55°C

135°C

600V

m22759/14-22-8

22

19/34

3.53

0.03

0.045

0.051

Tin Coated Copper

-55°C

135°C

600V

m22759/14-22-9

22

19/34

3.53

0.03

0.045

0.051

Tin Coated Copper

-55°C

135°C

600V

m22759/14-20-0

20

19/32

5.13

0.038

0.053

0.059

Tin Coated Copper

-55°C

135°C

600V

m22759/14-20-1

20

19/32

5.13

0.038

0.053

0.059

Tin Coated Copper

-55°C

135°C

600V

m22759/14-20-2

20

19/32

5.13

0.038

0.053

0.059

Tin Coated Copper

-55°C

135°C

600V

m22759/14-20-3

20

19/32

5.13

0.038

0.053

0.059

Tin Coated Copper

-55°C

135°C

600V

m22759/14-20-4

20

19/32

5.13

0.038

0.053

0.059

Tin Coated Copper

-55°C

135°C

600V

m22759/14-20-5

20

19/32

5.13

0.038

0.053

0.059

Tin Coated Copper

-55°C

135°C

600V

m22759/14-20-6

20

19/32

5.13

0.038

0.053

0.059

Tin Coated Copper

-55°C

135°C

600V

m22759/14-20-7

20

19/32

5.13

0.038

0.053

0.059

Tin Coated Copper

-55°C

135°C

600V

m22759/14-20-8

20

19/32

5.13

0.038

0.053

0.059

Tin Coated Copper

-55°C

135°C

600V

m22759/14-20-9

20

19/32

5.13

0.038

0.053

0.059

Tin Coated Copper

-55°C

135°C

600V

m22759/14-18-0

18

19/30

7.64

0.047

0.063

0.069

Tin Coated Copper

-55°C

135°C

600V

m22759/14-18-1

18

19/30

7.64

0.047

0.063

0.069

Tin Coated Copper

-55°C

135°C

600V

m22759/14-18-2

18

19/30

7.64

0.047

0.063

0.069

Tin Coated Copper

-55°C

135°C

600V

m22759/14-18-3

18

19/30

7.64

0.047

0.063

0.069

Tin Coated Copper

-55°C

135°C

600V

m22759/14-18-4

18

19/30

7.64

0.047

0.063

0.069

Tin Coated Copper

-55°C

135°C

600V

m22759/14-18-5

18

19/30

7.64

0.047

0.063

0.069

Tin Coated Copper

-55°C

135°C

600V

m22759/14-18-6

18

19/30

7.64

0.047

0.063

0.069

Tin Coated Copper

-55°C

135°C

600V

m22759/14-18-7

18

19/30

7.64

0.047

0.063

0.069

Tin Coated Copper

-55°C

135°C

600V

m22759/14-18-8

18

19/30

7.64

0.047

0.063

0.069

Tin Coated Copper

-55°C

135°C

600V

m22759/14-18-9

18

19/30

7.64

0.047

0.063

0.069

Tin Coated Copper

-55°C

135°C

600V

m22759/14-16-0

16

19/29

9.34

0.053

0.067

0.075

Tin Coated Copper

-55°C

135°C

600V

m22759/14-16-1

16

19/29

9.34

0.053

0.067

0.075

Tin Coated Copper

-55°C

135°C

600V

m22759/14-16-2

16

19/29

9.34

0.053

0.067

0.075

Tin Coated Copper

-55°C

135°C

600V

m22759/14-16-3

16

19/29

9.34

0.053

0.067

0.075

Tin Coated Copper

-55°C

135°C

600V

m22759/14-16-4

16

19/29

9.34

0.053

0.067

0.075

Tin Coated Copper

-55°C

135°C

600V

m22759/14-16-5

16

19/29

9.34

0.053

0.067

0.075

Tin Coated Copper

-55°C

135°C

600V

m22759/14-16-6

16

19/29

9.34

0.053

0.067

0.075

Tin Coated Copper

-55°C

135°C

600V

m22759/14-16-7

16

19/29

9.34

0.053

0.067

0.075

Tin Coated Copper

-55°C

135°C

600V

m22759/14-16-8

16

19/29

9.34

0.053

0.067

0.075

Tin Coated Copper

-55°C

135°C

600V

m22759/14-16-9

16

19/29

9.34

0.053

0.067

0.075

Tin Coated Copper

-55°C

135°C

600V

m22759/14-14-0

14

19/27

14.4

0.067

0.083

0.091

Tin Coated Copper

-55°C

135°C

600V

m22759/14-14-1

14

19/27

14.4

0.067

0.083

0.091

Tin Coated Copper

-55°C

135°C

600V

m22759/14-14-2

14

19/27

14.4

0.067

0.083

0.091

Tin Coated Copper

-55°C

135°C

600V

m22759/14-14-3

14

19/27

14.4

0.067

0.083

0.091

Tin Coated Copper

-55°C

135°C

600V

m22759/14-14-4

14

19/27

14.4

0.067

0.083

0.091

Tin Coated Copper

-55°C

135°C

600V

m22759/14-14-5

14

19/27

14.4

0.067

0.083

0.091

Tin Coated Copper

-55°C

135°C

600V

m22759/14-14-6

14

19/27

14.4

0.067

0.083

0.091

Tin Coated Copper

-55°C

135°C

600V

m22759/14-14-7

14

19/27

14.4

0.067

0.083

0.091

Tin Coated Copper

-55°C

135°C

600V

m22759/14-14-8

14

19/27

14.4

0.067

0.083

0.091

Tin Coated Copper

-55°C

135°C

600V

m22759/14-14-9

14

19/27

14.4

0.067

0.083

0.091

Tin Coated Copper

-55°C

135°C

600V

m22759/14-12-0

12

37/28

22.3

0.086

0.103

0.111

Tin Coated Copper

-55°C

135°C

600V

m22759/14-12-1

12

37/28

22.3

0.086

0.103

0.111

Tin Coated Copper

-55°C

135°C

600V

m22759/14-12-2

12

37/28

22.3

0.086

0.103

0.111

Tin Coated Copper

-55°C

135°C

600V

m22759/14-12-3

12

37/28

22.3

0.086

0.103

0.111

Tin Coated Copper

-55°C

135°C

600V

m22759/14-12-4

12

37/28

22.3

0.086

0.103

0.111

Tin Coated Copper

-55°C

135°C

600V

m22759/14-12-5

12

37/28

22.3

0.086

0.103

0.111

Tin Coated Copper

-55°C

135°C

600V

m22759/14-12-6

12

37/28

22.3

0.086

0.103

0.111

Tin Coated Copper

-55°C

135°C

600V

m22759/14-12-7

12

37/28

22.3

0.086

0.103

0.111

Tin Coated Copper

-55°C

135°C

600V

m22759/14-12-8

12

37/28

22.3

0.086

0.103

0.111

Tin Coated Copper

-55°C

135°C

600V

m22759/14-12-9

12

37/28

22.3

0.086

0.103

0.111

Tin Coated Copper

-55°C

135°C

600V

The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.
0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White
Example: Size 20, white - M22759/10-20-9; white with orange stripe -M22759/10-20-93.
