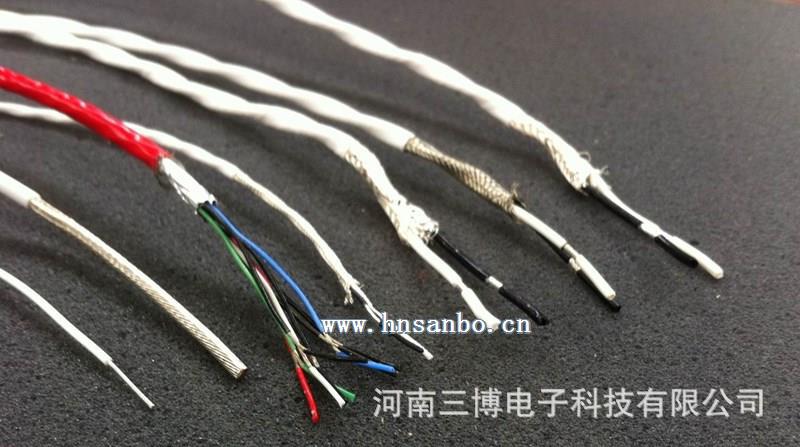

波音BMS13-48线缆挤出交联ETFE



Boeing BMS 13-48 Extruded Cross-Linked ETFE
BMS 13-48 Extruded Cross-Linked ETFE
Aircraft Cable, Aerospace Cable

BMS 13-48 Extruded Cross-Linked ETFE Application:

General use in various areas of aircrafts
BMS 13-48 Extruded Cross-Linked ETFE Voltage Rating:

600 Volts



波音BMS13-48挤出交联ETFE
BMS13-48挤出交联ETFE
飞机电缆，航空航天电缆

BMS13-48挤出交联ETFE应用：

普遍应用于飞机使用的各个领域。

BMS13-48挤出交联ETFE额定电压：

600伏

BMS13-48 Specification
Approved by Boeing, the BMS13-48 specification establishes the requirements for insulated wire and cable with tin-coated, nickel-coated, and silver-coated copper conductors, nickel-coated and silver-coated high strength copper alloy conductors and a primary insulation of cross-linked Ethylenetetrafluoroethylene (ETFE). Intended for "General Purpose" use in both pressurized and unpressurized areas of aircraft, this product's application can withstand exposure to temperatures from -65 C to +150 C and various corrosive fluids. When operating with circuits where this wire and cable is utilized the voltage rating will be limited to 600Vrms, and during a continuous operation the stabilized conductor temperature will be limited to 150C.

 bms13-48规范
通过波音公司的bms13-48规范建立了绝缘电线电缆用镀锡、镀镍的要求，和镀银铜导体，镀镍、镀银的高强度铜合金导体，交联乙烯一四氟乙烯共聚物（ETFE）主绝缘。意为“在飞机的加压和非加压的地区使用通用”，该产品的应用可以承受从65°C至150 C和各种腐蚀性流体的温度。当操作电路，电线电缆用于额定电压将被限制在600vrms，在连续运行的稳定导体温度将限于150C。

Part#

Class

Conductor

Conductor Count

Gauge

Insulation

Temp

Type

Voltage

BMS13-48T10C01G022-Type 10 Class 1 22 AWG

1

Tin Coated Annealed Copper

1

22

XL ETFE

150° C

10

600

BMS13-48T10C01G020 -Type 10 Class 01 Gauge 20

1

Tin Coated Annealed Copper

1

20

XL ETFE

150° C

10

600

BMS13-48T05C02G016 -Type 05 Class 02 AWG 16

2

Silver Coated High Strength Copper Alloy

2

16

XL ETFE

150° C

5

600

BMS13-48T10C01G024 -Type 10 Class 01 Gauge 24

1

Tin Coated Annealed Copper

1

24

XL ETFE

150° C

10

600

BMS13-48T28C02G024 -Type 28 Class 02 AWG 24

2

Silver Coated High Strength Copper Alloy

2

24

XL ETFE

150° C

28

600

BMS13-48T10C01G016 -Type 10 Class 01 Gauge 16

1

Tin Coated Annealed Copper

1

16

XL ETFE

150° C

10

600

BMS13-48T08C01G020 -Type 08 Class 01 Gauge 20

1

Tin Coated Annealed Copper

1

20

XL ETFE

150° C

8

600

BMS13-48T03C02G022 -Type 03 Class 02 AWG 22

2

Tin Coated Annealed Copper

2

22

XL ETFE

150° C

3

600

BMS13-48T03C02G020 -Type 03 Class 02 AWG 20

2

Tin Coated Annealed Copper

2

20

XL ETFE

150° C

3

600

BMS13-48T27C02G022 -Type 27 Class 02 AWG 22

2

Tin Coated Annealed Copper

2

22

XL ETFE

150° C

27

600

BMS13-48T11C01G022 -Type 11 Class 01 Gauge 22

1

Silver Coated High Strength Copper Alloy

1

22

XL ETFE

150° C

11

600

BMS13-48T08C01G022 -Type 08 Class 01 Gauge 22

1

Tin Coated Annealed Copper

1

22

XL ETFE

150° C

8

600

BMS13-48T10C01G010 -Type 10 Class 01 Gauge 10

1

Tin Coated Annealed Copper

1

10

XL ETFE

150° C

10

600

BMS13-48T12C02G022 -Type 12 Class 02 AWG 22

2

Tin Coated Annealed Copper

2

22

XL ETFE

150° C

12

600

BMS13-48T03C01G022 -Type 03 Class 01 Gauge 22

1

Tin Coated Annealed Copper

1

22

XL ETFE

150° C

3

600

BMS13-48T10C01G012 -Type 10 Class 01 Gauge 12

1

Tin Coated Annealed Copper

1

12

XL ETFE

150° C

10

600

BMS13-48T10C01G008 -Type 10 Class 01 Gauge 8

1

Tin Coated Annealed Copper

1

8

XL ETFE

150° C

10

600

BMS13-48T08C01G016 -Type 08 Class 01 Gauge 16

1

Tin Coated Annealed Copper

1

16

XL ETFE

150° C

8

600

BMS13-48T12C02G020 -Type 12 Class 02 AWG 20

2

Tin Coated Annealed Copper

2

20

XL ETFE

150° C

12

600

BMS13-48T11C01G024 -Type 11 Class 01 Gauge 24

1

Silver Coated High Strength Copper Alloy

1

24

XL ETFE

150° C

11

600

BMS13-48T12C04G022 -Type 12 Class 04 AWG 22

4

Tin Coated Annealed Copper

4

22

XL ETFE

150° C

12

600

BMS13-48T12C03G022 -Type 12 Class 03 Gauge 22

3

Tin Coated Annealed Copper

3

22

XL ETFE

150° C

12

600

BMS13-48T24C02G020 -Type 24 Class 02 AWG 20

2

Nickel Coated High Strength Copper Alloy

2

20

XL ETFE

150° C

24

600

BMS13-48T12C02G024 -Type 12 Class 02 AWG 24

2

Tin Coated Annealed Copper

2

24

XL ETFE

150° C

12

600

BMS13-48T10C02G022 -Type 10 Class 02 AWG 22

2

Tin Coated Annealed Copper

2

22

XL ETFE

150° C

10

600

BMS13-48T03C01G020 -Type 03 Class 01 Gauge 20

1

Tin Coated Annealed Copper

1

20

XL ETFE

150° C

3

600

BMS13-48T03C03G022 -Type 03 Class 03 Gauge 22

3

Tin Coated Annealed Copper

3

22

XL ETFE

150° C

3

600

BMS13-48T09C01G024 -Type 09 Class 01 Gauge 24

1

Silver Coated High Strength Copper Alloy

1

24

XL ETFE

150° C

9

600

BMS13-48T03C03G020 -Type 03 Class 03 Gauge 20

3

Tin Coated Annealed Copper

3

20

XL ETFE

150° C

3

600

BMS13-48T12C04G020 -Type 12 Class 04 AWG 20

4

Tin Coated Annealed Copper

4

20

XL ETFE

150° C

12

600

BMS13-48T15C04G016 -Type 15 Class 04 AWG 16

4

Tin Coated Annealed Copper

4

16

XL ETFE

150° C

15

600

BMS13-48T10C01G014 -Type 10 Class 01 Gauge 14

1

Tin Coated Annealed Copper

1

14

XL ETFE

150° C

10

600

BMS13-48T08C01G018 -Type 08 Class 01 Gauge 18

1

Tin Coated Annealed Copper

1

18

XL ETFE

150° C

8

600

BMS13-48T03C05G024 -Type 03 Class 05 Gauge 24

5

Tin Coated Annealed Copper

5

24

XL ETFE

150° C

3

600

BMS13-48T12C03G020 -Type 12 Class 03 Gauge 20

3

Tin Coated Annealed Copper

3

20

XL ETFE

150° C

12

600

BMS13-48T08C02G020 -Type 08 Class 02 AWG 20

2

Tin Coated Annealed Copper

2

20

XL ETFE

150° C

8

600

BMS13-48T08C01G012 -Type 08 Class 01 Gauge 12

1

Tin Coated Annealed Copper

1

12

XL ETFE

150° C

8

600

BMS13-48T11C02G024 -Type 11 Class 02 AWG 24

2

Silver Coated High Strength Copper Alloy

2

24

XL ETFE

150° C

11

600

BMS13-48T08C01G008 -Type 08 Class 01 Gauge 8

1

Tin Coated Annealed Copper

1

8

XL ETFE

150° C

8

600

BMS13-48T10C01G006 -Type 10 Class 01 Gauge 6

1

Tin Coated Annealed Copper

1

6

XL ETFE

150° C

10

600

BMS13-48T10C01G018 -Type 10 Class 01 Gauge 18

1

Tin Coated Annealed Copper

1

18

XL ETFE

150° C

10

600

BMS13-48T28C02G022 -Type 28 Class 02 AWG 22

2

Silver Coated High Strength Copper Alloy

2

22

XL ETFE

150° C

28

600

BMS13-48T12C01G020 -Type 12 Class 01 Gauge 20

1

Tin Coated Annealed Copper

1

20

XL ETFE

150° C

12

600

BMS13-48T32C03G022 -Type 32 Class 03 Gauge 22

3

Nickel Coated High Strength Copper Alloy

3

22

XL ETFE

150° C

32

600

BMS13-48T25C04G016 -Type 25 Class 04 AWG 16

4

Tin Coated Annealed Copper

4

16

XL ETFE

150° C

25

600

BMS13-48T03C05G020 -Type 03 Class 05 Gauge 20

5

Tin Coated Annealed Copper

5

20

XL ETFE

150° C

3

600

BMS13-48T10C03G022 -Type 10 Class 03 Gauge 22

3

Tin Coated Annealed Copper

3

22

XL ETFE

150° C

10

600

BMS13-48T13C01G022 -Type 13 Class 01 Gauge 22

1

Silver Coated High Strength Copper Alloy

1

22

XL ETFE

150° C

13

600

BMS13-48T32C02G022 -Type 32 Class 02 AWG 22

2

Nickel Coated High Strength Copper Alloy

2

22

XL ETFE

150° C

32

600

BMS13-48T12C01G022 -Type 12 Class 01 Gauge 22

1

Tin Coated Annealed Copper

1

22

XL ETFE

150° C

12

600

BMS13-48T10C03G020 -Type 10 Class 03 Gauge 20

3

Tin Coated Annealed Copper

3

20

XL ETFE

150° C

10

600

BMS13-48T08C01G024 -Type 08 Class 01 Gauge 24

1

Tin Coated Annealed Copper

1

24

XL ETFE

150° C

8

600

BMS13-48T10C03G018 -Type 10 Class 03 Gauge 18

3

Tin Coated Annealed Copper

3

18

XL ETFE

150° C

10

600

BMS13-48T10C03G012 -Type 10 Class 03 Gauge 12

3

Tin Coated Annealed Copper

3

12

XL ETFE

150° C

10

600

BMS13-48T32C02G024 -Type 32 Class 02 AWG 24

2

Nickel Coated High Strength Copper Alloy

2

24

XL ETFE

150° C

32

600

BMS13-48T01C01G016 -Type 01 Class 01 Gauge 16

1

Tin Coated Annealed Copper

1

16

XL ETFE

150° C

1

600

BMS13-48T27C01G022 -Type 27 Class 01 Gauge 22

1

Tin Coated Annealed Copper

1

22

XL ETFE

150° C

27

600

BMS13-48T08C01G010 -Type 08 Class 01 Gauge 10

1

Tin Coated Annealed Copper

1

10

XL ETFE

150° C

8

600

BMS13-48T03C01G016 -Type 03 Class 01 Gauge 16

1

Tin Coated Annealed Copper

1

16

XL ETFE

150° C

3

600

BMS13-48T32C01G022 -Type 32 Class 01 Gauge 22

1

Nickel Coated High Strength Copper Alloy

1

22

XL ETFE

150° C

32

600

BMS13-48T10C02G020 -Type 10 Class 02 AWG 20

2

Tin Coated Annealed Copper

2

20

XL ETFE

150° C

10

600

BMS13-48T10C02G018 -Type 10 Class 02 AWG 18

2

Tin Coated Annealed Copper

2

18

XL ETFE

150° C

10

600

BMS13-48T10C02G012 -Type 10 Class 02 AWG 12

2

Tin Coated Annealed Copper

2

12

XL ETFE

150° C

10

600

BMS13-48T27C01G020 -Type 27 Class 01 Gauge 20

1

Tin Coated Annealed Copper

1

20

XL ETFE

150° C

27

600

BMS13-48T01C01G020 -Type 01 Class 01 Gauge 20

1

Tin Coated Annealed Copper

1

20

XL ETFE

150° C

1

600

BMS13-48T10C03G016 -Type 10 Class 03 Gauge 16

3

Tin Coated Annealed Copper

3

16

XL ETFE

150° C

10

600

BMS13-48T08C01G004 -Type 08 Class 01 Gauge 4

1

Tin Coated Annealed Copper

1

4

XL ETFE

150° C

8

600

BMS13-48T12C02G012 -Type 12 Class 02 AWG 12

2

Tin Coated Annealed Copper

2

12

XL ETFE

150° C

12

600

BMS13-48T01C01G022 -Type 01 Class 01 Gauge 22

1

Tin Coated Annealed Copper

1

22

XL ETFE

150° C

1

600

BMS13-48T08C03G020 -Type 08 Class 03 Gauge 20

3

Tin Coated Annealed Copper

3

20

XL ETFE

150° C

8

600

BMS13-48T08C03G024 -Type 08 Class 03 Gauge 24

3

Tin Coated Annealed Copper

3

24

XL ETFE

150° C

8

600

BMS13-48T53C02G020 -Type 53 Class 02 AWG 20

2

Nickel Coated High Strength Copper Alloy

2

20

XL ETFE

150° C

53

600

BMS13-48T12C01G016 -Type 12 Class 01 Gauge 16

1

Tin Coated Annealed Copper

1

16

XL ETFE

150° C

12

600

BMS13-48T13C01G024 -Type 13 Class 01 Gauge 24

1

Silver Coated High Strength Copper Alloy

1

24

XL ETFE

150° C

13

600

BMS13-48T12C01G018 -Type 12 Class 01 Gauge 18

1

Tin Coated Annealed Copper

1

18

XL ETFE

150° C

12

600

BMS13-48T01C01G018 -Type 01 Class 01 Gauge 18

1

Tin Coated Annealed Copper

1

18

XL ETFE

150° C

1

600

BMS13-48T10C02G024 -Type 10 Class 02 AWG 24

2

Tin Coated Annealed Copper

2

24

XL ETFE

150° C

10

600

BMS13-48T04C02G022 -Type 04 Class 02 AWG 22

2

Tin Coated Annealed Copper

2

22

XL ETFE

150° C

4

600

BMS13-48T01C01G024 -Type 01 Class 01 Gauge 24

1

Tin Coated Annealed Copper

1

24

XL ETFE

150° C

1

600

BMS13-48T15C03G014 -Type 15 Class 03 Gauge 14

3

Tin Coated Annealed Copper

3

14

XL ETFE

150° C

15

600

BMS13-48T24C01G022 -Type 24 Class 01 Gauge 22

1

Nickel Coated High Strength Copper Alloy

1

22

XL ETFE

150° C

24

600

BMS13-48T12C01G002 -Type 12 Class 01 Gauge 2

1

Tin Coated Annealed Copper

1

2

XL ETFE

150° C

12

600

BMS13-48T04C02G018 -Type 04 Class 02 AWG 18

2

Tin Coated Annealed Copper

2

18

XL ETFE

150° C

4

600

BMS13-48T04C02G020 -Type 04 Class 02 AWG 20

2

Tin Coated Annealed Copper

2

20

XL ETFE

150° C

4

600

BMS13-48T04C02G012 -Type 04 Class 02 AWG 12

2

Tin Coated Annealed Copper

2

12

XL ETFE

150° C

4

600

BMS13-48T04C02G016 -Type 04 Class 02 AWG 16

2

Tin Coated Annealed Copper

2

16

XL ETFE

150° C

4

600

BMS13-48T05C01G020 -Type 05 Class 01 Gauge 20

1

Silver Coated High Strength Copper Alloy

1

20

XL ETFE

150° C

5

600

BMS13-48T05C02G022 -Type 05 Class 02 AWG 22

2

Silver Coated High Strength Copper Alloy

2

22

XL ETFE

150° C

5

600

BMS13-48T06C01G020 -Type 06 Class 01 Gauge 20

1

Silver Coated High Strength Copper Alloy

1

20

XL ETFE

150° C

6

600

BMS13-48T06C01G024 -Type 06 Class 01 Gauge 24

1

Silver Coated High Strength Copper Alloy

1

24

XL ETFE

150° C

6

600

BMS13-48T06C02G020 -Type 06 Class 02 AWG 20

2

Silver Coated High Strength Copper Alloy

2

20

XL ETFE

150° C

6

600

BMS13-48T06C02G022 -Type 06 Class 02 AWG 22

2

Silver Coated High Strength Copper Alloy

2

22

XL ETFE

150° C

6

600

BMS13-48T06C02G024 -Type 06 Class 02 AWG 24

2

Silver Coated High Strength Copper Alloy

2

24

XL ETFE

150° C

6

600

BMS13-48T06C04G024 -Type 06 Class 04 AWG 24

4

Silver Coated High Strength Copper Alloy

4

24

XL ETFE

150° C

6

600

BMS13-48T6C4G24LM -Type 06 Class 04 AWG 24

4

Silver Coated High Strength Copper Alloy

4

24

XL ETFE

150° C

6

600

BMS13-48T08C01G002 -Type 08 Class 01 Gauge 2

1

Tin Coated Annealed Copper

1

2

XL ETFE

150° C

8

600

BMS13-48T01C03G022 -Type 01 Class 03 Gauge 22

3

Tin Coated Annealed Copper

3

22

XL ETFE

150° C

1

600

BMS13-48T03C01G012 -Type 03 Class 01 Gauge 12

1

Tin Coated Annealed Copper

1

12

XL ETFE

150° C

3

600

BMS13-48T03C01G014 -Type 03 Class 01 Gauge 14

1

Tin Coated Annealed Copper

1

14

XL ETFE

150° C

3

600

BMS13-48T03C04G020 -Type 03 Class 04 AWG 20

4

Tin Coated Annealed Copper

4

20

XL ETFE

150° C

3

600

BMS13-48T03C04G022 -Type 03 Class 04 AWG 22

4

Tin Coated Annealed Copper

4

22

XL ETFE

150° C

3

600

BMS13-48T03C02G024 -Type 03 Class 02 AWG 24

2

Tin Coated Annealed Copper

2

24

XL ETFE

150° C

3

600

BMS13-48T03C03G016 -Type 03 Class 03 Gauge 16

3

Tin Coated Annealed Copper

3

16

XL ETFE

150° C

3

600

BMS13-48T10C01G002 -Type 10 Class 01 Gauge 2

1

Tin Coated Annealed Copper

1

2

XL ETFE

150° C

10

600

BMS13-48T10C01G004 -Type 10 Class 01 Gauge 4

1

Tin Coated Annealed Copper

1

4

XL ETFE

150° C

10

600

BMS13-48T08C02G022 -Type 08 Class 02 AWG 22

2

Tin Coated Annealed Copper

2

22

XL ETFE

150° C

8

600

BMS13-48T08C02G024 -Type 08 Class 02 AWG 24

2

Tin Coated Annealed Copper

2

24

XL ETFE

150° C

8

600

BMS13-48T08C03G008 -Type 08 Class 03 Gauge 8

3

Tin Coated Annealed Copper

3

8

XL ETFE

150° C

8

600

BMS13-48T08C03G012 -Type 08 Class 03 Gauge 12

3

Tin Coated Annealed Copper

3

12

XL ETFE

150° C

8

600

BMS13-48T08C02G010 -Type 08 Class 02 AWG 10

2

Tin Coated Annealed Copper

2

10

XL ETFE

150° C

8

600

BMS13-48T08C02G018 -Type 08 Class 02 AWG 18

2

Tin Coated Annealed Copper

2

18

XL ETFE

150° C

8

600

BMS13-48T08C01G014 -Type 08 Class 01 Gauge 14

1

Tin Coated Annealed Copper

1

14

XL ETFE

150° C

8

600

BMS13-48T8C1G18-0 -Type 08 Class 01 Gauge 18

1

Tin Coated Annealed Copper

1

18

XL ETFE

150° C

8

600

BMS13-48T10C1G18LM -Type 10 Class 01 Gauge 18

1

Tin Coated Annealed Copper

1

18

XL ETFE

150° C

10

600

BMS13-48T10C1G16LM -Type 10 Class 01 Gauge 16

1

Tin Coated Annealed Copper

1

16

XL ETFE

150° C

10

600

BMS13-48T10C02G016 -Type 10 Class 02 AWG 16

2

Tin Coated Annealed Copper

2

16

XL ETFE

150° C

10

600

BMS13-48T10C01G1/0 -Type 10 Class 01 Gauge 36526

1

Tin Coated Annealed Copper

1

Jan-00

XL ETFE

150° C

10

600

BMS13-48T10C1G20LM -Type 10 Class 01 Gauge 20

1

Tin Coated Annealed Copper

1

20

XL ETFE

150° C

10

600

BMS13-48T10C1G22LM -Type 10 Class 01 Gauge 22

1

Tin Coated Annealed Copper

1

22

XL ETFE

150° C

10

600

BMS13-48T12C01G012 -Type 12 Class 01 Gauge 12

1

Tin Coated Annealed Copper

1

12

XL ETFE

150° C

12

600

BMS13-48T11C03G024 -Type 11 Class 03 Gauge 24

3

Silver Coated High Strength Copper Alloy

3

24

XL ETFE

150° C

11

600

BMS13-48T11C04G024 -Type 11 Class 04 AWG 24

4

Silver Coated High Strength Copper Alloy

4

24

XL ETFE

150° C

11

600

BMS13-48T12C02G016 -Type 12 Class 02 AWG 16

2

Tin Coated Annealed Copper

2

16

XL ETFE

150° C

12

600

BMS13-48T12C02G018 -Type 12 Class 02 AWG 18

2

Tin Coated Annealed Copper

2

18

XL ETFE

150° C

12

600

BMS13-48T12C03G012 -Type 12 Class 03 Gauge 12

3

Tin Coated Annealed Copper

3

12

XL ETFE

150° C

12

600

BMS13-48T12C03G016 -Type 12 Class 03 Gauge 16

3

Tin Coated Annealed Copper

3

16

XL ETFE

150° C

12

600

BMS13-48T12C03G018 -Type 12 Class 03 Gauge 18

3

Tin Coated Annealed Copper

3

18

XL ETFE

150° C

12

600

BMS13-48T10C2G22LM -Type 10 Class 02 AWG 22

2

Tin Coated Annealed Copper

2

22

XL ETFE

150° C

10

600

BMS13-48T10C04G020 -Type 10 Class 04 AWG 20

4

Tin Coated Annealed Copper

4

20

XL ETFE

150° C

10

600

BMS13-48T10C04G022 -Type 10 Class 04 AWG 22

4

Tin Coated Annealed Copper

4

22

XL ETFE

150° C

10

600

BMS13-48T10C05G022 -Type 10 Class 05 Gauge 22

5

Tin Coated Annealed Copper

5

22

XL ETFE

150° C

10

600

BMS13-48T11C01G020 -Type 11 Class 01 Gauge 20

1

Silver Coated High Strength Copper Alloy

1

20

XL ETFE

150° C

11

600

BMS13-48T11C02G020 -Type 11 Class 02 AWG 20

2

Silver Coated High Strength Copper Alloy

2

20

XL ETFE

150° C

11

600

BMS13-48T11C02G022 -Type 11 Class 02 AWG 22

2

Silver Coated High Strength Copper Alloy

2

22

XL ETFE

150° C

11

600

BMS13-48T15C03G016 -Type 15 Class 03 Gauge 16

3

Tin Coated Annealed Copper

3

16

XL ETFE

150° C

15

600

BMS13-48T15C03G020 -Type 15 Class 03 Gauge 20

3

Tin Coated Annealed Copper

3

20

XL ETFE

150° C

15

600

BMS13-48T15C03G022 -Type 15 Class 03 Gauge 22

3

Tin Coated Annealed Copper

3

22

XL ETFE

150° C

15

600

BMS13-48T12C03G024 -Type 12 Class 03 Gauge 24

3

Tin Coated Annealed Copper

3

24

XL ETFE

150° C

12

600

BMS13-48T12C04G016 -Type 12 Class 04 AWG 16

4

Tin Coated Annealed Copper

4

16

XL ETFE

150° C

12

600

BMS13-48T13C02G018 -Type 13 Class 02 AWG 18

2

Silver Coated High Strength Copper Alloy

2

18

XL ETFE

150° C

13

600

BMS13-48T13C03G018 -Type 13 Class 03 Gauge 18

3

Silver Coated High Strength Copper Alloy

3

18

XL ETFE

150° C

13

600

BMS13-48T13C03G024 -Type 13 Class 03 Gauge 24

3

Silver Coated High Strength Copper Alloy

3

24

XL ETFE

150° C

13

600

BMS13-48T14C02G018 -Type 14 Class 02 AWG 18

2

Tin Coated Annealed Copper

2

18

XL ETFE

150° C

14

600

BMS13-48T14C02G020 -Type 14 Class 02 AWG 20

2

Tin Coated Annealed Copper

2

20

XL ETFE

150° C

14

600

BMS13-48T15C02G022 -Type 15 Class 02 AWG 22

2

Tin Coated Annealed Copper

2

22

XL ETFE

150° C

15

600

BMS13-48T15C04G022 -Type 15 Class 04 AWG 22

4

Tin Coated Annealed Copper

4

22

XL ETFE

150° C

15

600

BMS13-48T16C01G020 -Type 16 Class 01 Gauge 20

1

Tin Coated Annealed Copper

1

20

XL ETFE

150° C

16

600

BMS13-48T16C1G20-4 -Type 16 Class 01 Gauge 20

1

Tin Coated Annealed Copper

1

20

XL ETFE

150° C

16

600

BMS13-48T16C02G016 -Type 16 Class 02 AWG 16

2

Tin Coated Annealed Copper

2

16

XL ETFE

150° C

16

600

BMS13-48T22C01G016 -Type 22 Class 01 Gauge 16

1

Nickel Coated High Strength Copper Alloy

1

16

XL ETFE

150° C

22

600

BMS13-48T22C01G018 -Type 22 Class 01 Gauge 18

1

Nickel Coated High Strength Copper Alloy

1

18

XL ETFE

150° C

22

600

BMS13-48T22C02G016 -Type 22 Class 02 AWG 16

2

Nickel Coated High Strength Copper Alloy

2

16

XL ETFE

150° C

22

600

BMS13-48T24C01G018 -Type 24 Class 01 Gauge 18

1

Nickel Coated High Strength Copper Alloy

1

18

XL ETFE

150° C

24

600

BMS13-48T24C02G022 -Type 24 Class 02 AWG 22

2

Nickel Coated High Strength Copper Alloy

2

22

XL ETFE

150° C

24

600

BMS13-48T25C01G016 -Type 25 Class 01 Gauge 16

1

Tin Coated Annealed Copper

1

16

XL ETFE

150° C

25

600

BMS13-48T25C01G018 -Type 25 Class 01 Gauge 18

1

Tin Coated Annealed Copper

1

18

XL ETFE

150° C

25

600

BMS13-48T25C01G020 -Type 25 Class 01 Gauge 20

1

Tin Coated Annealed Copper

1

20

XL ETFE

150° C

25

600

BMS13-48T25C01G022 -Type 25 Class 01 Gauge 22

1

Tin Coated Annealed Copper

1

22

XL ETFE

150° C

25

600

BMS13-48T25C02G016 -Type 25 Class 02 AWG 16

2

Tin Coated Annealed Copper

2

16

XL ETFE

150° C

25

600

BMS13-48T25C02G018 -Type 25 Class 02 AWG 18

2

Tin Coated Annealed Copper

2

18

XL ETFE

150° C

25

600

BMS13-48T25C02G020 -Type 25 Class 02 AWG 20

2

Tin Coated Annealed Copper

2

20

XL ETFE

150° C

25

600

BMS13-48T25C02G022 -Type 25 Class 02 AWG 22

2

Tin Coated Annealed Copper

2

22

XL ETFE

150° C

25

600

BMS13-48T25C02G024 -Type 25 Class 02 AWG 24

2

Tin Coated Annealed Copper

2

24

XL ETFE

150° C

25

600

BMS13-48T25C03G016 -Type 25 Class 03 Gauge 16

3

Tin Coated Annealed Copper

3

16

XL ETFE

150° C

25

600

BMS13-48T25C03G018 -Type 25 Class 03 Gauge 18

3

Tin Coated Annealed Copper

3

18

XL ETFE

150° C

25

600

BMS13-48T25C03G020 -Type 25 Class 03 Gauge 20

3

Tin Coated Annealed Copper

3

20

XL ETFE

150° C

25

600

BMS13-48T25C03G022 -Type 25 Class 03 Gauge 22

3

Tin Coated Annealed Copper

3

22

XL ETFE

150° C

25

600

BMS13-48T24C01G024 -Type 24 Class 01 Gauge 24

1

Nickel Coated High Strength Copper Alloy

1

24

XL ETFE

150° C

24

600

BMS13-48T24C02G018 -Type 24 Class 02 AWG 18

2

Nickel Coated High Strength Copper Alloy

2

18

XL ETFE

150° C

24

600

BMS13-48T12C04G024 -Type 12 Class 04 AWG 24

4

Tin Coated Annealed Copper

4

24

XL ETFE

150° C

12

600

BMS13-48T25C04G022 -Type 25 Class 04 AWG 22

4

Tin Coated Annealed Copper

4

22

XL ETFE

150° C

25

600

BMS13-48T26C02G022 -Type 26 Class 02 AWG 22

2

Nickel Coated High Strength Copper Alloy

2

22

XL ETFE

150° C

26

600

BMS13-48T26C02G024 -Type 26 Class 02 AWG 24

2

Nickel Coated High Strength Copper Alloy

2

24

XL ETFE

150° C

26

600

BMS13-48T26C05G024 -Type 26 Class 05 Gauge 24

5

Nickel Coated High Strength Copper Alloy

5

24

XL ETFE

150° C

26

600

BMS13-48T27C02G020 -Type 27 Class 02 AWG 20

2

Tin Coated Annealed Copper

2

20

XL ETFE

150° C

27

600

BMS13-48T28C03G024 -Type 28 Class 03 Gauge 24

3

Silver Coated High Strength Copper Alloy

3

24

XL ETFE

150° C

28

600

BMS13-48T28C04G024 -Type 28 Class 04 AWG 24

4

Silver Coated High Strength Copper Alloy

4

24

XL ETFE

150° C

28

600

BMS13-48T28C05G024 -Type 28 Class 05 Gauge 24

5

Silver Coated High Strength Copper Alloy

5

24

XL ETFE

150° C

28

600

BMS13-48T32C01G020 -Type 32 Class 01 Gauge 20

1

Nickel Coated High Strength Copper Alloy

1

20

XL ETFE

150° C

32

600

BMS13-48T53C02G022 -Type 53 Class 02 AWG 22

2

Nickel Coated High Strength Copper Alloy

2

22

XL ETFE

150° C

53

600

BMS13-48T53C03G020 -Type 53 Class 03 Gauge 20

3

Nickel Coated High Strength Copper Alloy

3

20

XL ETFE

150° C

53

600

BMS13-48T53C03G022 -Type 53 Class 03 Gauge 22

3

Nickel Coated High Strength Copper Alloy

3

22

XL ETFE

150° C

53

600

BMS13-48T53C04G020 -Type 53 Class 04 AWG 20

4

Nickel Coated High Strength Copper Alloy

4

20

XL ETFE

150° C

53

600

BMS13-48T61C01G008 -Type 61 Class 01 Gauge 8

1

Nickel Coated Annealed Copper

1

8

XL ETFE

150° C

61

600

BMS13-48T61C01G016 -Type 61 Class 01 Gauge 16

1

Nickel Coated Annealed Copper

1

16

XL ETFE

150° C

61

600

BMS13-48T61C02G016 -Type 61 Class 02 AWG 16

2

Nickel Coated Annealed Copper

2

16

XL ETFE

150° C

61

600

BMS13-48T61C03G008 -Type 61 Class 03 Gauge 8

3

Nickel Coated Annealed Copper

3

8

XL ETFE

150° C

61

600

BMS13-48T32C02G020 -Type 32 Class 02 AWG 20

2

Nickel Coated High Strength Copper Alloy

2

20

XL ETFE

150° C

32

600

BMS13-48T27C03G022 -Type 27 Class 03 Gauge 22

3

Tin Coated Annealed Copper

3

22

XL ETFE

150° C

27

600

BMS13-48T28C01G024 -Type 28 Class 01 Gauge 24

1

Silver Coated High Strength Copper Alloy

1

24

XL ETFE

150° C

28

600

BMS13-48T32C04G020 -Type 32 Class 04 AWG 20

4

Nickel Coated High Strength Copper Alloy

4

20

XL ETFE

150° C

32

600

BMS13-48T35C01G022 -Type 35 Class 01 Gauge 22

1

Silver Coated Annealed Copper

1

22

XL ETFE

150° C

35

600

BMS13-48T53C01G020 -Type 53 Class 01 Gauge 20

1

Nickel Coated High Strength Copper Alloy

1

20

XL ETFE

150° C

53

600

BMS13-48T53C01G022 -Type 53 Class 01 Gauge 22

1

Nickel Coated High Strength Copper Alloy

1

22

XL ETFE

150° C

53

600

BMS13-48T53C02G016 -Type 53 Class 02 AWG 16

2

Nickel Coated High Strength Copper Alloy

2

16

XL ETFE

150° C

53

600

BMS13-48T32C03G020 -Type 32 Class 03 Gauge 20

3

Nickel Coated High Strength Copper Alloy

3

20

XL ETFE

150° C

32

600



Part Number

Specifications

Nom. Insul. Thick. (in)

BMS13-48T01

AWG Range of 10 to 24 with 1 to 5 Conductors

0.006

BMS13-48T02

AWG Range of 16 to 24 with 1 to 5 Conductors

0.006

BMS13-48T03

AWG Range of 10 to 24 with 1 to 5 Conductors

0.006

BMS13-48T04

AWG Range of 12 to 24 with 2 to 5 Conductors

0.006

BMS13-48T05

AWG Range of 16 to 24 with 1 to 5 Conductors

0.006

BMS13-48T06

AWG Range of 16 to 24 with 1 to 5 Conductors

0.006

BMS13-48T07

AWG Range of 16 to 24 with 2 to 5 Conductors

0.006

BMS13-48T08

AWG Range of 4/0 to 24 with 1 to 6 Conductors

0.01

BMS13-48T09

AWG Range of 16 to 24 with 1 to 6 Conductors

0.01

BMS13-48T10

AWG Range of 4/0 to 24 with 1 to 7 Conductors

0.008

BMS13-48T11

AWG Range of 16 to 24 with 1 to 6 Conductors

0.008

BMS13-48T12

AWG Range of 8 to 24 with 1 to 4 Conductors

0.008

BMS13-48T13

AWG Range of 16 to 24 with 1 to 6 Conductors

0.008

BMS13-48T14

AWG Range of 12 to 24 with 2 to 5 Conductors

0.008

BMS13-48T15

AWG Range of 12 to 24 with 1 to 4 Conductors

0.01

BMS13-48T16

AWG Range of 10 to 24 with 1 to 6 Conductors

0.015

BMS13-48T17

AWG Range of 12 to 24 with 2 to 5 Conductors

0.015

BMS13-48T18

AWG Range of 12 to 24 with 1 to 4 Conductors

0.015

BMS13-48T19

AWG Range of 16 to 24 with 1 to 6 Conductors

0.015

BMS13-48T20

AWG Range of 18 to 20 with 2 to 5 Conductors

0.015

BMS13-48T21

AWG Range of 18 to 20 with 1 to 4 Conductors

0.015

BMS13-48T22

AWG Range of 16 to 24 with 1 to 6 Conductors

0.015

BMS13-48T23

AWG Range of 16 to 24 with 1 to 6 Conductors

0.01

BMS13-48T24

AWG Range of 16 to 24 with 1 to 4 Conductors

0.01

BMS13-48T25

AWG Range of 12 to 24 with 1 to 5 Conductors

0.006

BMS13-48T26

AWG Range of 16 to 24 with 1 to 5 Conductors

0.006

BMS13-48T27

AWG Range of 12 to 24 with 1 to 4 Conductors

0.008

BMS13-48T28

AWG Range of 16 to 24 with 1 to 5 Conductors

0.008

BMS13-48T29

AWG Range of 16 to 24 with 1 to 5 Conductors

0.006

BMS13-48T30

AWG Range of 16 to 24 with 2 to 5 Conductors

0.006

BMS13-48T31

AWG Range of 16 to 24 with 1 to 6 Conductors

0.008

BMS13-48T32

AWG Range of 16 to 24 with 1 to 6 Conductors

0.008

BMS13-48T33

AWG Range of 18 to 24 with 2 to 5 Conductors

0.015

BMS13-48T34

AWG Range of 18 to 24 with 1 to 4 Conductors

0.015

BMS13-48T35

AWG Range of 12 to 24 with 1 to 6 Conductors

0.008

BMS13-48T36

AWG Range of 12 to 24 with 1 to 6 Conductors

0.006



分享：
点击在线咨询
热线电话：0371-55365505
上一条：没有了

下一条：没有了
正版授权 全球直送 低价保证 全国领先 客户信赖 技术支持 金牌客服
Coryright 三博电子 版权所有 All Right Reseved 豫ICP备15011473号
公司地址：郑州市中原区航海西路25号民安西上7号楼1单元605 网址：http://www.hnsanbo.cn
热线电话： 0371-55365505  传真：0371-86257077 邮箱：hnsanbo@163.com sales@hnsanbo.cn yunpeng.wu@hnsanbo.cn

豫公网安备 41010202002363号
